NRF51824 Series
Manufacturer: Nordic Semiconductor ASA
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K

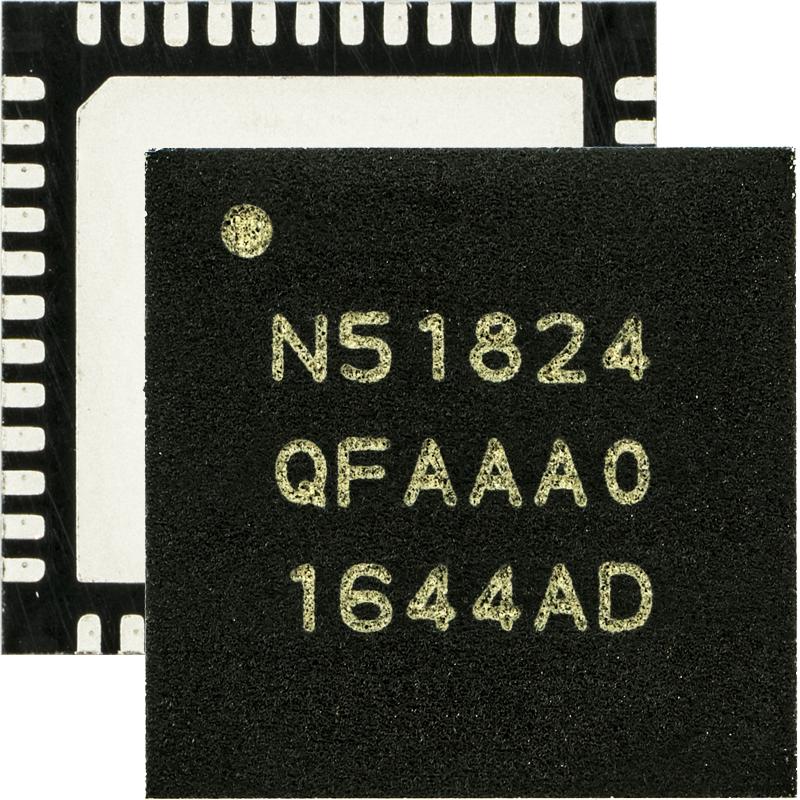

BLUETOOTH V4.2 SMART SOC 2MBPS 3V AUTOMOTIVE AEC-Q100 48-PIN QFN EP TRAY
| Part | Memory Size (SRAM) | Memory Type | Memory Size (Flash) | Sensitivity | Modulation | Mounting Type | Current - Receiving (Max) | Current - Receiving (Min) | RF Family/Standard | Serial Interfaces | Current - Transmitting (Min) | Current - Transmitting (Max) | Operating Temperature (Min) | Operating Temperature (Max) | Data Rate (Max) | Package / Case | Type | GPIO Count | Package Length | Package Name | Package Width | Voltage - Supply (Minimum) | Voltage - Supply (Maximum) | Power - Output | Protocol | Frequency | Current - Receiving | Current - Transmitting |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Nordic Semiconductor ASA | 16 kB | Flash SRAM | 256 KB | -96 dBm | GFSK | Surface Mount | 13.4 mA | 8.7 mA | Bluetooth | I2C SPI UART USB | 4.7 mA | 16 mA | -40 °C | 105 °C | 2 MBaud | 48-VFQFN Exposed Pad | TxRx Only | 31 | 6 mm | 48-QFN | 6 mm | 1.9 V | 3.6 V | 4 dBm | Bluetooth v4.0 | 2.4 GHz | ||
Nordic Semiconductor ASA | 16 kB | Flash SRAM | 256 KB | -96 dBm | Surface Mount | Bluetooth | I2C SPI UART USB | -40 °C | 105 °C | 2 MBaud | 48-VFQFN Exposed Pad | TxRx Only | 31 | 6 mm | 48-QFN | 6 mm | 1.9 V | 3.6 V | 4 dBm | Bluetooth v4.0 | 2.4 GHz | 13.4 mA | 16 mA | |||||
 Nordic Semiconductor ASA | 16 kB | Flash SRAM | 256 KB | -96 dBm | GFSK | Surface Mount | 13.4 mA | 8.7 mA | Bluetooth | I2C SPI UART USB | 4.7 mA | 16 mA | -40 °C | 105 °C | 2 MBaud | 48-VFQFN Exposed Pad | TxRx Only | 31 | 6 mm | 48-QFN | 6 mm | 1.9 V | 3.6 V | 4 dBm | Bluetooth v4.0 | 2.4 GHz |
