HD1S040H Series

Catalog

CONN RCPT 40P 0.02 GOLD SMD R/A

Part	Insulation Material	Contact Material	Applications	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Features	Number of Rows	Contact Finish - Post	Contact Finish - Mating	Insulation Height [z]	Insulation Height [z]	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Termination	Pitch - Mating	Pitch - Mating	Contact Type	Fastening Type	Voltage Rating	Style	Number of Positions Loaded	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]

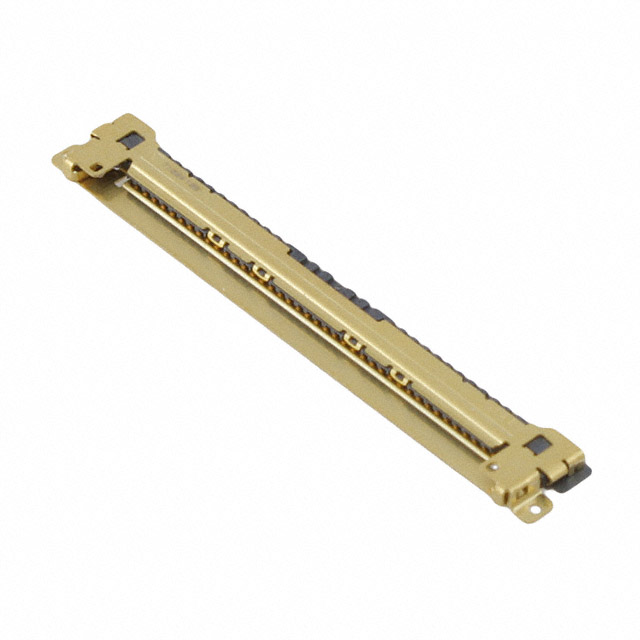

JAE Electronics HD1S040HA1R6000	Plastic Halogen Free	Copper Alloy	General Purpose	1.25 µin	0.032 µm	Shielded Solder Retention	1	Gold	Gold	1 mm	0.039 in	Right Angle Surface Mount	3.9 µin	0.099 µm	Receptacle	Solder	0.5 mm	0.02 in	Outer Shroud Contact	Detent Lock	100 V	Board to Cable/Wire	All	40	85 °C	-40 C
