C14610F015 Series

Catalog

CONN BASE BOTTOM ENTRY SZA10

Part	Style	Size	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Min]	Operating Temperature [Max]	Lock Location	Connector Type	Housing Material	Ingress Protection	Features	Thread Size

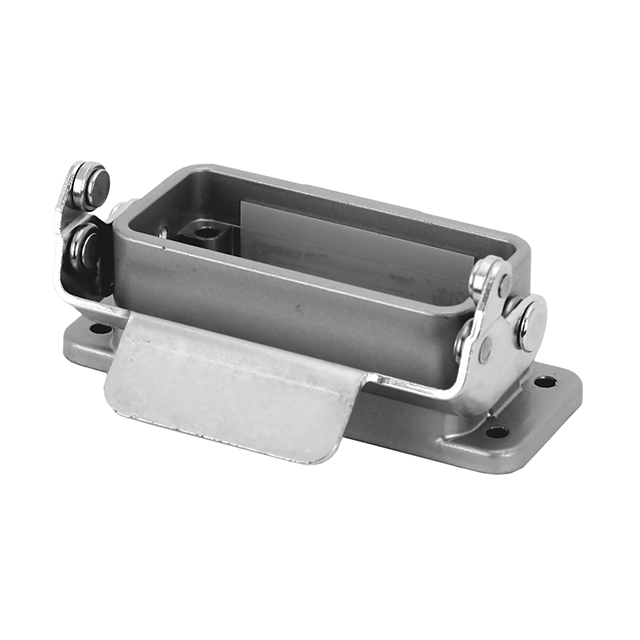

Amphenol Tuchel Industrial C14610F0150002	Bottom Entry	A10	29.5 mm	26 mm	81 mm	1.024 "	1.161 in	3.189 in	-40 C	100 °C	Locking Clip (1) on Base Bottom	Base - Panel Mount	Aluminum Alloy Die Cast	IP65 - Dust Tight Water Resistant

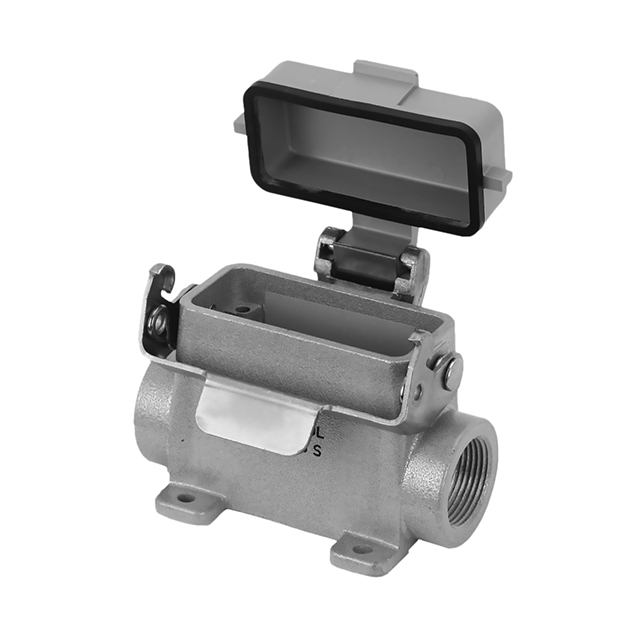

Amphenol Tuchel Industrial C14610F0158062	Side Entry	A10	50 mm	52 mm	84 mm	2.047 "	1.969 in	3.307 "	-40 C	100 °C	Locking Clip (1) on Base Bottom	Base - Box Mount	Aluminum Alloy Die Cast	IP65 - Dust Tight Water Resistant	Cover	PG21
Amphenol Tuchel Industrial C14610F0156072	Side Entry	A10	50 mm	52 mm	84 mm	2.047 "	1.969 in	3.307 "	-40 C	100 °C	Locking Clip (1) on Base Bottom	Base - Box Mount	Aluminum Alloy Die Cast	IP65 - Dust Tight Water Resistant		PG16
