3345W Series

Catalog

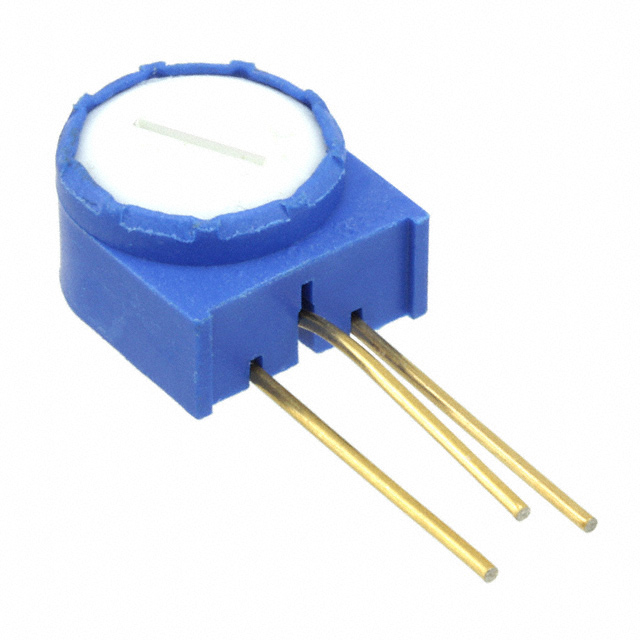

RES WIREWOUND TRIMMER 10K OHM 5% 1W 1(ELEC)/1(MECH)TURN 5.97MM (12.57 X 8.78 X 13.97MM) PIN THRU-HOLE BAG

Part	Power (Watts)	Mounting Type	Resistance	Termination	Tolerance	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension	Size / Dimension [z]	Size / Dimension [z]	Adjustment Type	Number of Turns	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Termination Style	Resistive Material	Temperature Coefficient
Bourns Inc. 3345W-1-103T	1 W	Through Hole	10000 Ohms	PC Pins	5 %	12.57 mm	0.495 "	Round	13.97 mm	0.55 in	Side Adjustment	1
Bourns Inc. 3345W-1-502	1 W	Through Hole	5 kOhms		5 %						Side Adjustment	1	13.34 mm	0.525 in	0.45 in	11.43 mm	PC Pins	Wirewound	50 ppm/░C
Bourns Inc. 3345W-1-200	1 W	Through Hole	20 Ohms		5 %						Side Adjustment	1	13.34 mm	0.525 in	0.45 in	11.43 mm	PC Pins	Wirewound	50 ppm/░C
Bourns Inc. 3345W-1-202T	1 W	Through Hole	2 kOhms	PC Pins	5 %	12.57 mm	0.495 "	Round	13.97 mm	0.55 in	Side Adjustment	1
Bourns Inc. 3345W-1-253T	1 W	Through Hole	25 kOhms	PC Pins	5 %	12.57 mm	0.495 "	Round	13.97 mm	0.55 in	Side Adjustment	1
Bourns Inc. 3345W-1-102	1 W	Through Hole	1000 Ohms		5 %						Side Adjustment	1	13.34 mm	0.525 in	0.45 in	11.43 mm	PC Pins	Wirewound	50 ppm/░C
Bourns Inc. 3345W-1-101T	1 W	Through Hole	100 Ohms	PC Pins	5 %	12.57 mm	0.495 "	Round	13.97 mm	0.55 in	Side Adjustment	1
Bourns Inc. 3345W-1-201	1 W	Through Hole	200 Ohms		5 %						Side Adjustment	1	13.34 mm	0.525 in	0.45 in	11.43 mm	PC Pins	Wirewound	50 ppm/░C
Bourns Inc. 3345W-1-100	1 W	Through Hole	10 Ohms		5 %						Side Adjustment	1	13.34 mm	0.525 in	0.45 in	11.43 mm	PC Pins	Wirewound	50 ppm/░C
Bourns Inc. 3345W-1-500	1 W	Through Hole	50 Ohms		5 %						Side Adjustment	1	13.34 mm	0.525 in	0.45 in	11.43 mm	PC Pins	Wirewound	50 ppm/░C
