MB2181S Series

Catalog

SWITCH PUSHBUTTON 4PDT 6A 125V

Part	Mechanical Life	Electrical Life	Panel Cutout Dimensions [diameter]	Voltage Rating - AC	Mounting Type	Actuator Type	Features	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - DC	Switch Function	Current Rating (Amps)	Termination Style	Type	Actuator Marking	Color - Actuator/Cap	Ingress Protection

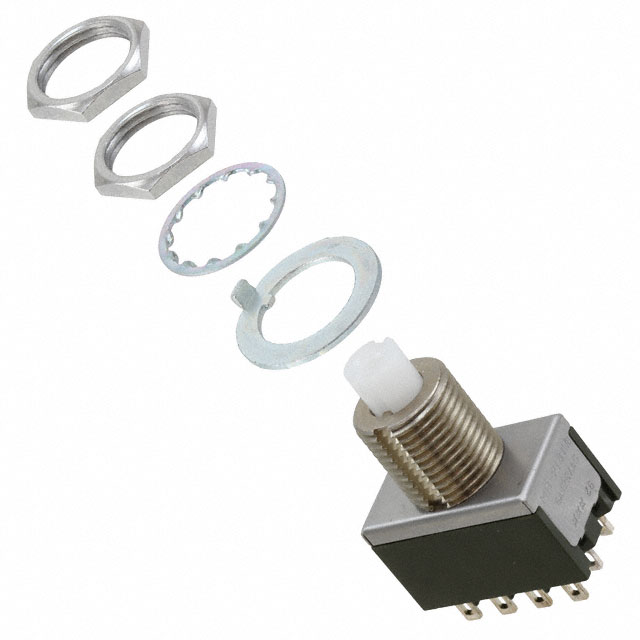

NKK Switches MB2181SB1W01	100000 Cycles	25000 Steps	12.5 mm	125 V	Panel Mount Rear	Plunger for Cap	Epoxy Sealed Terminals	4PDT	85 °C	-30 ░C	30 V	On-Mom	3 A 6 A	Solder Lug	Standard	No Marking
NKK Switches MB2181SS1G01-BA	100000 Cycles	50000 Cycles	6.5 mm	28 V	Panel Mount Rear	Button Round	Epoxy Sealed Terminals	4PDT	85 °C	-30 ░C	28 V	On-Mom	0.4 VA	Solder Lug	Standard	No Marking	Black
NKK Switches MB2181SB1W01-4C-A	100000 Cycles	25000 Steps	12.5 mm	125 V	Panel Mount Rear	Button Round	Epoxy Sealed Terminals	4PDT	85 °C	-30 ░C	30 V	On-Mom	3 A 6 A	Solder Lug	Standard	No Marking	Red
NKK Switches MB2181SB3G01-DA	50000 Cycles	50000 Cycles	12.5 mm	28 V	Panel Mount Rear	Button Round	Epoxy Sealed Terminals	4PDT	85 °C	-30 ░C	28 V	On-Mom	0.4 VA	Solder Lug	Standard	No Marking	Black	IP67 - Dust Tight Waterproof
NKK Switches MB2181SS1W03-CC	100000 Cycles	25000 Steps	6.5 mm	125 V	Panel Mount Rear	Button Round	Epoxy Sealed Terminals	4PDT	85 °C	-30 ░C	30 V	On-Mom	3 A 6 A	PC Pin	Standard	No Marking	Red

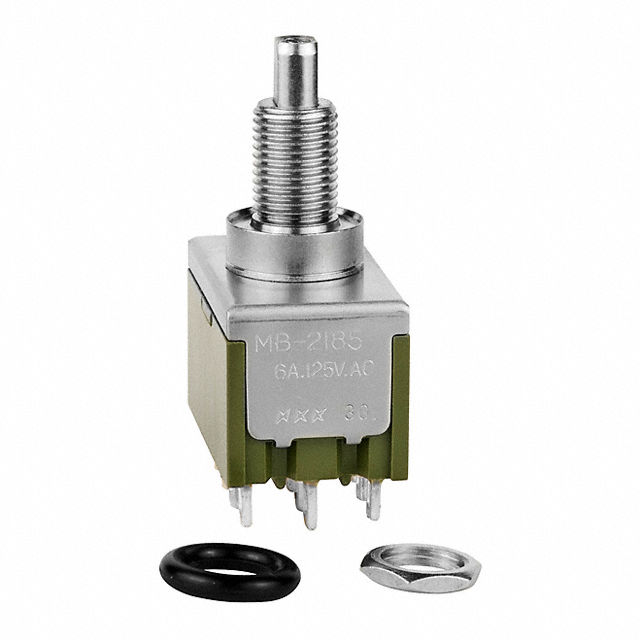

NKK Switches MB2181SS1W03	100000 Cycles	25000 Steps	6.5 mm	125 V	Panel Mount Rear	Plunger for Cap	Epoxy Sealed Terminals	4PDT	85 °C	-30 ░C	30 V	On-Mom	3 A 6 A	PC Pin	Standard	No Marking

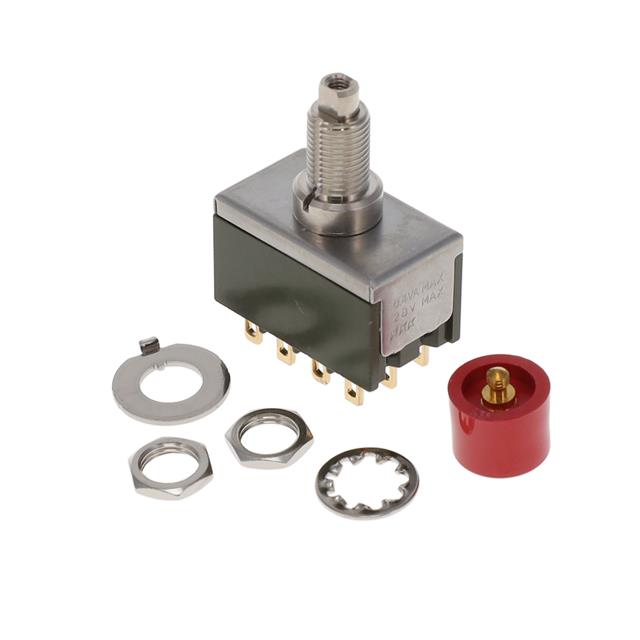

NKK Switches MB2181SS1G01-CC	100000 Cycles	50000 Cycles	6.5 mm	28 V	Panel Mount Rear	Button Round	Epoxy Sealed Terminals	4PDT	85 °C	-30 ░C	28 V	On-Mom	0.4 VA	Solder Lug	Standard	No Marking	Red
NKK Switches MB2181SS1G01	100000 Cycles	50000 Cycles	6.5 mm	28 V	Panel Mount Rear	Plunger for Cap	Epoxy Sealed Terminals	4PDT	85 °C	-30 ░C	28 V	On-Mom	0.4 VA	Solder Lug	Standard	No Marking
NKK Switches MB2181SB1W01-DC	100000 Cycles	25000 Steps	12.5 mm	125 V	Panel Mount Rear	Button Round	Epoxy Sealed Terminals	4PDT	85 °C	-30 ░C	30 V	On-Mom	3 A 6 A	Solder Lug	Standard	No Marking	Red
NKK Switches MB2181SB1W01-4B-A	100000 Cycles	25000 Steps	12.5 mm	125 V	Panel Mount Rear	Button Round	Epoxy Sealed Terminals	4PDT	85 °C	-30 ░C	30 V	On-Mom	3 A 6 A	Solder Lug	Standard	No Marking	White
