T38020 Series
Manufacturer: Curtis Industries
Beta
⌘K
CONN BARRIER STRP 13CIRC 0.375"
| Part | Material Flammability Rating | Terminal Block Type | Wire Gauge [Min] | Wire Gauge [Max] | Material - Insulation | Terminal Screw Finish | Current Rating (Amps) | Bottom Termination | Top Termination | Features | Number of Wire Entries | Number of Circuits | Pitch [x] | Pitch [x] | Mounting Type | Number of Rows | Terminal Screw Material | Operating Temperature | Barrier Type | Voltage Rating | Number of Wire Entries [custom] | Number of Circuits [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

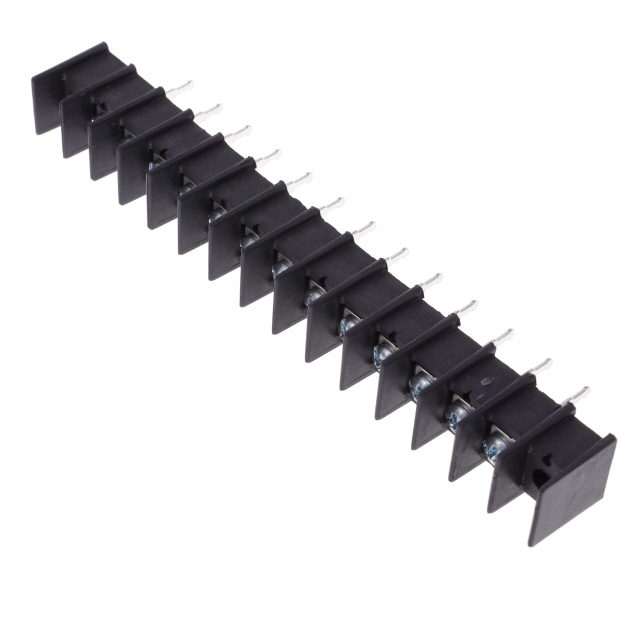

 Curtis Industries | UL94 V-0 | Barrier Block | 12 AWG | 22 AWG | Polypropylene (PP) | Nickel | 20 A | Solder Turret | Screws | Flange | 13 | 13 | 9.53 mm | 0.375 in | Chassis Panel | 1 | Steel | 105 C | 2 Wall (Dual) | 300 VDC | ||
Curtis Industries | UL94 V-0 | Barrier Block | 12 AWG | 22 AWG | Polypropylene (PP) | Nickel | 20 A | Solder Turret | Screws | Flange | 23 | 9.53 mm | 0.375 in | Chassis Panel | 1 | Steel | 105 C | 2 Wall (Dual) | 300 VDC | 23 | ||
Curtis Industries | UL94 V-0 | Barrier Block | 12 AWG | 22 AWG | Polypropylene (PP) | Nickel | 20 A | Solder Turret | Screws | Flange | 1 | Chassis Panel | 1 | Steel | 105 C | 2 Wall (Dual) | 300 VDC | 1 | ||||
Curtis Industries | UL94 V-0 | Barrier Block | 12 AWG | 22 AWG | Polypropylene (PP) | Nickel | 20 A | Solder Turret | Screws | Flange | 19 | 19 | 9.53 mm | 0.375 in | Chassis Panel | 1 | Steel | 105 C | 2 Wall (Dual) | 300 VDC | ||
Curtis Industries | UL94 V-0 | Barrier Block | 12 AWG | 22 AWG | Polypropylene (PP) | Nickel | 20 A | Solder Turret | Screws | Flange | 9 | 9.53 mm | 0.375 in | Chassis Panel | 1 | Steel | 105 C | 2 Wall (Dual) | 300 VDC | |||
Curtis Industries | UL94 V-0 | Barrier Block | 12 AWG | 22 AWG | Polypropylene (PP) | Nickel | 20 A | Solder Turret | Screws | Flange | 21 | 21 | 9.53 mm | 0.375 in | Chassis Panel | 1 | Steel | 105 C | 2 Wall (Dual) | 300 VDC | ||

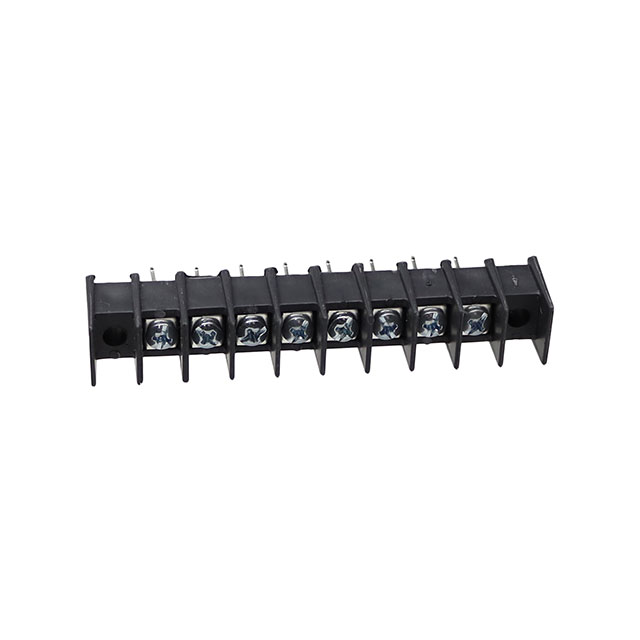

 Curtis Industries | UL94 V-0 | Barrier Block | 12 AWG | 22 AWG | Polypropylene (PP) | Nickel | 20 A | Solder Turret | Screws | Flange | 8 | 9.53 mm | 0.375 in | Chassis Panel | 1 | Steel | 105 C | 2 Wall (Dual) | 300 VDC | 8 | ||

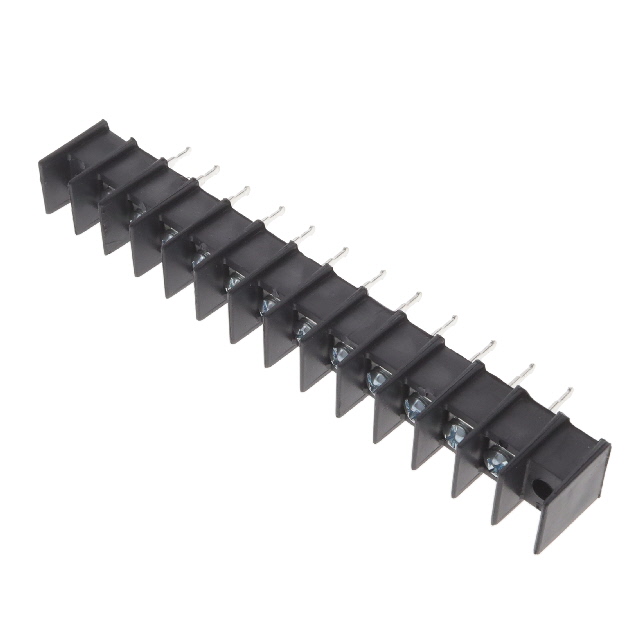

 Curtis Industries | UL94 V-0 | Barrier Block | 12 AWG | 22 AWG | Polypropylene (PP) | Nickel | 20 A | Solder Turret | Screws | Flange | 12 | 12 | 9.53 mm | 0.375 in | Chassis Panel | 1 | Steel | 105 C | 2 Wall (Dual) | 300 VDC | ||
Curtis Industries | UL94 V-0 | Barrier Block | 12 AWG | 22 AWG | Polypropylene (PP) | Nickel | 20 A | Solder Turret | Screws | Flange | 11 | 11 | 9.53 mm | 0.375 in | Chassis Panel | 1 | Steel | 105 C | 2 Wall (Dual) | 300 VDC | ||
Curtis Industries | UL94 V-0 | Barrier Block | 12 AWG | 22 AWG | Polypropylene (PP) | Nickel | 20 A | Solder Turret | Screws | Flange | 26 | 26 | 9.53 mm | 0.375 in | Chassis Panel | 1 | Steel | 105 C | 2 Wall (Dual) | 300 VDC |
