PNA1801 Series

Catalog

SENSOR PHOTO 800NM TOP VIEW T1

Part	Orientation	Wavelength	Power - Max [Max]	Mounting Type	Voltage - Collector Emitter Breakdown (Max) [Max]	Viewing Angle	Package / Case	Current - Collector (Ic) (Max) [Max]	Current - Dark (Id) (Max) [Max]

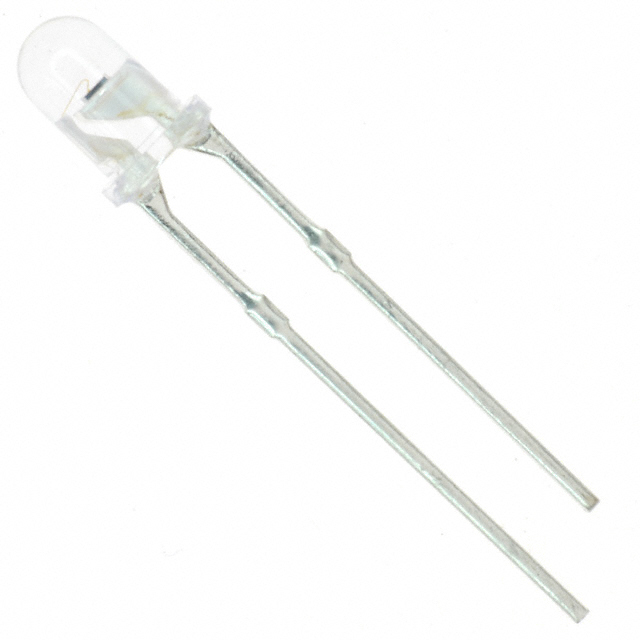

Panasonic Electronic Components PNA1801LS	Top View	800 nm	100 mW	Through Hole	30 V	60 °	T-1	20 mA	500 nA

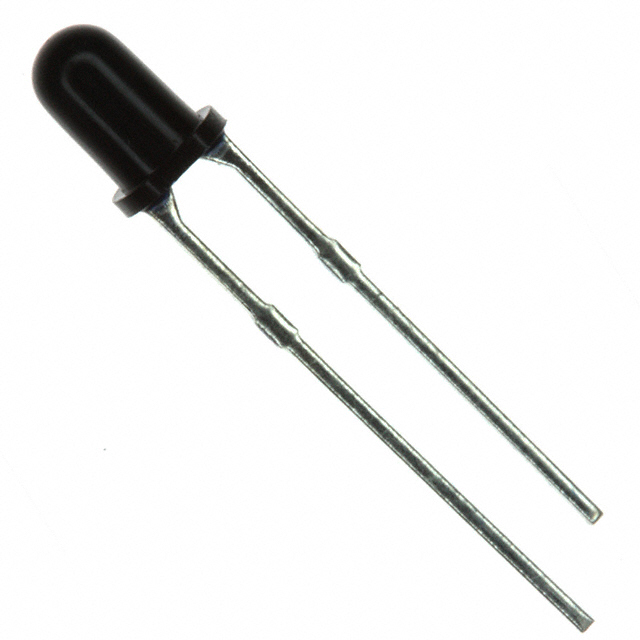

Panasonic Electronic Components PNA1801LS0NC	Top View	800 nm	100 mW	Through Hole	30 V	60 °	T-1	20 mA	500 nA
