PR20B04H Series
Manufacturer: METZ CONNECT USA Inc.
Beta
⌘K
PIN HEADER, THR, SINGLE ROW, 1.2
| Part | Connector Type | Pitch - Mating | Pitch - Mating | Contact Shape | Number of Positions Loaded | Insulation Color | Insulation Height | Insulation Height | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Number of Positions | Contact Length - Post [custom] | Contact Length - Post | Termination | Contact Finish - Mating | Contact Length - Mating | Contact Length - Mating | Number of Rows | Contact Finish Thickness - Mating | Shrouding | Mounting Type | Fastening Type | Contact Material | Insulation Material | Number of Rows [custom] | Row Spacing - Mating | Row Spacing - Mating | Insulation Height [z] | Insulation Height [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

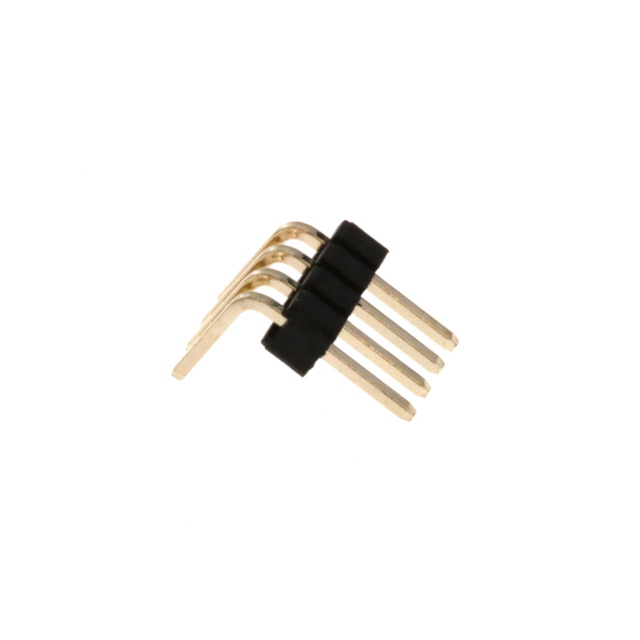

 METZ CONNECT USA Inc. | Header | 1.27 mm | 0.05 in | Square | All | Black | 0.059 in | 1.5 mm | -40 C | 105 ░C | Male Pin | 4 | 0.11 in | 2.79 mm | Solder | Gold | 3 mm | 0.118 in | 1 | Flash | Unshrouded | Right Angle Through Hole | Push-Pull | Copper Zinc | Polyethylene | |||||

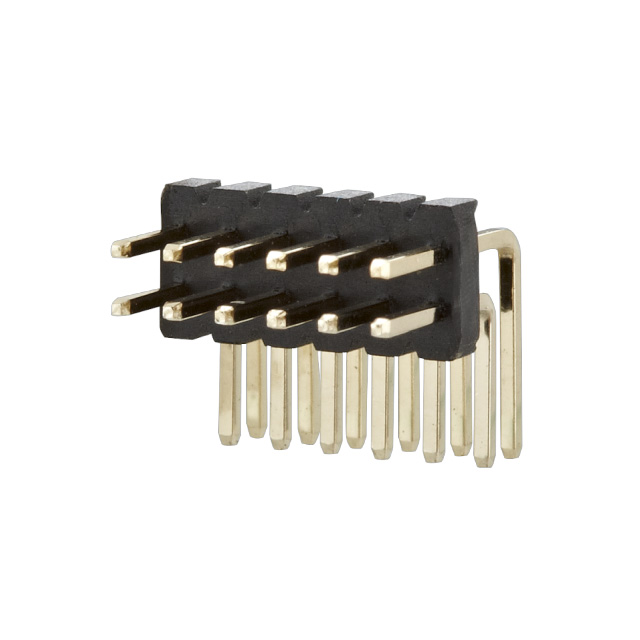

 METZ CONNECT USA Inc. | Header | 1.27 mm | 0.05 in | Square | All | Black | -40 C | 105 ░C | Male Pin | 8 | 0.11 in | 2.79 mm | Solder | Gold | 3 mm | 0.118 in | Flash | Unshrouded | Right Angle Through Hole | Push-Pull | Copper Alloy | Polyethylene | 2 | 0.05 in | 1.27 mm | 3.46 mm | 0.136 in |
