SM1204 Series

Catalog

LED, WHITE, SMD, 20 MA, 3.3 V, 450 MCD

Part	Current - Test	Supplier Device Package	Mounting Type	Configuration	Color	Viewing Angle	Millicandela Rating	Lens Size [y]	Lens Size [x]	Height (Max) [z]	Package / Case	Package / Case	Size / Dimension [y]	Size / Dimension [x]	Voltage - Forward (Vf) (Typ)	Lens Style	Lens Transparency	Lens Color	Wavelength - Peak	Wavelength - Dominant	Millicandela Rating [custom]	Millicandela Rating [custom]	Current - Test [custom]	Current - Test [custom]	Wavelength - Peak

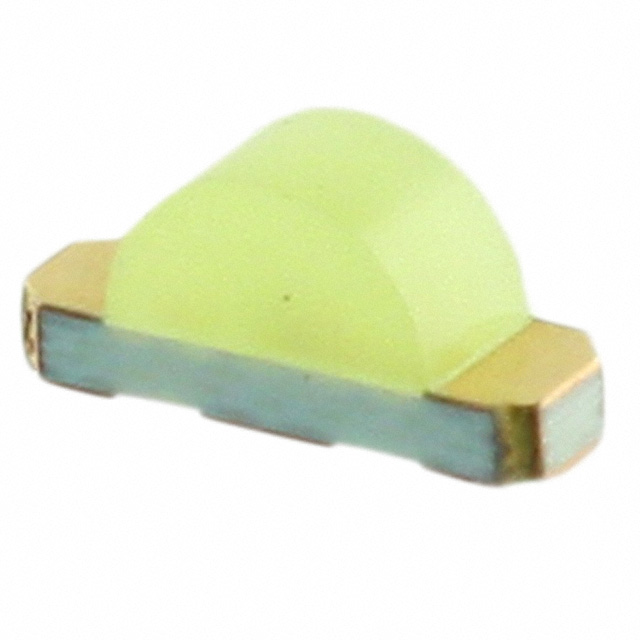

Bivar Inc. SM1204UWC	20 mA	1204	Right Angle Surface Mount	Standard	White	110 °	450 mcd	1 mm	2 mm	1 mm	1204	3210 Metric	1 mm	3.2 mm	3.3 V	Rectangle with Domed Top	Diffused
Bivar Inc. SM1204UGC	20 mA	1204	Right Angle Surface Mount	Standard	Green	110 °	28.5 mcd	1 mm	2 mm	1 mm	1204	3210 Metric	1 mm	3.2 mm	2.1 V	Rectangle with Domed Top	Clear	Colorless	568 nm	565 nm

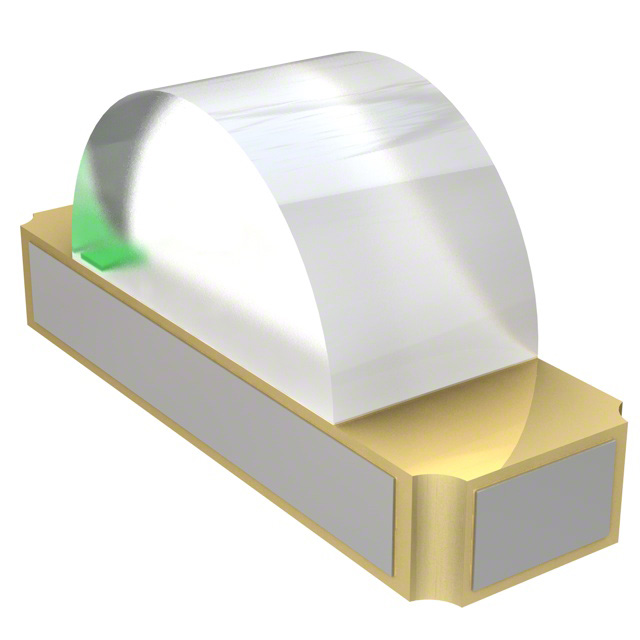

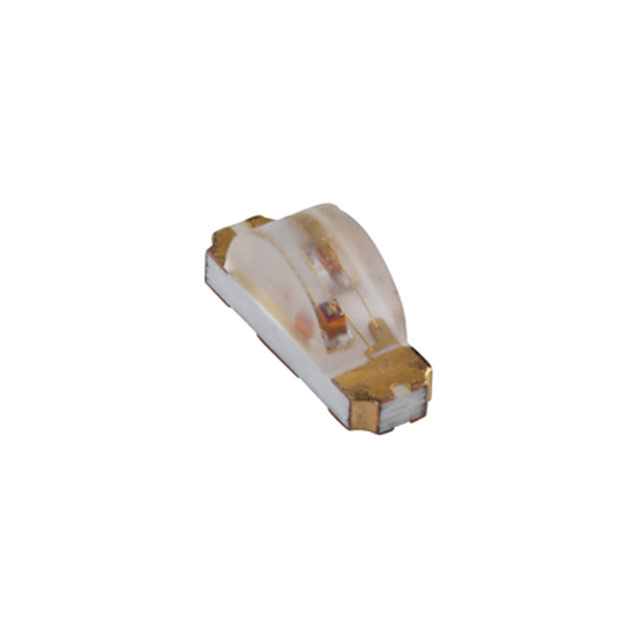

Bivar Inc. SM1204BC-R/G		1204	Right Angle Surface Mount	Common Anode	Green Red	130 °		1 mm	2 mm	1 mm	2-SMD No Lead		1.5 mm	3.2 mm	2.1 V 2.2 V	Rectangle with Domed Top	Clear	Colorless		574 nm 631 nm	72 mcd	115 mcd	20 mA	20 mA	575nm Green 645nm Red
Bivar Inc. SM1204UYC	20 mA	1204	Right Angle Surface Mount	Standard	Yellow	110 °	72 mcd	1 mm	2 mm	1 mm	1204	3210 Metric	1 mm	3.2 mm	2.1 V	Rectangle with Domed Top	Clear	Colorless	593 nm	592 nm

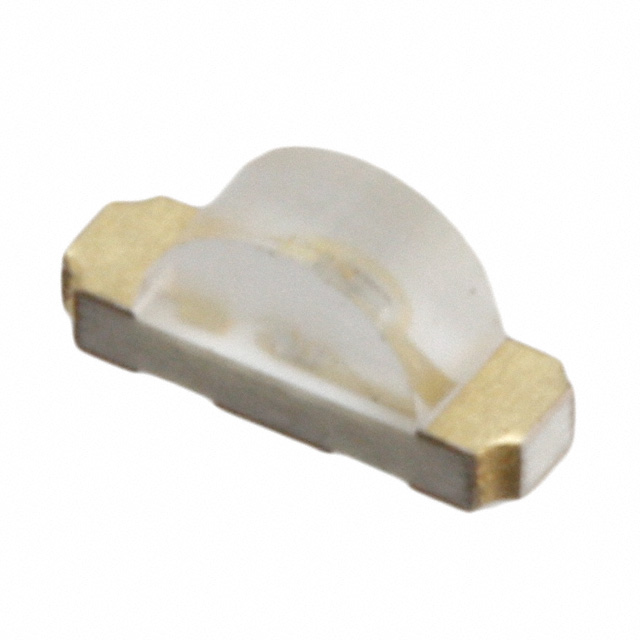

Bivar Inc. SM1204PGC	20 mA	1204	Right Angle Surface Mount	Standard	Green	110 °	360 mcd	1 mm	2 mm	1 mm	1204	3210 Metric	1 mm	3.2 mm	3.3 V	Rectangle with Domed Top	Clear	Colorless	500 nm	505 nm

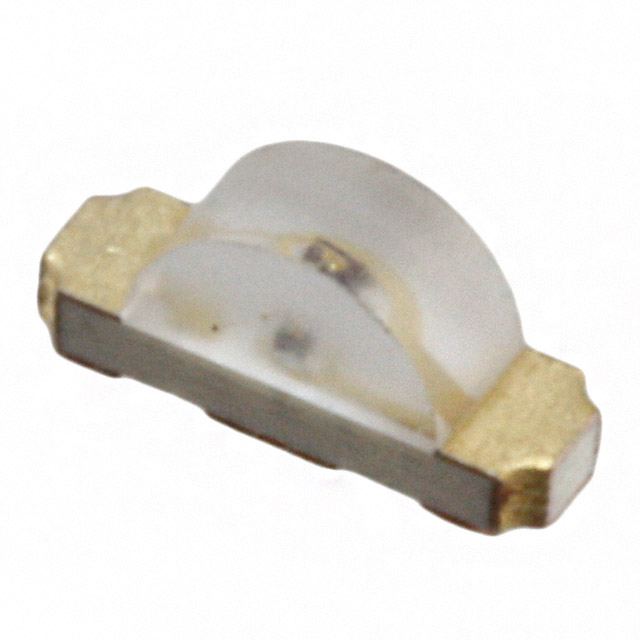

Bivar Inc. SM1204SGC	20 mA	1204	Right Angle Surface Mount	Standard	Green	110 °	50 mcd	1 mm	2 mm	1 mm	1204	3210 Metric	1 mm	3.2 mm	2.1 V	Rectangle with Domed Top	Clear	Colorless	575 nm	574 nm

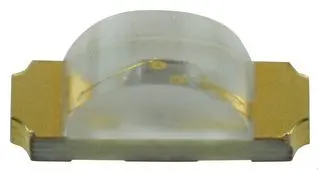

Bivar Inc. SM1204UPGC	20 mA	1204	Right Angle Surface Mount	Standard	Green	110 °	285 mcd	1 mm	2 mm	1 mm	1204	3210 Metric	1 mm	3.2 mm	3.3 V	Rectangle with Domed Top	Clear	Colorless	510 nm	515 nm
Bivar Inc. SM1204URC	20 mA	1204	Right Angle Surface Mount	Standard	Red	110 °	115 mcd	1 mm	2 mm	1 mm	1204	3210 Metric	1 mm	3.2 mm	2.1 V	Rectangle with Domed Top	Clear	Colorless	645 nm	631 nm
