DC0011/15 Series

Catalog

THERM PAD 21.84MMX18.79MM W/ADH

Part	Shelf Life	Thickness	Thickness	Shape	Material	Adhesive	Type	Backing, Carrier	Thermal Conductivity	Usage	Color	Outline [y]	Outline [x]	Shelf Life Start	Thickness

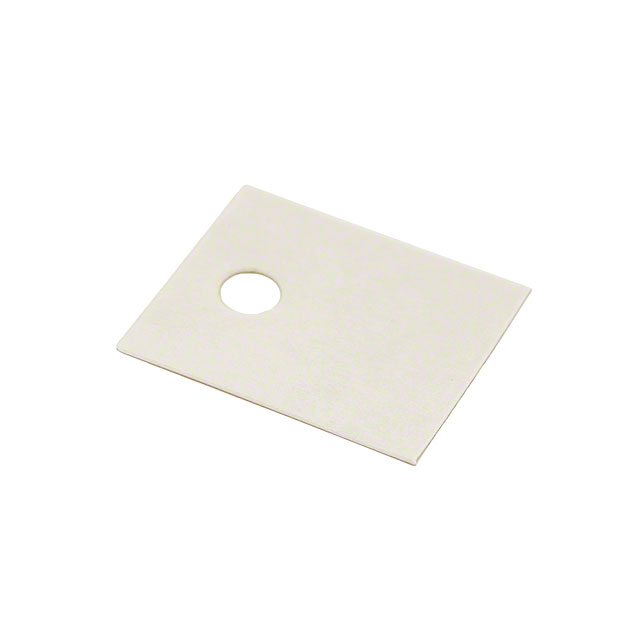

t-Global Technology DC0011/15-TI900-0.12-2A	24 Months	0.005 in	5 mils	Rectangular	Silicone	Adhesive - Both Sides	Die-Cut Pad Sheet	Viscose	1.8 W/m-K	TO-220	White	18.79 mm	21.84 mm
t-Global Technology DC0011/15-TG-A482K-0.1-0	24 Months	0.0039 in	0.1 mm	Rectangular	Silicone		Die-Cut Pad Sheet		2.3 W/m-K	TO-220	Red	18.79 mm	21.84 mm	Date of Purchase

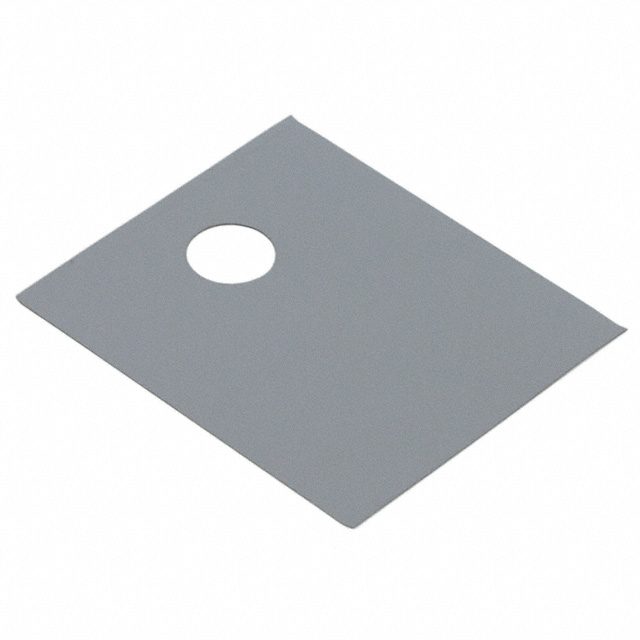

t-Global Technology DC0011/15-TI900-0.12-0	24 Months	0.005 in	5 mils	Rectangular	Silicone		Die-Cut Pad Sheet	Viscose	1.8 W/m-K	TO-220	White	18.79 mm	21.84 mm

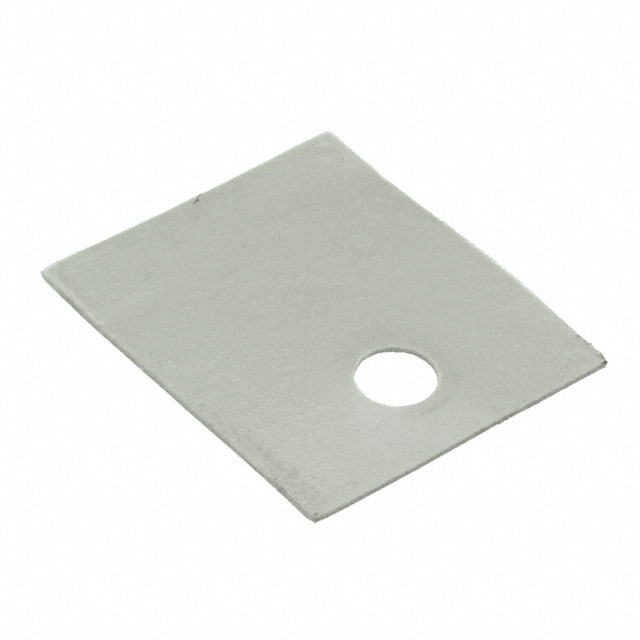

t-Global Technology DC0011/15-TG-A486G-0.3-2A	12 Months	0.012 in	0.305 mm	Rectangular		Adhesive - Both Sides	Die-Cut Pad Sheet		6 W/m-K	TO-220	Gray	18.79 mm	21.84 mm	Date of Purchase

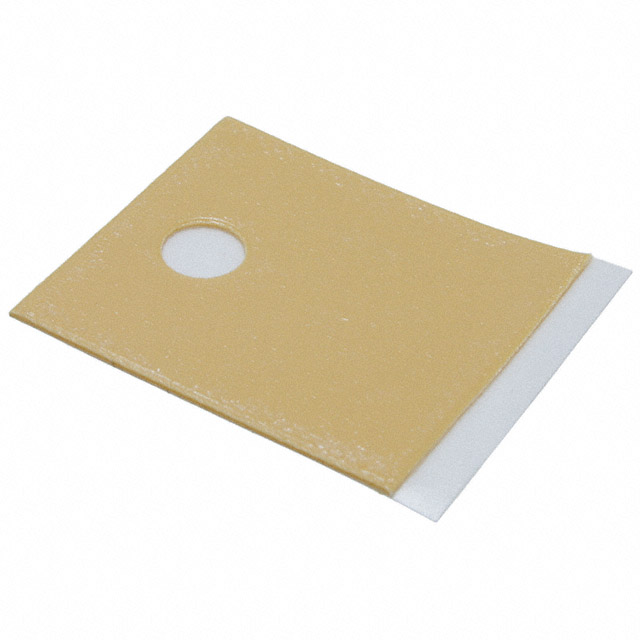

t-Global Technology DC0011/15-TG-A373F-0.25-2A	12 Months		10 mils	Rectangular		Adhesive - Both Sides	Die-Cut Pad Sheet		1.4 W/m-K	TO-220	Yellow	18.79 mm	21.84 mm		0.01 in
