1734351 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

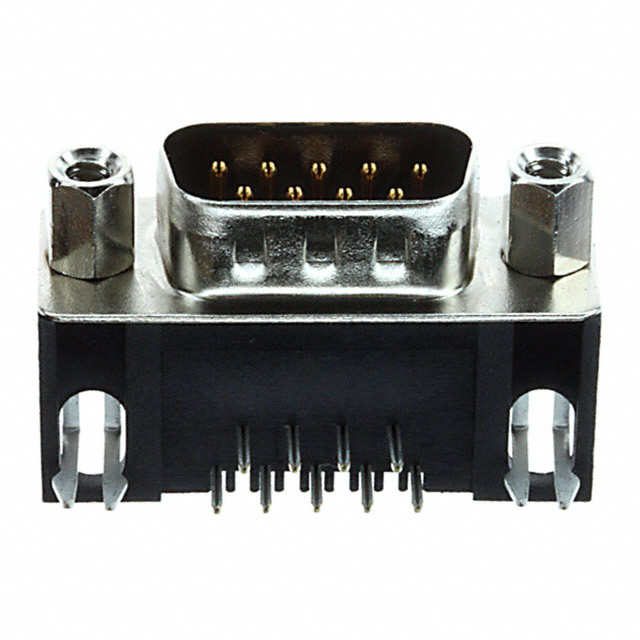

9 CONTACT(S), MALE, D SUBMINIATURE CONNECTOR, SOLDER, PLUG, ROHS COMPLIANT
| Part | Connector Type | Dielectric Material | Connector Style | Features | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Number of Positions | Contact Type | Color | Contact Finish | Flange Feature | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Termination | Number of Rows | Shell Material, Finish | Backset Spacing | Backset Spacing | Contact Finish Thickness | Contact Finish Thickness | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Male Pins Plug | Polybutylene Terephthalate (PBT) | D-Sub | Board Lock Grounding Indents | DE E | 1 | 9 | Signal | Black | Gold | Female Screwlock (4-40) Mating Side | Through Hole Right Angle | 105 ░C | -55 °C | 2 A | Solder | 2 | Nickel Plated Steel | 8.08 mm | 0.318 " | 15 µin | 0.38 µm | 250 VDC |
