Ksc0D0 Series Series

Sealed Detect Switch for SMT

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Sealed Detect Switch for SMT

Part	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Contact Rating @ Voltage	Termination Style	Mechanical Life	Switch Function	Operating Force	Illumination	Circuit	Actuator Height off PCB, Vertical	Mounting Type	Outline [y]	Outline [x]	Actuator Type	Actuator Orientation	Switch Travel

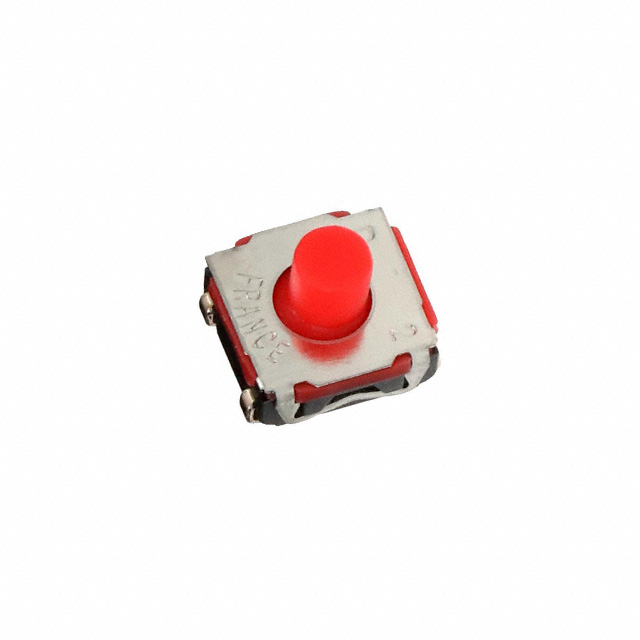

Littelfuse/Commercial Vehicle Products KSC4D2J50SHLFS	IP67 - Dust Tight Waterproof	85 °C	-40 °C	0.05 A	J Lead	2000000 Cycles	Off-Mom	200 gf	Non-Illuminated	SPST-NO	5.2 mm	Surface Mount	6.2 mm	6.2 mm	Standard	Top Actuated	0.35 mm

Catalog

Sealed Detect Switch for SMT

Key Features

• Soft actuator

• J or G terminations

• IP67

Description

The KSC D series of sealed detect switches for SMT are used by designers throughout the automotive, industrial electronics, computer infrastructure, mobile phone and IT industries because of their ability to combine a low profile with a soft actuator in a long-lasting switch. KSC D switches from C&K are available with J or G terminations – and are compliant with the IP67 and RoHS regulations.
