GWX Series
Manufacturer: Kycon, Inc.
Beta
⌘K
8P8C SHIELD MOD JACK WITH TOP/SI
| Part | Housing Material | Contact Finish Thickness | Contact Finish Thickness (string set options) | Contact Finish Thickness | Shielding | Mounting Type | Number of Rows | LED Color | Termination | Contact Finish | Features | Orientation Angle | Orientation Direction | Tab Direction | Number of Ports | Contact Material | Connector Type | Number of Positions | Number of Contacts |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

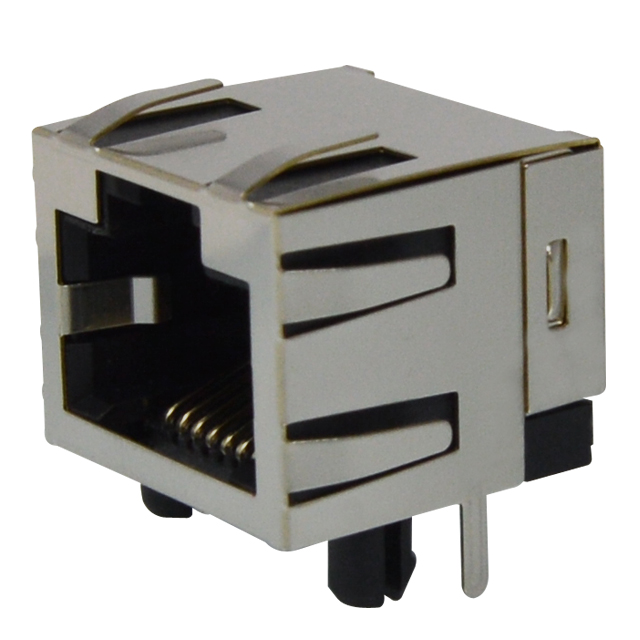

 Kycon, Inc. | Thermoplastic | 0 | Flash | Flash | EMI Finger Shielded | Through Hole | 1 | Does Not Contain LED | Solder | Gold | Board Lock | 90 ° | Right | Up | 1 | Phosphor Bronze | Ethernet Jack RJ45 | 8 | 8 |
 Kycon, Inc. | Thermoplastic | 0 | Flash | Flash | Unshielded | Surface Mount | 1 | Does Not Contain LED | Solder | Gold | Board Lock | 90 ° | Right | Up | 1 | Phosphor Bronze | Ethernet Jack RJ45 | 8 | 8 |

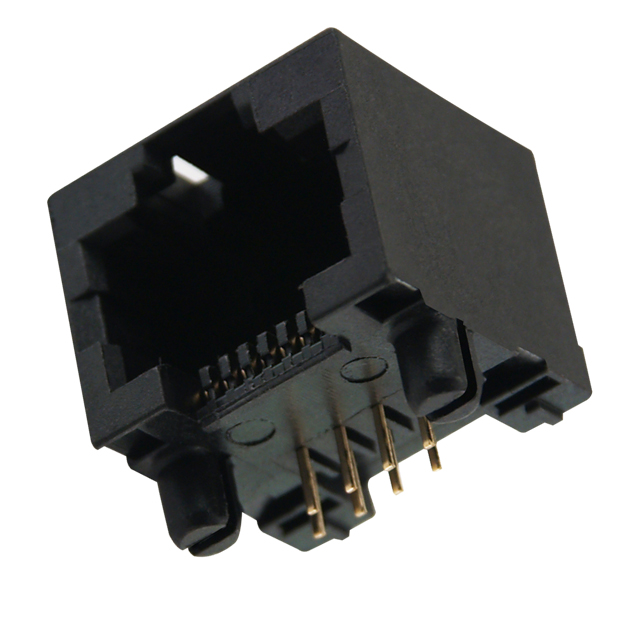

 Kycon, Inc. | Thermoplastic | 0 | Flash | Flash | Unshielded | Through Hole | 1 | Does Not Contain LED | Solder | Gold | Board Lock | 90 ° | Right | Up | 1 | Phosphor Bronze | Ethernet Jack RJ45 | 8 | 8 |
Kycon, Inc. | Unshielded | Surface Mount | 1 | Does Not Contain LED | Solder | Gold | Board Lock | 90 ° | Right | Up | 1 | Phosphor Bronze | Ethernet Jack RJ45 | 8 | 8 | ||||
Kycon, Inc. | Shielded | Surface Mount | 1 | Does Not Contain LED | Solder | Gold | Board Lock | 90 ° | Right | Up | 1 | Phosphor Bronze | Ethernet Jack RJ45 | 8 | 8 | ||||
Kycon, Inc. | Unshielded | Surface Mount | 1 | Does Not Contain LED | Solder | Gold | Board Lock | 90 ° | Right | Up | 1 | Phosphor Bronze | Ethernet Jack RJ45 | 8 | 8 | ||||
Kycon, Inc. | Thermoplastic | 0 | Flash | Flash | Shielded | Surface Mount | 1 | Does Not Contain LED | Solder | Gold | Board Lock | 90 ° | Right | Up | 1 | Phosphor Bronze | Ethernet Jack RJ45 | 8 | 8 |
