424-017 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE DUAL FMALE 17POS 0.200
| Part | Material - Insulation | Termination Rows [custom] | Card Thickness | Card Thickness | Gender | Termination | Color | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Number of Rows [custom] | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Card Type | Pitch | Pitch | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

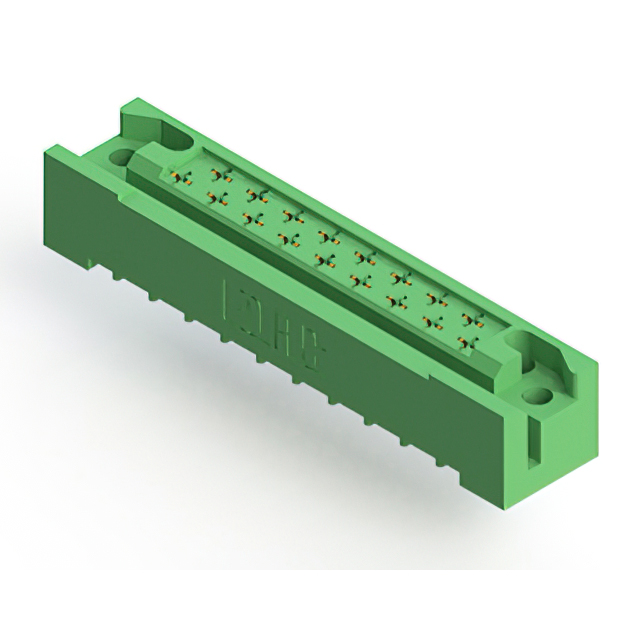

 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 1.57 mm | 0.062 in | Female | Wire Wrap | Green | Panel Mount Through Hole | 0.25 Ám | 10 Áin | 2 | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | Non Specified - Dual Edge | 5.08 mm | 0.2 in | Copper Alloy | -65 ░C | 125 °C | Gold |

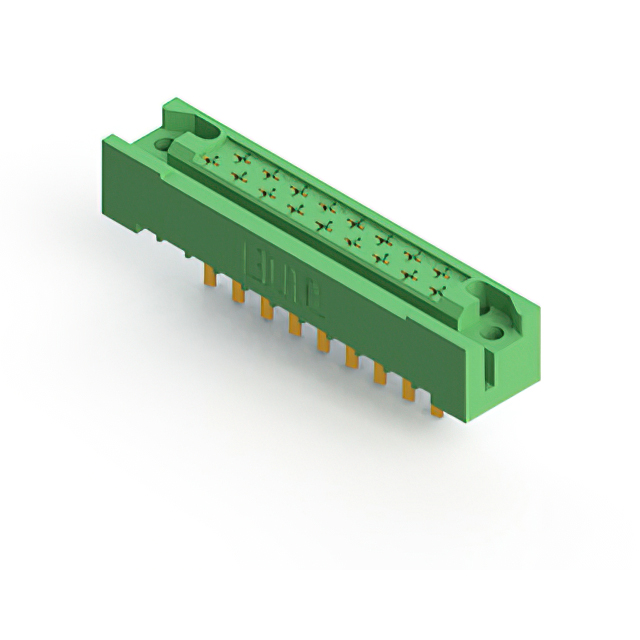

 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 2.36 mm | 0.093 " | Female | Solder | Green | Panel Mount Through Hole | 0.25 Ám | 10 Áin | 2 | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | Non Specified - Dual Edge | 5.08 mm | 0.2 in | Copper Alloy | -65 ░C | 125 °C | Gold |

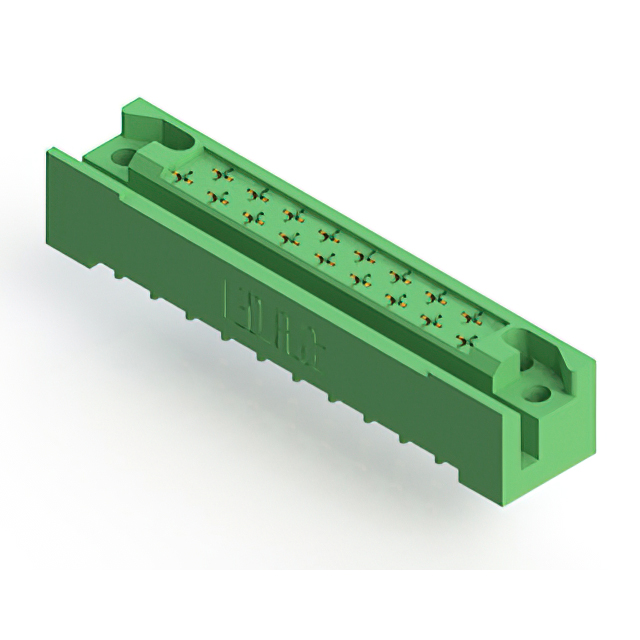

 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 2.36 mm | 0.093 " | Female | Solder | Green | Panel Mount Through Hole | 0.25 Ám | 10 Áin | 2 | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | Non Specified - Dual Edge | 5.08 mm | 0.2 in | Copper Alloy | -65 ░C | 125 °C | Gold |
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 1.57 mm | 0.062 in | Female | Solder | Green | Panel Mount Through Hole | 0.25 Ám | 10 Áin | 2 | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | Non Specified - Dual Edge | 5.08 mm | 0.2 in | Copper Alloy | -65 ░C | 125 °C | Gold |

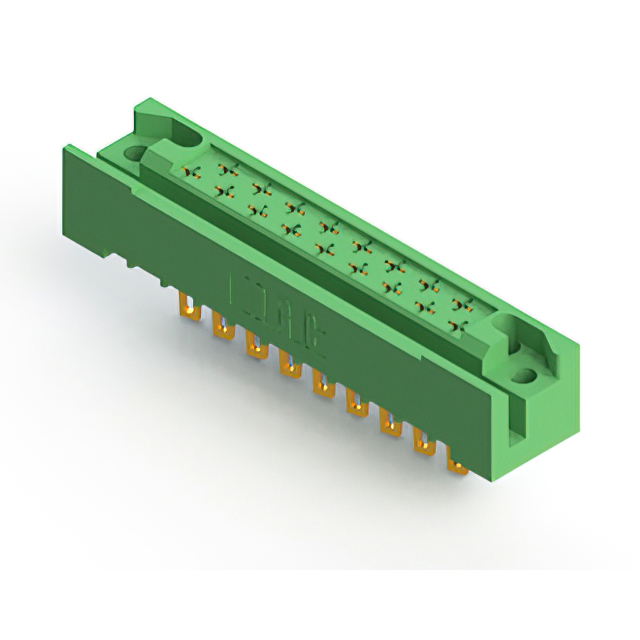

 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 2.36 mm | 0.093 " | Female | Solder Eyelet(s) | Green | Panel Mount Through Hole | 0.25 Ám | 10 Áin | 2 | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | Non Specified - Dual Edge | 5.08 mm | 0.2 in | Copper Alloy | -65 ░C | 125 °C | Gold |
