2044 Series

Manufacturer: Oupiin

Catalog

PCB SOCKET, SINGLE ROW, 19 PIN,

Part	Insulation Material	Contact Material	Contact Shape	Contact Finish Thickness - Post	Number of Rows	Current Rating (Amps)	Insulation Height [z]	Insulation Height [z]	Termination	Contact Finish Thickness - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Material Flammability Rating	Number of Positions	Contact Finish - Post	Connector Type	Mounting Type	Contact Type	Fastening Type	Contact Finish - Mating	Pitch - Mating	Pitch - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Rows [custom]
Oupiin 2044-1X19G00SA	Glass Filled Polyester Thermoplastic	Copper Alloy	Square	Flash	1	2 A	0.335 in	8.5 mm	Solder	Flash	0.126 "	3.2 mm	-55 C	105 ░C	All	UL94 V-0	19	Gold	Socket	Through Hole	Female Socket	Push-Pull	Gold	0.1 "	2.54 mm
Oupiin 2044-1X07G00SA	Glass Filled Polyester Thermoplastic	Copper Alloy	Square	Flash	1	2 A	0.335 in	8.5 mm	Solder	Flash	0.126 "	3.2 mm	-55 C	105 ░C	All	UL94 V-0	7	Gold	Socket	Through Hole	Female Socket	Push-Pull	Gold	0.1 "	2.54 mm

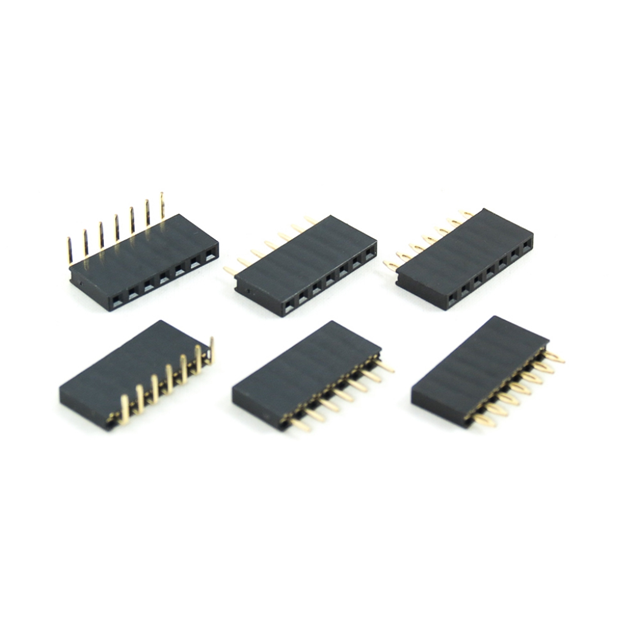

Oupiin 2044-1X13G00SA	Glass Filled Polyester Thermoplastic	Copper Alloy	Square	Flash	1	2 A	0.335 in	8.5 mm	Solder	Flash	0.126 "	3.2 mm	-55 C	105 ░C	All	UL94 V-0	13	Gold	Socket	Through Hole	Female Socket	Push-Pull	Gold	0.1 "	2.54 mm
Oupiin 2044-1X06G00SB	Glass Filled Polyester Thermoplastic	Copper Alloy	Square	Flash	1	2 A	0.335 in	8.5 mm	Solder	Flash	0.126 "	3.2 mm	-55 C	105 ░C	All	UL94 V-0	6	Gold	Socket	Through Hole	Female Socket	Push-Pull	Gold	0.1 "	2.54 mm

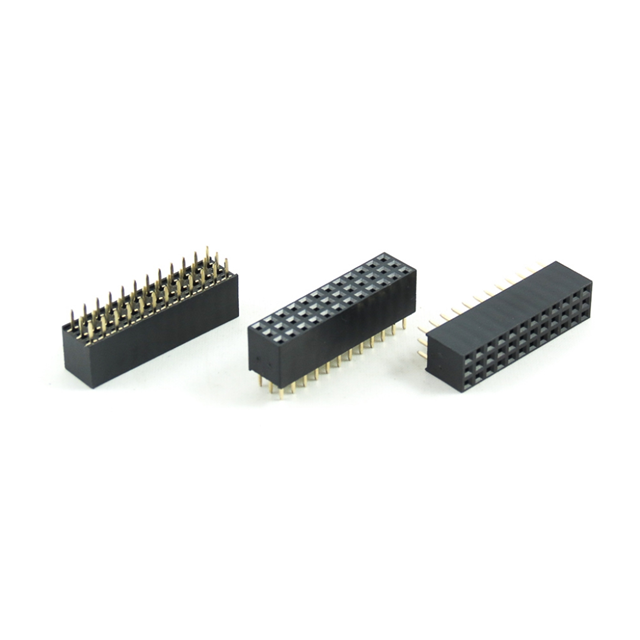

Oupiin 2044-3X21G00SA	Glass Filled Polyester Thermoplastic	Copper Alloy	Square	Flash		2 A	0.335 in	8.5 mm	Solder	Flash	0.126 "	3.2 mm	-55 C	105 ░C	All	UL94 V-0	63	Gold	Socket	Through Hole	Female Socket	Push-Pull	Gold	0.1 "	2.54 mm	0.1 in	2.54 mm	3
Oupiin 2044-1X11G00SA	Glass Filled Polyester Thermoplastic	Copper Alloy	Square	Flash	1	2 A	0.335 in	8.5 mm	Solder	Flash	0.126 "	3.2 mm	-55 C	105 ░C	All	UL94 V-0	11	Gold	Socket	Through Hole	Female Socket	Push-Pull	Gold	0.1 "	2.54 mm
Oupiin 2044-1X16G00SA	Glass Filled Polyester Thermoplastic	Copper Alloy	Square	Flash	1	2 A	0.335 in	8.5 mm	Solder	Flash	0.126 "	3.2 mm	-55 C	105 ░C	All	UL94 V-0	16	Gold	Socket	Through Hole	Female Socket	Push-Pull	Gold	0.1 "	2.54 mm
Oupiin 2044-1X17G00SA	Glass Filled Polyester Thermoplastic	Copper Alloy	Square	Flash	1	2 A	0.335 in	8.5 mm	Solder	Flash	0.126 "	3.2 mm	-55 C	105 ░C	All	UL94 V-0		Gold	Socket	Through Hole	Female Socket	Push-Pull	Gold	0.1 "	2.54 mm
Oupiin 2044-1X04G00SB	Glass Filled Polyester Thermoplastic	Copper Alloy	Square	Flash	1	2 A	0.335 in	8.5 mm	Solder	Flash	0.126 "	3.2 mm	-55 C	105 ░C	All	UL94 V-0	4	Gold	Socket	Through Hole	Female Socket	Push-Pull	Gold	0.1 "	2.54 mm
Oupiin 2044-1X24G00SA	Glass Filled Polyester Thermoplastic	Copper Alloy	Square	Flash	1	2 A	0.335 in	8.5 mm	Solder	Flash	0.126 "	3.2 mm	-55 C	105 ░C	All	UL94 V-0	24	Gold	Socket	Through Hole	Female Socket	Push-Pull	Gold	0.1 "	2.54 mm
