G1G146 Series
Manufacturer: ebm-papst Inc.
Beta
⌘K

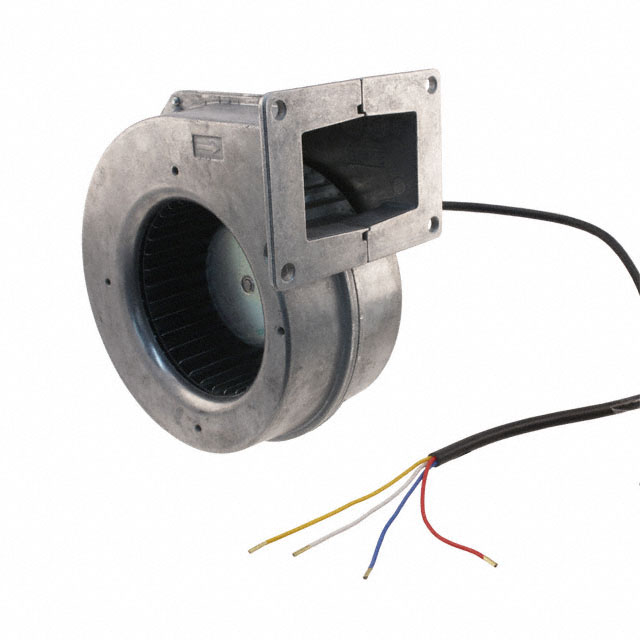

FAN BLOWER 226.8X130.0MM 24VDC
| Part | Material - Blade | Voltage Range [Min] | Voltage Range [Max] | Material - Frame | Current Rating (Amps) | Power (Watts) | Ingress Protection | Approval Agency | Width [y] | Termination | Fan Type | Weight [custom] | Weight [custom] | Voltage - Rated | Features | Operating Temperature [Min] | Operating Temperature [Max] | Size / Dimension [z] | Size / Dimension [diameter] | Size / Dimension [x] | Size / Dimension | Bearing Type | RPM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ebm-papst Inc. | Steel | 16 VDC | 28 V | Aluminum | 5 A | 100 W | IP42 | CSA UL | 130 mm | 4 Wire Leads | Blower | 2.8 kg | 6.2 lbs | 24 VDC | PWM Control Speed Sensor (Tach) | -25 °C | 60 °C | 262 mm | 158 mm | 226.8 mm | Rectangular/Rounded | Ball | 2200 RPM |
