2823379 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

9P,2MM,SHRD HDR,SRVT,2.8,0.38AU,

Part	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Voltage Rating	Fastening Type	Insulation Material	Contact Finish - Post	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Material Flammability Rating	Contact Shape	Termination	Contact Length - Mating	Contact Length - Mating	Number of Positions	Number of Positions Loaded	Contact Length - Post [x]	Contact Length - Post [x]	Shrouding	Current Rating (Amps)	Number of Rows	Insulation Color	Contact Finish - Mating	Contact Type	Insulation Height [custom]	Insulation Height [custom]	Pitch - Mating [x]	Pitch - Mating [x]	Connector Type

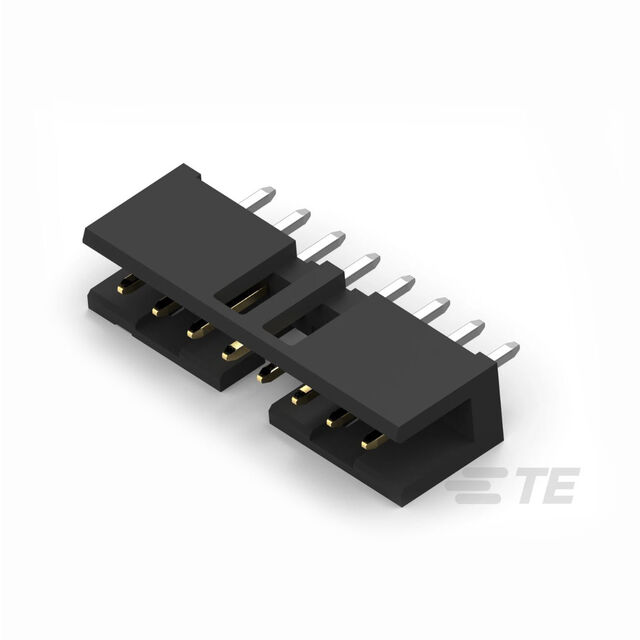

TE Connectivity Raychem Cable Protection 2823379-9	Phosphor Bronze	15 µin	0.38 µm	125 VAC	Detent Lock	Thermoplastic	Tin	Through Hole	125 °C	-40 °C	157.5 Áin	4 Ám	UL94 V-0	Square	Solder	4 mm	0.157 in	9	All	0.11 in	2.8 mm	Shrouded - 2 Wall	2 A	1	Black	Gold	Male Pin	5.51 mm	0.217 in	0.079 in	2 mm	Header
TE Connectivity Raychem Cable Protection 2823379-7	Phosphor Bronze	15 µin	0.38 µm	125 VAC	Detent Lock	Thermoplastic	Tin	Through Hole	125 °C	-40 °C	157.5 Áin	4 Ám	UL94 V-0	Square	Solder	4 mm	0.157 in	7	All	0.11 in	2.8 mm	Shrouded - 2 Wall	2 A	1	Black	Gold	Male Pin	5.51 mm	0.217 in	0.079 in	2 mm	Header

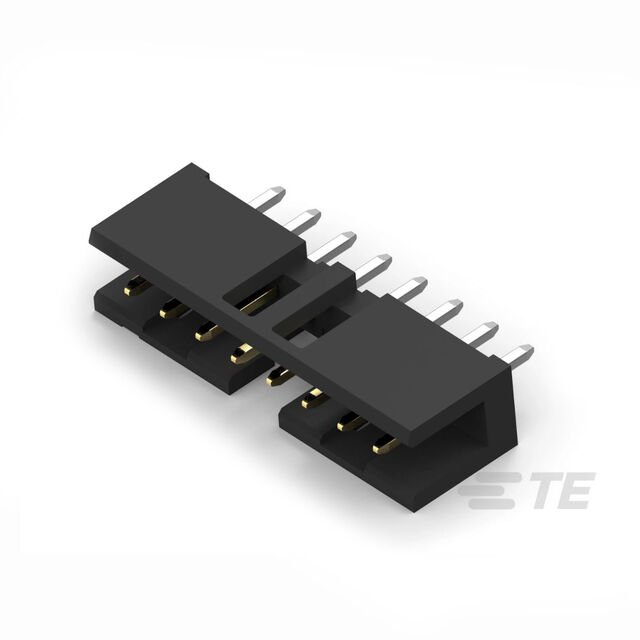

TE Connectivity Raychem Cable Protection 2823379-8	Phosphor Bronze	15 µin	0.38 µm	125 VAC	Detent Lock	Thermoplastic	Tin	Through Hole	125 °C	-40 °C	157.5 Áin	4 Ám	UL94 V-0	Square	Solder	4 mm	0.157 in	8	All	0.11 in	2.8 mm	Shrouded - 2 Wall	2 A	1	Black	Gold	Male Pin	5.51 mm	0.217 in	0.079 in	2 mm	Header

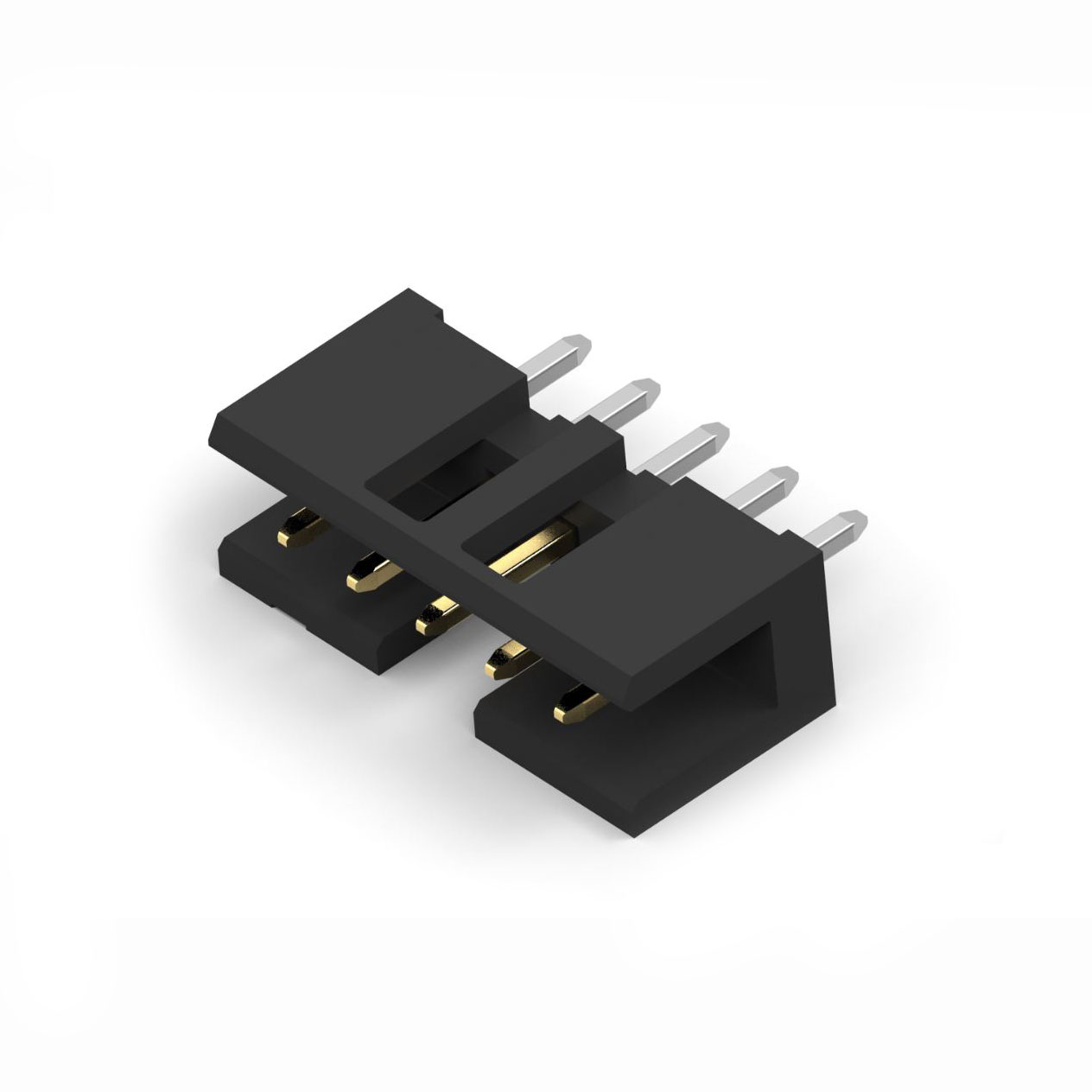

TE Connectivity Raychem Cable Protection 2823379-5	Phosphor Bronze	15 µin	0.38 µm	125 VAC	Detent Lock	Thermoplastic	Tin	Through Hole	125 °C	-40 °C	157.5 Áin	4 Ám	UL94 V-0	Square	Solder	4 mm	0.157 in		All	0.11 in	2.8 mm	Shrouded - 2 Wall	2 A	1	Black	Gold	Male Pin	5.51 mm	0.217 in	0.079 in	2 mm	Header
TE Connectivity Raychem Cable Protection 2823379-2	Phosphor Bronze	15 µin	0.38 µm	125 VAC	Detent Lock	Thermoplastic	Tin	Through Hole	125 °C	-40 °C	157.5 Áin	4 Ám	UL94 V-0	Square	Solder	4 mm	0.157 in	2	All	0.11 in	2.8 mm	Shrouded - 2 Wall	2 A	1	Black	Gold	Male Pin	5.51 mm	0.217 in	0.079 in	2 mm	Header

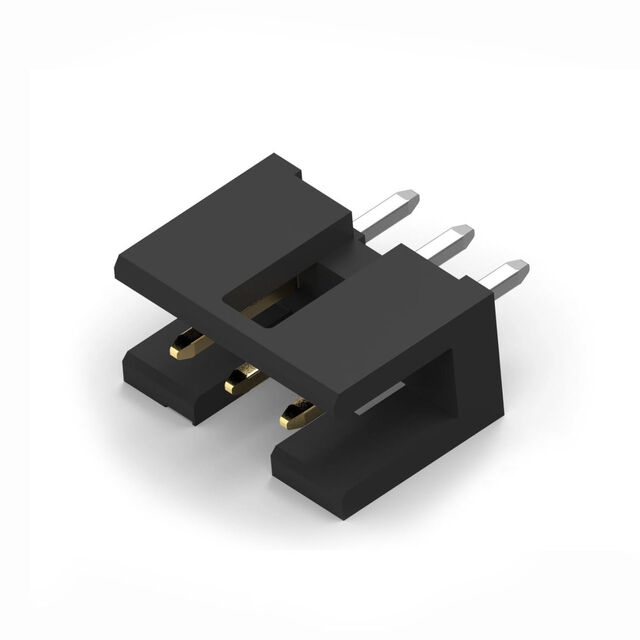

TE Connectivity Raychem Cable Protection 2823379-3	Phosphor Bronze	15 µin	0.38 µm	125 VAC	Detent Lock	Thermoplastic	Tin	Through Hole	125 °C	-40 °C	157.5 Áin	4 Ám	UL94 V-0	Square	Solder	4 mm	0.157 in		All	0.11 in	2.8 mm	Shrouded - 2 Wall	2 A	1	Black	Gold	Male Pin	5.51 mm	0.217 in	0.079 in	2 mm	Header
TE Connectivity Raychem Cable Protection 1-2823379-2	Phosphor Bronze	15 µin	0.38 µm	125 VAC	Detent Lock	Thermoplastic	Tin	Through Hole	125 °C	-40 °C	157.5 Áin	4 Ám	UL94 V-0	Square	Solder	4 mm	0.157 in	12	All	0.11 in	2.8 mm	Shrouded - 2 Wall	2 A	1	Black	Gold	Male Pin	5.51 mm	0.217 in	0.079 in	2 mm	Header
TE Connectivity Raychem Cable Protection 2823379-6	Phosphor Bronze	15 µin	0.38 µm	125 VAC	Detent Lock	Thermoplastic	Tin	Through Hole	125 °C	-40 °C	157.5 Áin	4 Ám	UL94 V-0	Square	Solder	4 mm	0.157 in	6	All	0.11 in	2.8 mm	Shrouded - 2 Wall	2 A	1	Black	Gold	Male Pin	5.51 mm	0.217 in	0.079 in	2 mm	Header

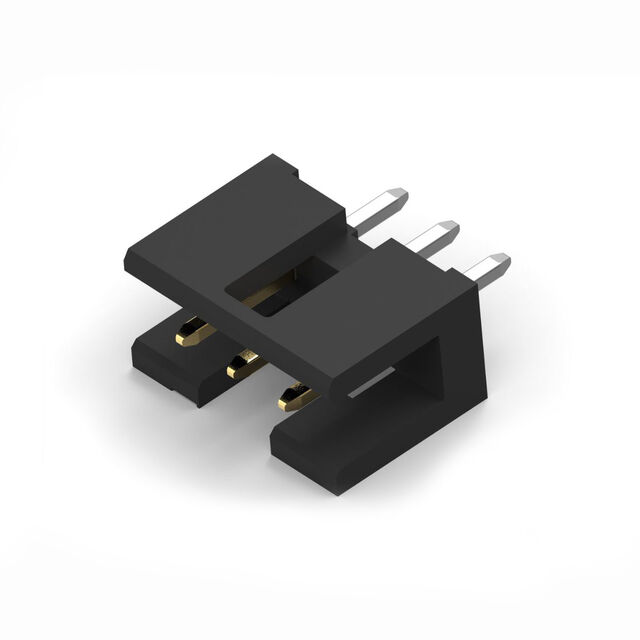

TE Connectivity Raychem Cable Protection 2823379-4	Phosphor Bronze	15 µin	0.38 µm	125 VAC	Detent Lock	Thermoplastic	Tin	Through Hole	125 °C	-40 °C	157.5 Áin	4 Ám	UL94 V-0	Square	Solder	4 mm	0.157 in	4	All	0.11 in	2.8 mm	Shrouded - 2 Wall	2 A	1	Black	Gold	Male Pin	5.51 mm	0.217 in	0.079 in	2 mm	Header
