BG600 Series
Manufacturer: Quectel
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
RF TXRX MOD CELL NAV SMD
| Part | Current - Receiving | Power - Output | Protocol | Mounting Type | Utilized IC / Part | Operating Temperature (Max) | Operating Temperature (Min) | Package / Case | Voltage - Supply (Maximum) | Voltage - Supply (Minimum) | Data Rate | Antenna Type | Serial Interfaces | RF Family/Standard | Frequency | Frequency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

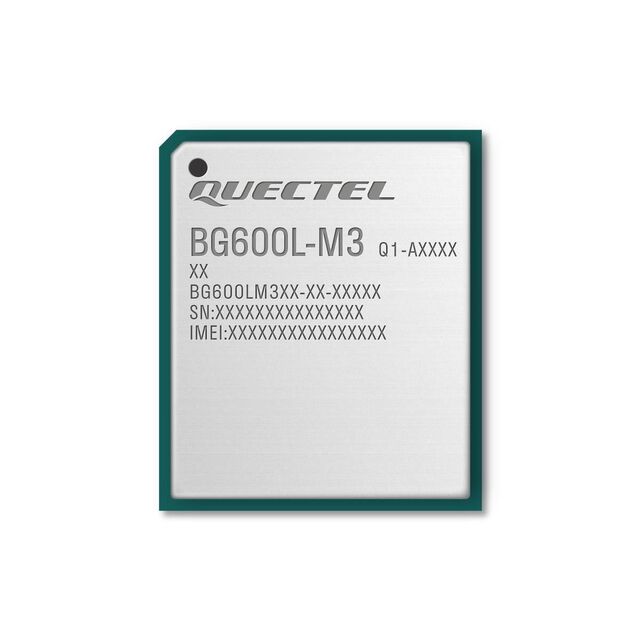

 Quectel | 17.9 mA | 21 dBm | BeiDou Galileo GLONASS GNSS GPRS GPS GSM LTE | Surface Mount | MDM9205-0 | 75 °C | -35 °C | Module | 4.3 V | 3.3 V | 1.119 Mbps | Antenna Not Included | ADC GPIO I2C PCM UART USB | Cellular Navigation | 1.8 GHz 1.9 GHz 850 MHz 900 MHz | 1.8GHz 1.9GHz 850MHz 900MHz |

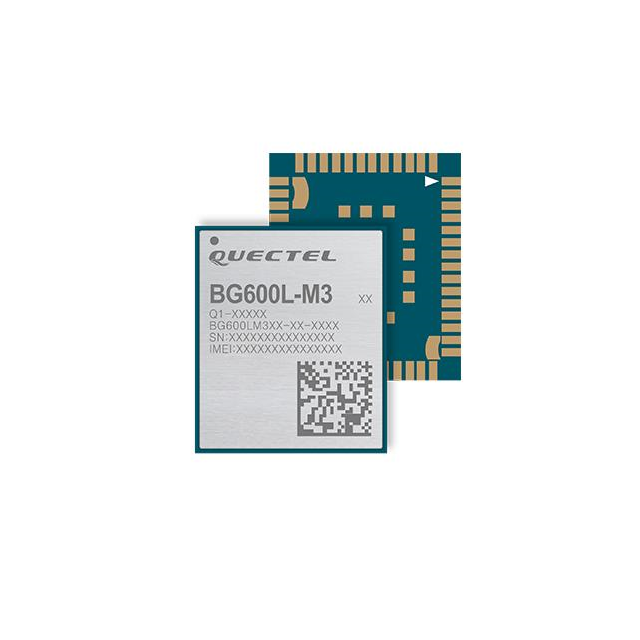

 Quectel | 17.9 mA | 21 dBm | BeiDou Galileo GLONASS GNSS GPRS GPS GSM LTE | Surface Mount | 75 °C | -35 °C | Module | 4.3 V | 3.3 V | 1.119 Mbps | Antenna Not Included | ADC GPIO I2C PCM UART USB | Cellular Navigation | 1.8 GHz 1.9 GHz 850 MHz 900 MHz | 1.8GHz 1.9GHz 850MHz 900MHz |
