SFV28R Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

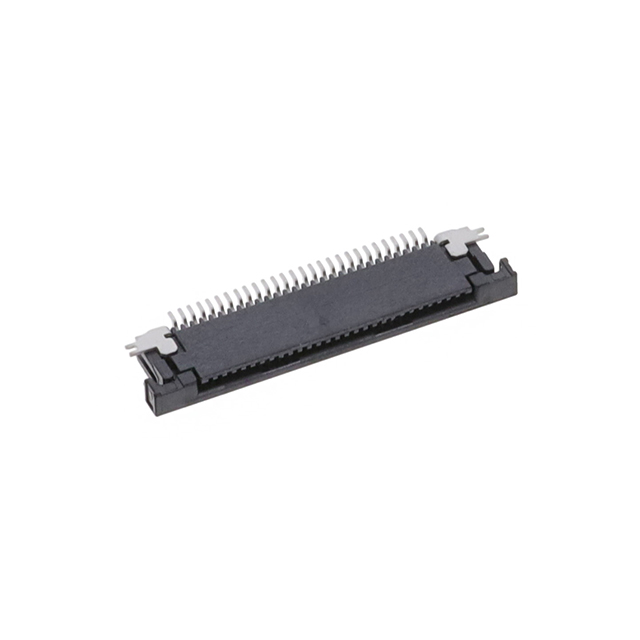

CONN FPC TOP 28POS 0.5MM R/A
| Part | Current Rating (Amps) | Mating Cycles | Housing Color | Actuator Color | Connector/Contact Type | Height Above Board [z] | Height Above Board [z] | Locking Feature | Contact Material | Number of Positions | Pitch | Pitch | Mounting Type | Housing Material | Actuator Material | Cable End Type | Flat Flex Type | Contact Finish | FFC, FCB Thickness [custom] | FFC, FCB Thickness [custom] | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Material Flammability Rating | FFC, FCB Thickness | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | 0.5 A | 20 | Black | Black | Contacts Top | 0.071 in | 1.8 mm | Slide Lock | Phosphor Bronze | 28 | 0.02 " | 0.5 mm | Right Angle Surface Mount | Glass Filled Halogen Free Liquid Crystal Polymer (LCP) | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | Straight Tapered | FPC | Tin | 0.3 mm | 0.33 mm | Solder | -55 C | 105 ░C | 50 V | UL94 V-0 | ||
 Amphenol ICC (FCI) | 0.5 A | 20 | Black | Beige | Contacts Bottom | 0.071 in | 1.8 mm | Slide Lock | Phosphor Bronze | 28 | 0.02 " | 0.5 mm | Right Angle Surface Mount | Glass Filled Halogen Free Liquid Crystal Polymer (LCP) | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | Tapered | FFC FPC | Gold | Solder | -55 C | 105 ░C | 50 V | UL94 V-0 | 0.3 mm | |||
 Amphenol ICC (FCI) | 0.5 A | 20 | Black | Black | Contacts Bottom | 0.071 in | 1.8 mm | Slide Lock | Phosphor Bronze | 28 | 0.02 " | 0.5 mm | Right Angle Surface Mount | Glass Filled Halogen Free Liquid Crystal Polymer (LCP) | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | Tapered | FPC | Gold | Solder | -55 C | 105 ░C | 50 V | UL94 V-0 | 0.3 mm | Solder Retention Zero Insertion Force (ZIF) | ||
 Amphenol ICC (FCI) | 0.5 A | 20 | Black | Brown | Contacts Bottom | 0.071 in | 1.8 mm | Slide Lock | Phosphor Bronze | 28 | 0.02 " | 0.5 mm | Right Angle Surface Mount | Glass Filled Halogen Free Liquid Crystal Polymer (LCP) | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | Notched | FFC FPC | Tin | Solder | -55 C | 105 ░C | 50 V | UL94 V-0 | 0.33 mm | |||
 Amphenol ICC (FCI) | 0.5 A | 20 | Black | Brown | Contacts Bottom | 0.071 in | 1.8 mm | Flip Lock Slide Lock | Phosphor Bronze | 28 | 0.02 " | 0.5 mm | Right Angle Surface Mount | Glass Filled Halogen Free Liquid Crystal Polymer (LCP) | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | Straight Tapered | FFC FPC | Gold | Solder | -55 C | 105 ░C | 50 V | UL94 V-0 | 0.3 mm | |||
 Amphenol ICC (FCI) | 0.5 A | 20 | Black | Beige | Contacts Bottom | 0.071 in | 1.8 mm | Slide Lock | Phosphor Bronze | 28 | 0.02 " | 0.5 mm | Right Angle Surface Mount | Glass Filled Halogen Free Liquid Crystal Polymer (LCP) | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | Tapered | FPC | Tin | Solder | -55 C | 105 ░C | 50 V | UL94 V-0 | 0.3 mm |
