204523 Series

Headers & Wire Housings 1.25MM REC 02X06P BLK POS LOCK

Manufacturer: Molex

Catalog

Headers & Wire Housings 1.25MM REC 02X06P BLK POS LOCK

Catalog

Headers & Wire Housings 1.25MM REC 02X06P BLK POS LOCK

Part	Connector Type	Number of Rows	Color	Pitch [x]	Pitch [x]	Fastening Type	Insulation Material	Note	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Number of Positions	Contact Termination	Mounting Type

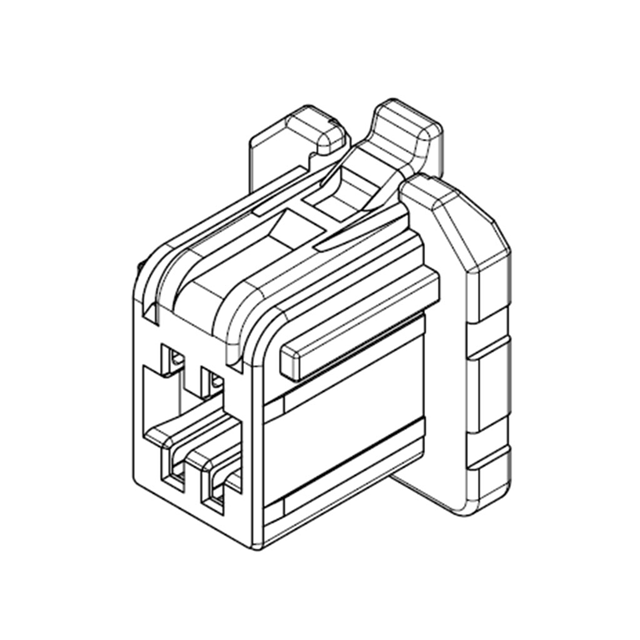

Molex 2045230401	Receptacle	2	Black	0.049 in	1.25 mm	Latch Holder	Polybutylene Terephthalate (PBT)	Contacts Not Included	-40 °C	105 ░C	Female Socket	4	Crimp	Free Hanging (In-Line)
Molex 2045231001	Receptacle	2	Black	0.049 in	1.25 mm	Latch Holder	Polybutylene Terephthalate (PBT)	Contacts Not Included	-40 °C	105 ░C	Female Socket	10	Crimp	Free Hanging (In-Line)

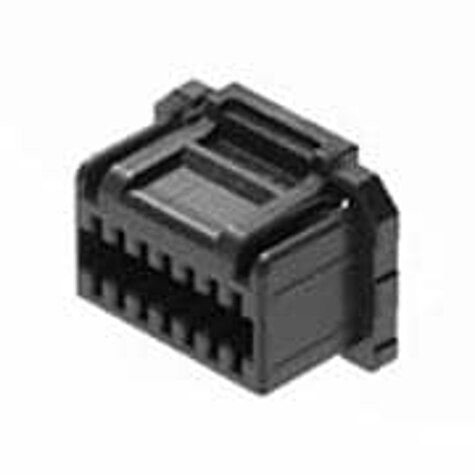

Molex 2045230801	Receptacle	2	Black	0.049 in	1.25 mm	Latch Holder	Polybutylene Terephthalate (PBT)	Contacts Not Included	-40 °C	105 ░C	Female Socket	8	Crimp	Free Hanging (In-Line)
Molex 2045230601	Receptacle	2	Black	0.049 in	1.25 mm	Latch Holder	Polybutylene Terephthalate (PBT)	Contacts Not Included	-40 °C	105 ░C	Female Socket	6	Crimp	Free Hanging (In-Line)
