PB-120 Series

Catalog

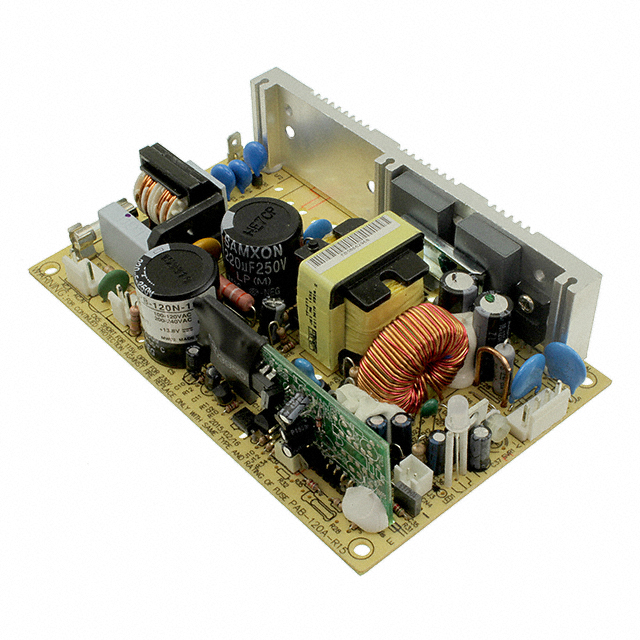

BATT CHRGR OPEN FRAME 27.6V 4.3A

Part	Approval Agency	Weight	Operating Temperature [Max]	Operating Temperature [Min]	Power - Max [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Features	Battery Cell Size	Voltage - Nominal	Mounting Type	Battery Chemistry	Termination Style	Charge Current - Max [Max]	Number of Cells	Type	Voltage - Input [Max]	Voltage - Input [Min]
MEAN WELL USA Inc. PB-120N-27P	CB CE cULus GS	1100 g	45 °C	-10 °C	118.68 W	144 mm	90 mm	1.3 in	3.54 in	5.67 "	33 mm	LED Indicator	24 V	27.6 V	Chassis Mount	Lead Acid	Rectangular Connector	4.3 A	1	Open Frame	132 VAC 264 VAC	88 VAC 176 VAC

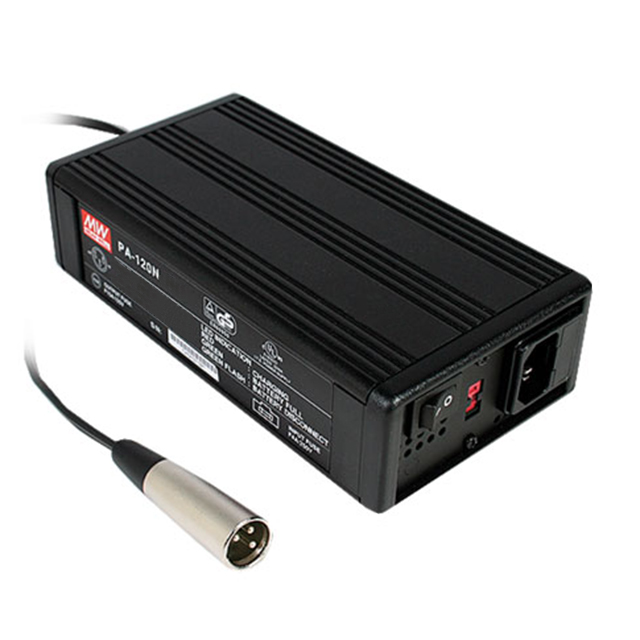

MEAN WELL USA Inc. PB-120N-54C	CB CE cULus GS	1100 g	45 °C	-10 °C	121.44 W	180 mm	96 mm	1.93 in	3.78 in	7.09 in	49 mm	LED Indicator	54 V	55.2 V	Desktop	Lead Acid	DIN 3 Pin	2.2 A	1	Enclosed	132 VAC 264 VAC	88 VAC 176 VAC
MEAN WELL USA Inc. PB-120N-54P	CB CE cULus GS	1100 g	45 °C	-10 °C	121.44 W	144 mm	90 mm	1.3 in	3.54 in	5.67 "	33 mm	LED Indicator	54 V	55.2 V	Chassis Mount	Lead Acid	Rectangular Connector	2.2 A	1	Open Frame	132 VAC 264 VAC	88 VAC 176 VAC

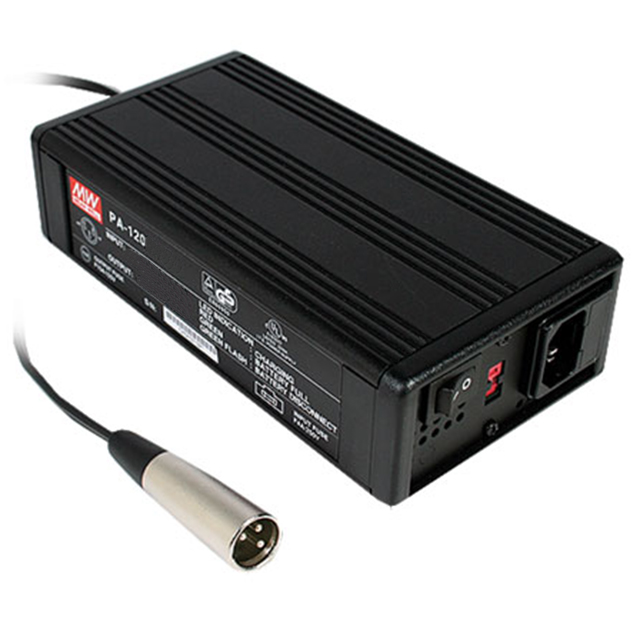

MEAN WELL USA Inc. PB-120P-27C	CB CE cULus GS	1240 g	45 °C	-10 °C	118.68 W	180 mm	96 mm	1.93 in	3.78 in	7.09 in	49 mm	LED Indicator	24 V	27.6 V	Desktop	Lead Acid	DIN 3 Pin	4.3 A	1	Enclosed	132 VAC 264 VAC	88 VAC 176 VAC
MEAN WELL USA Inc. PB-120N-13C	CB CE cULus GS	1100 g	45 °C	-10 °C	99.36 W	180 mm	96 mm	1.93 in	3.78 in	7.09 in	49 mm	LED Indicator	12 V	13.8 V	Desktop	Lead Acid	XLR 3 Pin	7.2 A	1	Enclosed	132 VAC 264 VAC	88 VAC 176 VAC
MEAN WELL USA Inc. PB-120P-13C	CB CE cULus GS	1240 g	45 °C	-10 °C	99.36 W	180 mm	96 mm	1.93 in	3.78 in	7.09 in	49 mm	LED Indicator	12 V	13.8 V	Desktop	Lead Acid	DIN 3 Pin	7.2 A	1	Enclosed	132 VAC 264 VAC	88 VAC 176 VAC
MEAN WELL USA Inc. PB-120N-27C	CB CE cULus GS	1100 g	45 °C	-10 °C	118.68 W	180 mm	96 mm	1.93 in	3.78 in	7.09 in	49 mm	LED Indicator	24 V	27.6 V	Desktop	Lead Acid	XLR 3 Pin	4.3 A	1	Enclosed	132 VAC 264 VAC	88 VAC 176 VAC
