DBUH Series
Manufacturer: Cinch Connectivity Solutions
Beta
⌘K
CONN D-SUB RCPT 25POS CRIMP
| Part | Color | Dielectric Material | Wire Gauge [Max] | Wire Gauge [Min] | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Material Flammability Rating | Contact Type | Connector Type | Connector Style | Termination | Mounting Type | Contact Finish Thickness | Current Rating (Amps) | Shell Material, Finish [custom] | Shell Material, Finish [custom] | Shell Size, Connector Layout | Shell Size, Connector Layout [x] | Contact Finish | Number of Rows [custom] | Number of Positions | Flange Feature | Note | Mating Cycles |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cinch Connectivity Solutions | Black | Glass Filled Nylon Polyamide (PA) | 28 AWG | 19.5 AWG | Copper Alloy | -65 ░C | 125 °C | UL94 V-0 | Signal | Receptacle Female Sockets | D-Sub | Crimp | Free Hanging (In-Line) | Flash | 5 A | Steel | Clear Chromate Plated Zinc | B DB | 3 | Gold | 2 | 25 | Housing/Shell (Unthreaded) | ||

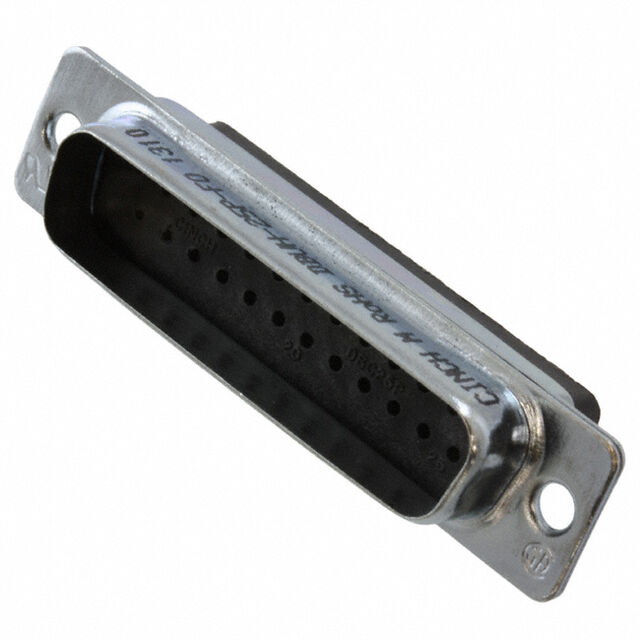

 Cinch Connectivity Solutions | Black | Glass Filled Nylon Polyamide (PA) | -65 ░C | 125 °C | Signal | Plug for Male Contacts | D-Sub | Free Hanging (In-Line) | Steel | Clear Chromate Plated Zinc | B DB | 3 | 2 | 25 | Housing/Shell (Unthreaded) | Contacts Not Included | 500 | ||||||||

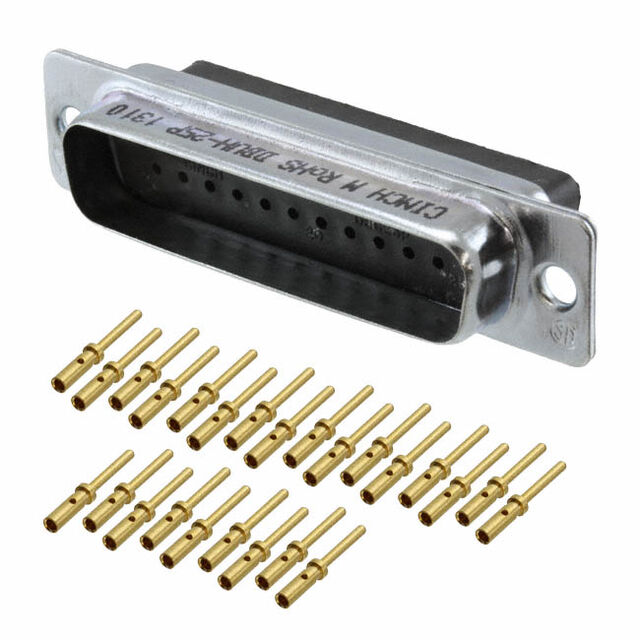

 Cinch Connectivity Solutions | Black | Glass Filled Nylon Polyamide (PA) | 28 AWG | 19.5 AWG | Copper Alloy | -65 ░C | 125 °C | UL94 V-0 | Signal | Plug Male Pins | D-Sub | Crimp | Free Hanging (In-Line) | Flash | 5 A | Steel | Clear Chromate Plated Zinc | B DB | 3 | Gold | 2 | 25 | Housing/Shell (Unthreaded) |
