CL-SB-22 Series

Manufacturer: Nidec Components Corporation

Catalog

SLIDE SWITCH, DPDT, LATCHED, 0.2A, 12VDC, SOLDER TERMINAL, SURFACE MOUNT-STRAIGHT, ROHS COMPLAINT

Part	Circuit	Actuator Length [x]	Termination Style	Switch Travel	Contact Timing	Actuator Material	Mounting Type	Switch Function	Contact Finish	Operating Temperature [Max]	Operating Temperature [Min]	Electrical Life	Actuator Type	Voltage Rating - DC	Current Rating (Amps)	Operating Force	Contact Material
Nidec Components Corporation CL-SB-22B-02T	DPDT	2 mm	Gull Wing	2 mm	Non-Shorting	Nylon Polyamide (PA)	Surface Mount	On-On	Gold	85 °C	-40 °C	10000 Cycles	Standard	12 V	200 mA	153 gf	Copper
Nidec Components Corporation CL-SB-22A-11	DPDT	2 mm	J Lead	2 mm	Non-Shorting	Nylon Polyamide (PA)	Surface Mount Right Angle	On-On	Silver	85 °C	-40 °C	10000 Cycles	Standard	12 V	200 mA	153 gf	Copper

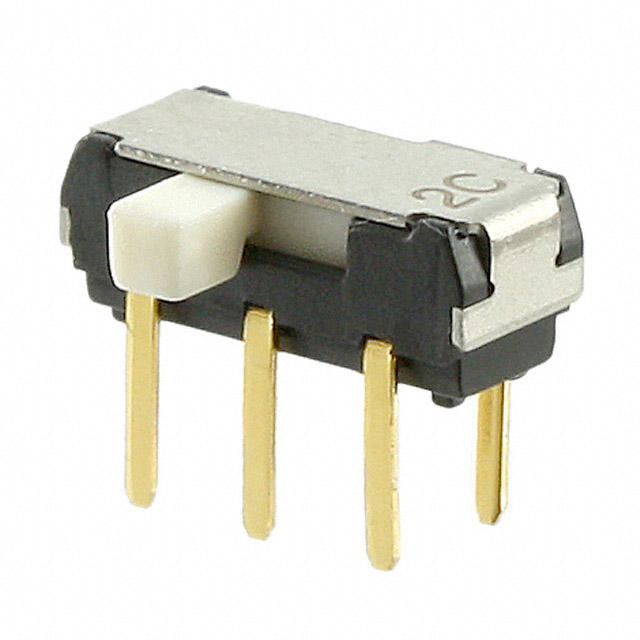

Nidec Components Corporation CL-SB-22C-12	DPDT	2 mm	PC Pin	2 mm	Non-Shorting	Nylon Polyamide (PA)	Through Hole Right Angle	On-On	Gold	85 °C	-40 °C	10000 Cycles	Standard	12 V	200 mA	153 gf	Copper

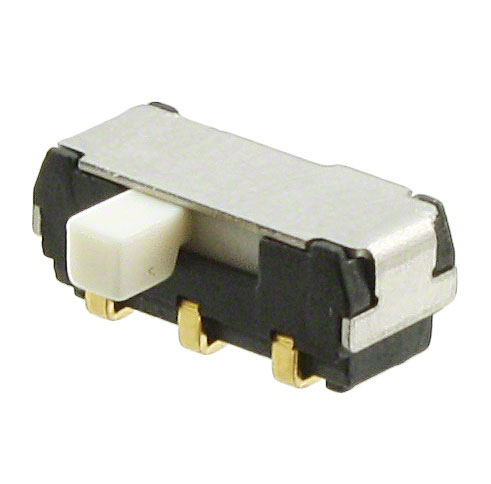

Nidec Components Corporation CL-SB-22A-12T	DPDT	2 mm	J Lead	2 mm	Non-Shorting	Nylon Polyamide (PA)	Surface Mount Right Angle	On-On	Gold	85 °C	-40 °C	10000 Cycles	Standard	12 V	200 mA	153 gf	Copper
Nidec Components Corporation CL-SB-22A-02T	DPDT	2 mm	J Lead	2 mm	Non-Shorting	Nylon Polyamide (PA)	Surface Mount	On-On	Gold	85 °C	-40 °C	10000 Cycles	Standard	12 V	200 mA	153 gf	Copper

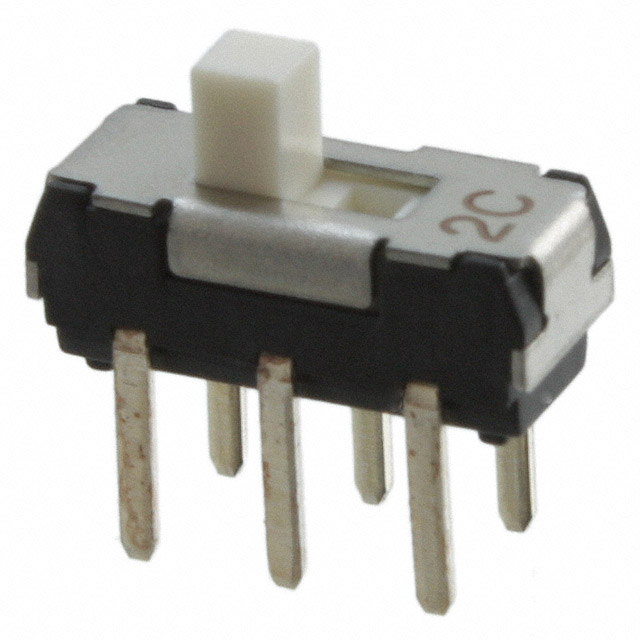

Nidec Components Corporation CL-SB-22C-01	DPDT	2 mm	PC Pin	2 mm	Non-Shorting	Nylon Polyamide (PA)	Through Hole	On-On	Silver	85 °C	-40 °C	10000 Cycles	Standard	12 V	200 mA	153 gf	Copper

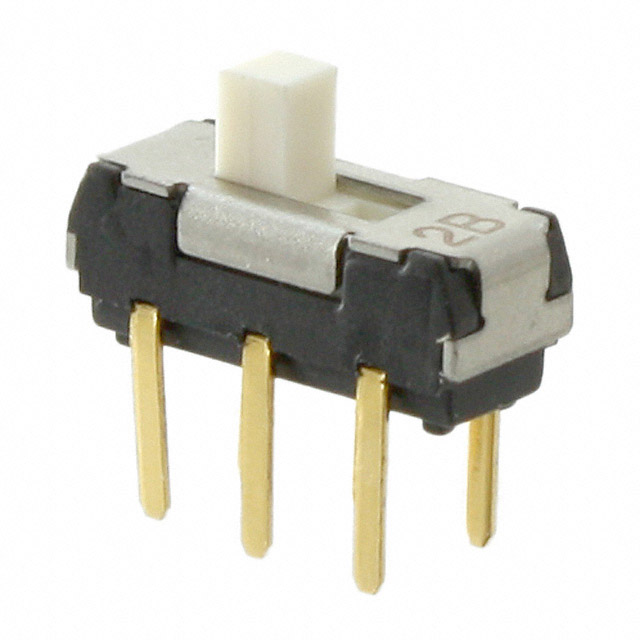

Nidec Components Corporation CL-SB-22C-02	DPDT	2 mm	PC Pin	2 mm	Non-Shorting	Nylon Polyamide (PA)	Through Hole	On-On	Gold	85 °C	-40 °C	10000 Cycles	Standard	12 V	200 mA	153 gf	Copper
Nidec Components Corporation CL-SB-22B-02	DPDT	2 mm	Gull Wing	2 mm	Non-Shorting	Nylon Polyamide (PA)	Surface Mount	On-On	Gold	85 °C	-40 °C	10000 Cycles	Standard	12 V	200 mA	153 gf	Copper
Nidec Components Corporation CL-SB-22A-01T	DPDT	2 mm	J Lead	2 mm	Non-Shorting	Nylon Polyamide (PA)	Surface Mount	On-On	Silver	85 °C	-40 °C	10000 Cycles	Standard	12 V	200 mA	153 gf	Copper
Nidec Components Corporation CL-SB-22B-01T	DPDT	2 mm	Gull Wing	2 mm	Non-Shorting	Nylon Polyamide (PA)	Surface Mount	On-On	Silver	85 °C	-40 °C	10000 Cycles	Standard	12 V	200 mA	153 gf	Copper
