S-1212 Series
Manufacturer: ABLIC Inc.
Beta
⌘K
IC REG LINEAR 7V 250MA SOT23-5
| Part | Current - Quiescent (Iq) | Number of Regulators | Package / Case | Control Features | Voltage - Input (Max) [Max] | Voltage Dropout (Max) | Voltage - Output (Min/Fixed) | Supplier Device Package | Current - Supply (Max) [Max] | PSRR | Current - Output | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Protection Features | Output Configuration | Package / Case [y] | Package / Case [x] | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ABLIC Inc. | 3.5 µA | 1 | SC-74A SOT-753 | Enable | 36 V | 0.8 V | 7 V | SOT-23-5 | 8.5 µA | 35 dB | 250 mA | Surface Mount | -40 °C | 105 °C | Over Current Thermal Shutdown | Positive | |||
 ABLIC Inc. | 3.5 µA | 1 | 8-SOIC Exposed Pad | Enable | 36 V | 0.8 V | 5 V | 8-HSOPA | 8.5 µA | 40 dB | 250 mA | Surface Mount | -40 °C | 105 °C | Over Current Thermal Shutdown | Positive | 3.9 mm | 0.154 in | |
ABLIC Inc. | 3.5 µA | 1 | SC-74A SOT-753 | Enable | 36 V | 0.8 V | 8 V | SOT-23-5 | 8.5 µA | 35 dB | 250 mA | Surface Mount | -40 °C | 105 °C | Over Current Thermal Shutdown | Positive | |||
 ABLIC Inc. | 3.5 µA | 1 | SOT-89-5/6 | Enable | 36 V | 0.8 V | 8 V | SOT-89-5 | 8.5 µA | 35 dB | 250 mA | Surface Mount | -40 °C | 105 °C | Over Current Thermal Shutdown | Positive | |||
 ABLIC Inc. | 8.5 µA | 1 | SOT-89-5/6 | Enable | 36 V | 0.8 V | 16 V | SOT-89-5 | 30 dB | 250 mA | Surface Mount | -40 °C | 105 °C | Over Current Over Temperature | Positive | ||||
ABLIC Inc. | 3.5 µA | 1 | SC-74A SOT-753 | Enable | 36 V | 0.8 V | 3 V | SOT-23-5 | 8.5 µA | 45 dB | 250 mA | Surface Mount | -40 °C | 105 °C | Over Current Thermal Shutdown | Positive | |||

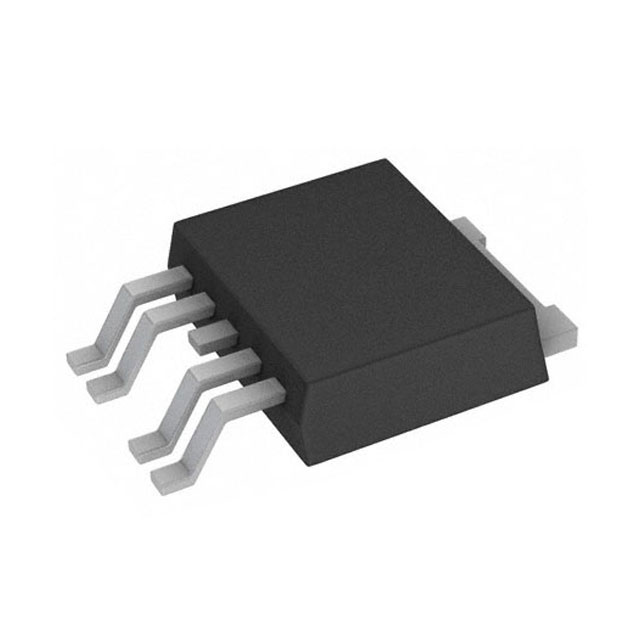

 ABLIC Inc. | 8.5 µA | 1 | DPAK (4 Leads + Tab) TO-252-5 TO-252-5 DPAK (4 Leads + Tab) TO-252AD | Enable | 36 V | 0.8 V | 12 V | TO-252-5S | 30 dB | 250 mA | Surface Mount | -40 °C | 105 °C | Over Current Over Temperature | Positive | ||||
 ABLIC Inc. | 3.5 µA | 1 | 8-SOIC Exposed Pad | Enable | 36 V | 0.8 V | 3.3 V | 8-HSOPA | 8.5 µA | 45 dB | 250 mA | Surface Mount | -40 °C | 105 °C | Over Current Thermal Shutdown | Positive | 3.9 mm | 0.154 in | |
ABLIC Inc. | 3.5 µA | 1 | SC-74A SOT-753 | Enable | 36 V | 0.8 V | 5 V | SOT-23-5 | 8.5 µA | 40 dB | 250 mA | Surface Mount | -40 °C | 105 °C | Over Current Thermal Shutdown | Positive | |||
 ABLIC Inc. | 3.5 µA | 1 | 4 Leads + 2 Fins 6-SOIC Variation | Enable | 36 V | 0.8 V | 3.3 V | 8.5 µA | 45 dB | 250 mA | Surface Mount | -40 °C | 105 °C | Over Current Thermal Shutdown | Positive | 0.154 in 3.9 mm |
