C905 Series

Catalog

PMI .290" NO LENS GRN 2V BIPIN L

Part	Termination Style	Type	Panel Cutout Shape	Wavelength - Peak	Lens Size [diameter]	Lens Style	Millicandela Rating	Lamp Color	Viewing Angle	Voltage	Panel Cutout Dimensions	Panel Cutout Dimensions	Ratings

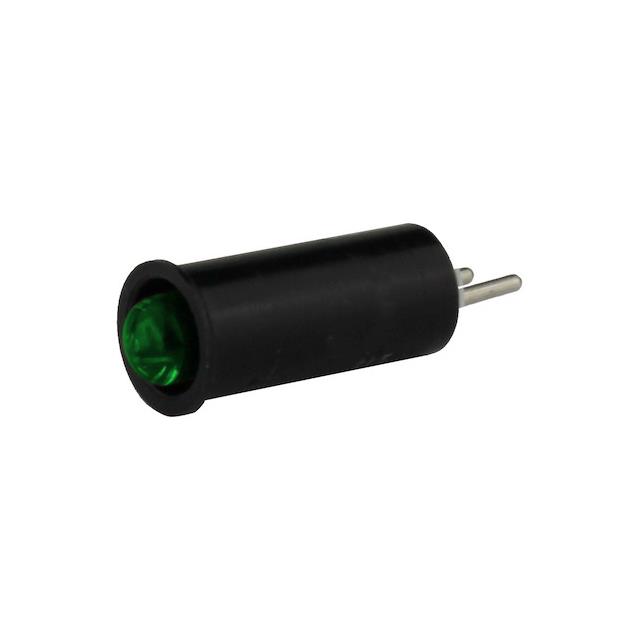

Visual Communications Company - VCC C905-GLP2-O	Wire Wrap 0.201" (5.1mm)	LED	Round	565 nm	5.1 mm Dia	Round with Domed Top	2.3 mcd	Green	50 °	2 V	7.37 mm	0.29 in
Visual Communications Company - VCC C905-NWG120-O-R-	Wire Wrap 0.201" (5.1mm)	LED	Round	520 nm	5.1 mm Dia	Round with Domed Top	2400 mcd	Green	45 °	120 V	7.37 mm	0.29 in	AC
Visual Communications Company - VCC C905-GLP28H-O	Wire Wrap 0.201" (5.1mm)	LED	Round	565 nm	5.1 mm Dia	Round with Domed Top	2.3 mcd	Green	50 °		7.37 mm	0.29 in
