RP100 Series

Catalog

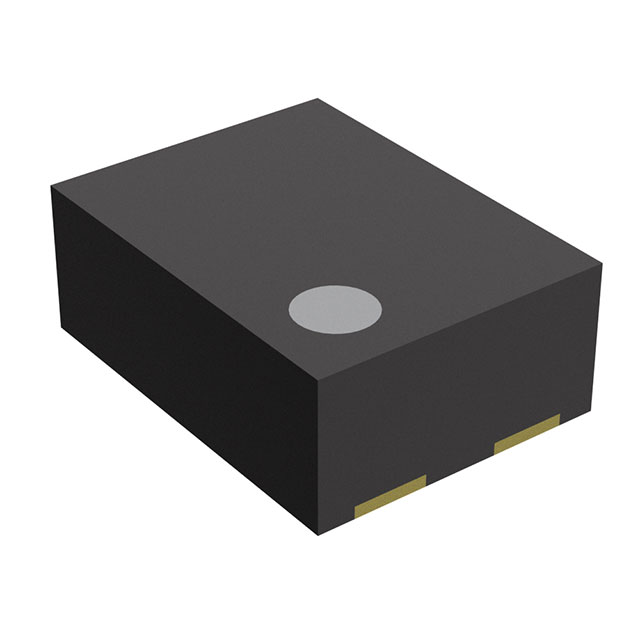

IC REG LINEAR 2.8V 200MA DFN

Part	Control Features	Protection Features	Package / Case	Voltage Dropout (Max) [Max]	Output Configuration	Current - Output	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Max) [Max]	Supplier Device Package	Voltage - Output (Min/Fixed)	Current - Quiescent (Iq)	Number of Regulators	Mounting Type	PSRR	Voltage Dropout (Max)	Voltage - Output (Min/Fixed) [Min]
Nisshinbo Micro Devices Inc. RP100K281D-TR	Enable	Over Current	4-UDFN Exposed Pad	0.23 V	Positive	0.2 A	85 °C	-40 C	5.25 V	DFN(PL)1612-4	2.8 V	25 µA	1	Surface Mount
Nisshinbo Micro Devices Inc. RP100N201D-TR-FE	Enable	Over Current	SC-74A SOT-753		Positive	0.2 A	85 °C	-40 C	5.25 V	SOT-23-5	2 V	25 µA	1	Surface Mount	75 dB	0.3 V
Nisshinbo Micro Devices Inc. RP100N211D-TR-FE	Enable	Over Current	SC-74A SOT-753		Positive	0.2 A	85 °C	-40 C	5.25 V	SOT-23-5	2.1 V	25 µA	1	Surface Mount		0.3 V
Nisshinbo Micro Devices Inc. RP100N121D-TR-FE	Enable	Over Current	SC-74A SOT-753	0.5 V	Positive	0.2 A	85 °C	-40 C	5.25 V	SOT-23-5	1.2 V	25 µA	1	Surface Mount	75 dB
Nisshinbo Micro Devices Inc. RP100K191D-TR	Enable	Over Current	4-UDFN Exposed Pad	0.34 V	Positive	0.2 A	85 °C	-40 C	5.25 V	DFN(PL)1612-4		25 µA	1	Surface Mount	75 dB		1.9 V
