4N35 Series

Catalog

OPTOISO 3.55KV TRANS W/BASE 6SMD

Part	Package / Case	Operating Temperature (Min)	Operating Temperature (Max)	Vce Saturation (Max)	Output Type	Voltage - Isolation	Voltage - Output (Max)	Input Type	Current - DC Forward (If) (Max)	Number of Channels	Current Transfer Ratio (Min)	Fall Time (Typ)	Rise Time (Typ)	Current - Output / Channel	Voltage - Forward (Vf) (Typ)	Package Name	Mounting Type	Package Length	Package Width

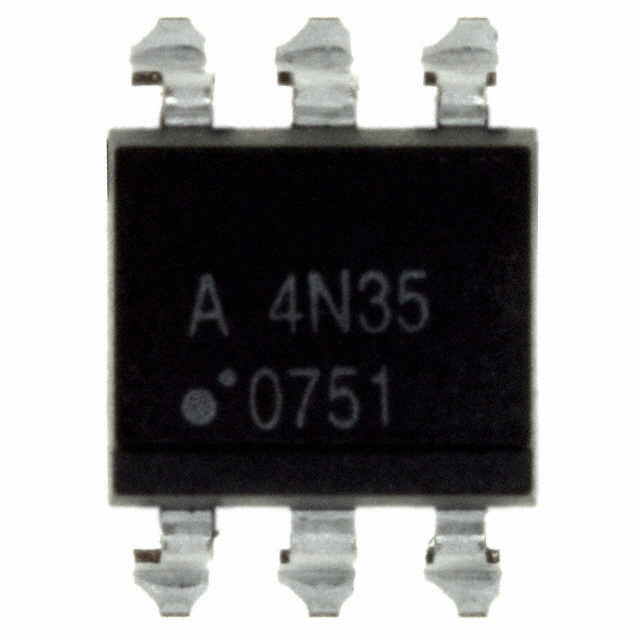

Broadcom Limited 4N35-300E	6-SMD Gull Wing	-55 °C	100 °C	300 mV	Transistor with Base	3550 Vrms	30 V	DC	60 mA	1	100 %	3 µs	3 µs	100 mA	1.2 V	6-SMD	Surface Mount

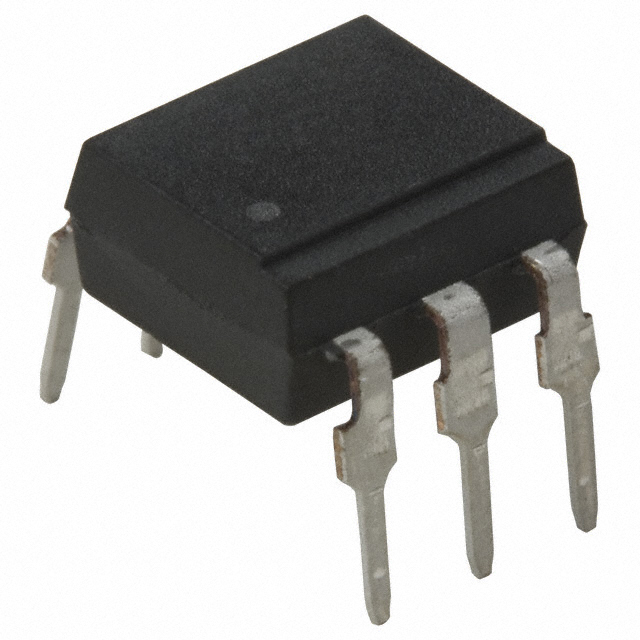

Broadcom Limited 4N35-000E		-55 °C	100 °C	300 mV	Transistor with Base	3550 Vrms	30 V	DC	60 mA	1	100 %	3 µs	3 µs	100 mA	1.2 V	6-DIP	Through Hole	0.3 in	7.62 mm
Broadcom Limited 4N35-060E		-55 °C	100 °C	300 mV	Transistor with Base	3550 Vrms	30 V	DC	60 mA	1	100 %	3 µs	3 µs	100 mA	1.2 V	6-DIP	Through Hole	0.3 in	7.62 mm
Broadcom Limited 4N35-W60E		-55 °C	100 °C	300 mV	Transistor with Base	3550 Vrms	30 V	DC	60 mA	1	100 %	3 µs	3 µs	100 mA	1.2 V	6-DIP	Through Hole	10.16 mm	10.16 mm

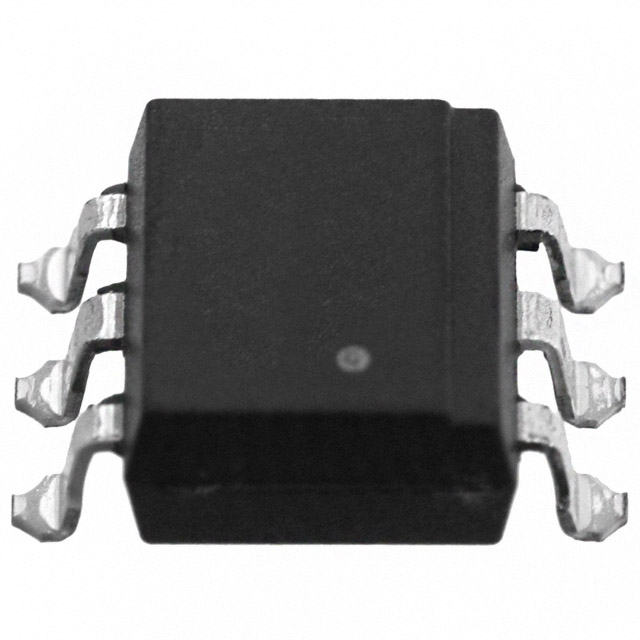

Broadcom Limited 4N35-560E	6-SMD Gull Wing	-55 °C	100 °C	300 mV	Transistor with Base	3550 Vrms	30 V	DC	60 mA	1	100 %	3 µs	3 µs	100 mA	1.2 V	6-SMD	Surface Mount
Broadcom Limited 4N35-W00E		-55 °C	100 °C	300 mV	Transistor with Base	3550 Vrms	30 V	DC	60 mA	1	100 %	3 µs	3 µs	100 mA	1.2 V	6-DIP	Through Hole	10.16 mm	10.16 mm
Broadcom Limited 4N35-500E	6-SMD Gull Wing	-55 °C	100 °C	300 mV	Transistor with Base	3550 Vrms	30 V	DC	60 mA	1	100 %	3 µs	3 µs	100 mA	1.2 V	6-SMD	Surface Mount
Broadcom Limited 4N35-360E	6-SMD Gull Wing	-55 °C	100 °C	300 mV	Transistor with Base	3550 Vrms	30 V	DC	60 mA	1	100 %	3 µs	3 µs	100 mA	1.2 V	6-SMD	Surface Mount
