NPTC191 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

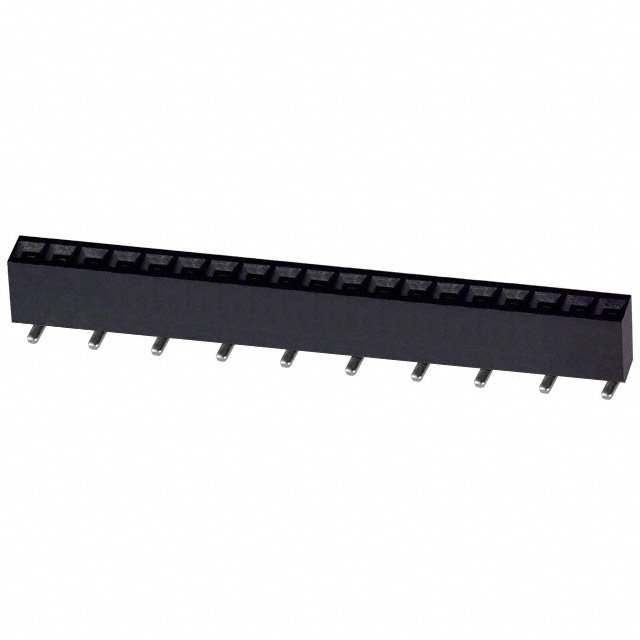

CONN HDR 19POS 0.1 TIN SMD
| Part | Contact Material | Insulation Material | Contact Shape | Number of Positions Loaded | Termination | Insulation Height | Insulation Height | Number of Rows | Voltage Rating | Material Flammability Rating | Mounting Type | Number of Positions | Contact Type | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Fastening Type | Current Rating (Amps) | Contact Finish - Post | Insulation Color | Pitch - Mating | Pitch - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Phosphor Bronze | Nylon 6T Polyamide (PA6T) | Square | All | Solder | 0.28 in | 7.1 mm | 1 | 250 V | UL94 V-0 | Surface Mount | 19 | Female Socket | -40 C | 105 ░C | Header Top or Bottom Entry | Push-Pull | 3 A | Tin | Black | 0.1 " | 2.54 mm |
 Sullins Connector Solutions | Phosphor Bronze | Nylon 6T Polyamide (PA6T) | Square | All | Solder | 0.28 in | 7.1 mm | 1 | 250 V | UL94 V-0 | Surface Mount | 19 | Female Socket | -40 C | 105 ░C | Header Top or Bottom Entry | Push-Pull | 3 A | Tin | 0.1 " | 2.54 mm |
