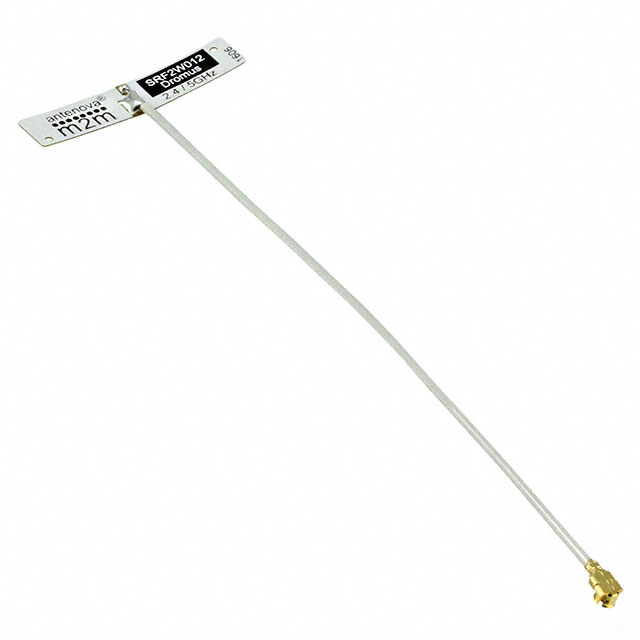

SRF2W012 Series

Manufacturer: Antenova

Catalog

RF ANT 2.4GHZ/5.4GHZ FLAT PATCH

Part	Termination	Termination	Number of Bands	Applications	RF Family/Standard	VSWR	Return Loss	Frequency Group	Frequency Range [Max]	Frequency Range [Min]	Antenna Type	Mounting Type	Gain	Height (Max) [z]	Height (Max) [z]
Antenova SRF2W012-50	IPEX MHF1	I-PEX MHF1 U.FL (UMCC)	2	WLAN	WiFi	1.8	-14 dB	SHF UHF	2.5 GHz 5.9 GHz	2.4 GHz 4.9 GHz	Flat Patch	Adhesive	4 dBi	0.15 mm	0.006 in
Antenova SRF2W012-150	IPEX MHF1	I-PEX MHF1 U.FL (UMCC)	2	WLAN	WiFi	1.8	-14 dB	SHF UHF	2.5 GHz 5.9 GHz	2.4 GHz 4.9 GHz	Flat Patch	Adhesive	4 dBi	0.15 mm	0.006 in
Antenova SRF2W012-100	IPEX MHF1	I-PEX MHF1 U.FL (UMCC)	2	WLAN	WiFi	1.8	-14 dB	SHF UHF	2.5 GHz 5.9 GHz	2.4 GHz 4.9 GHz	Flat Patch	Adhesive	4 dBi	0.15 mm	0.006 in
