WB246D1 Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH ROCKER DPDT 20A 125V
| Part | Mounting Type | Actuator Type | Ingress Protection | Termination Style | Actuator Marking | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Color - Actuator/Cap | Circuit | Switch Function | Voltage Rating - AC | Approval Agency | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

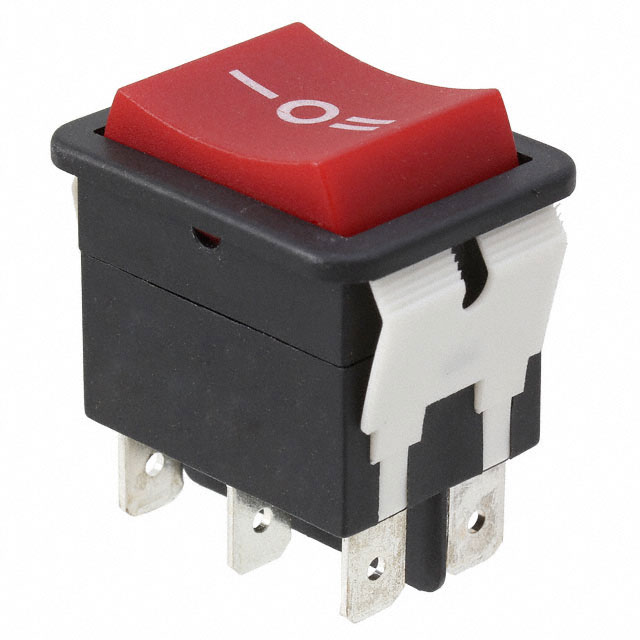

 E-Switch | Panel Mount Snap-In | Concave (Curved) | IP55 - Dust Protected Water Resistant | Quick Connect - 0.250" (6.3mm) | - O = | 30 mm | 22 mm | Red | DPDT | On-Off-On | 125 V | CE cULus TUV | 20 A |

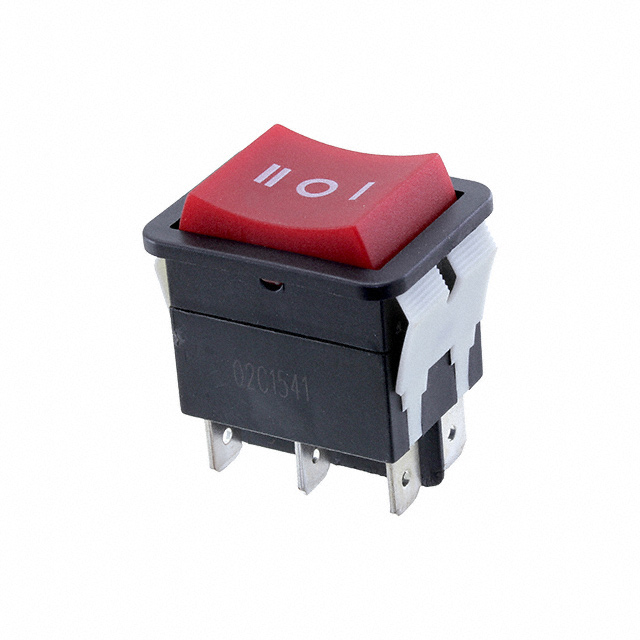

 E-Switch | Panel Mount Snap-In | Concave (Curved) | IP55 - Dust Protected Water Resistant | Quick Connect - 0.250" (6.3mm) | I O II | 30 mm | 22 mm | Red | DPDT | On-Off-On | 125 V | CE cULus TUV | 20 A |

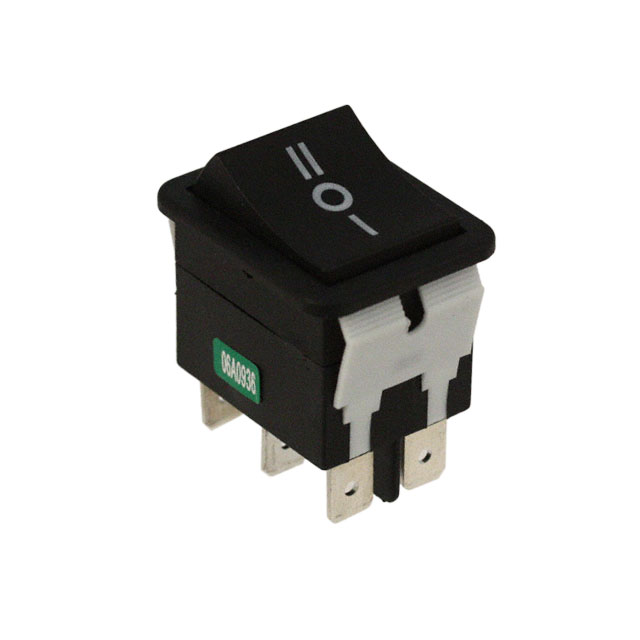

 E-Switch | Panel Mount Snap-In | Concave (Curved) | IP55 - Dust Protected Water Resistant | Quick Connect - 0.250" (6.3mm) | - O = | 30 mm | 22 mm | Black | DPDT | On-Off-On | 125 V | CE cULus TUV | 20 A |
