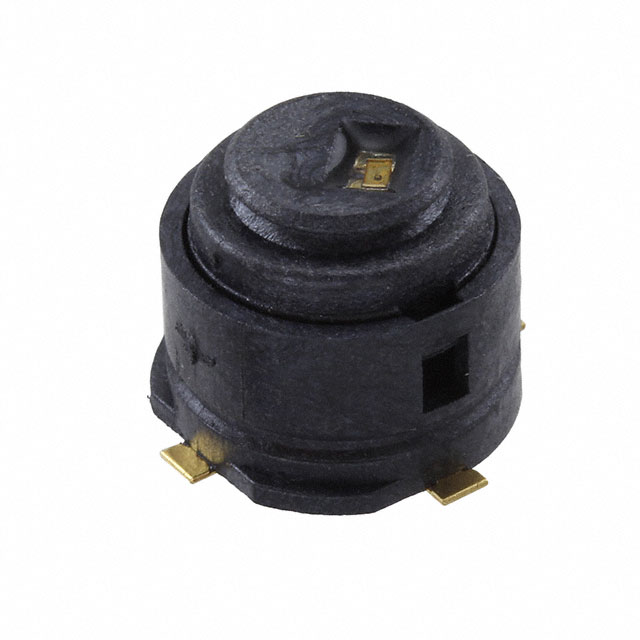

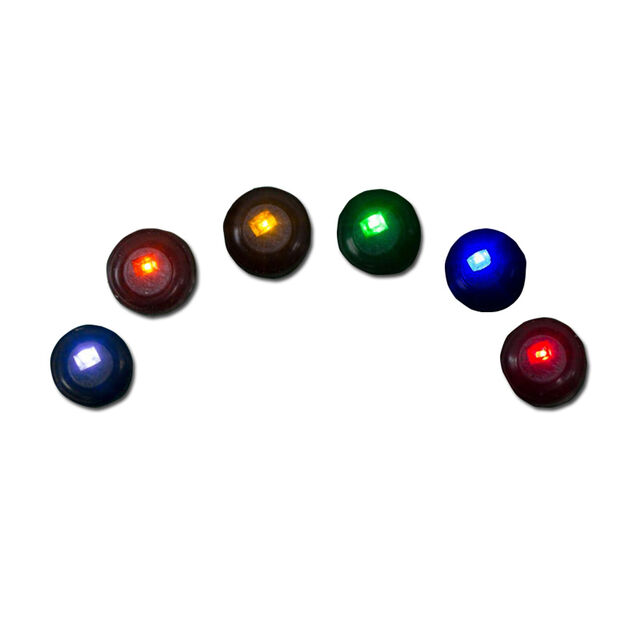

14AP-L1 Series

Catalog

SWITCH PUSH SPST-NO .1A 30V

Part	Mechanical Life	Electrical Life	Termination Style	Type	Actuator Marking	Voltage Rating - DC	Features	Illumination Voltage (Nominal)	Illumination Type, Color	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Color - Actuator/Cap	Current Rating (Amps)	Mounting Type	Actuator Type	Circuit
Grayhill Inc. 14AP-L1-03-W	100000 Cycles	100000 Cycles	SMD (SMT) Tab	Keyswitch Illuminated	No Marking	30 V	Board Guide	2.85 VDC	LED White	85 °C	-40 C	Off-Mom	Clear	100 mA	Surface Mount	Button Round	SPST-NO
Grayhill Inc. 14AP-L1-03-B	100000 Cycles	100000 Cycles	SMD (SMT) Tab	Keyswitch Illuminated	No Marking	30 V	Board Guide	2.85 VDC	Blue LED	85 °C	-40 C	Off-Mom	Clear	100 mA	Surface Mount	Button Round	SPST-NO
Grayhill Inc. 14AP-L1-03-R	100000 Cycles	100000 Cycles	SMD (SMT) Tab	Keyswitch Illuminated	No Marking	30 V	Board Guide	2 VDC	LED Red	85 °C	-40 C	Off-Mom	Clear	100 mA	Surface Mount	Button Round	SPST-NO
Grayhill Inc. 14AP-L1-02-R	200000 Cycles	200000 Cycles	SMD (SMT) Tab	Keyswitch Illuminated	No Marking	30 V	Board Guide	2 VDC	LED Red	85 °C	-40 C	Off-Mom	Clear	100 mA	Surface Mount	Button Round	SPST-NO
Grayhill Inc. 14AP-L1-03-Y	100000 Cycles	100000 Cycles	SMD (SMT) Tab	Keyswitch Illuminated	No Marking	30 V	Board Guide	2 VDC	LED Yellow	85 °C	-40 C	Off-Mom	Clear	100 mA	Surface Mount	Button Round	SPST-NO
