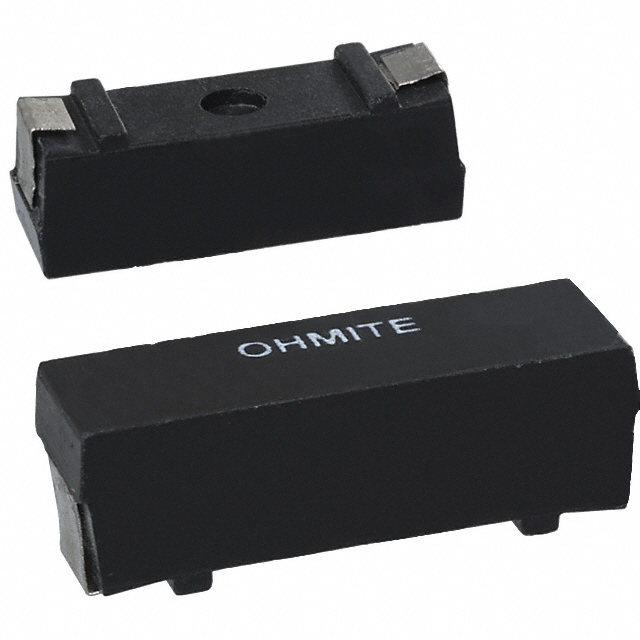

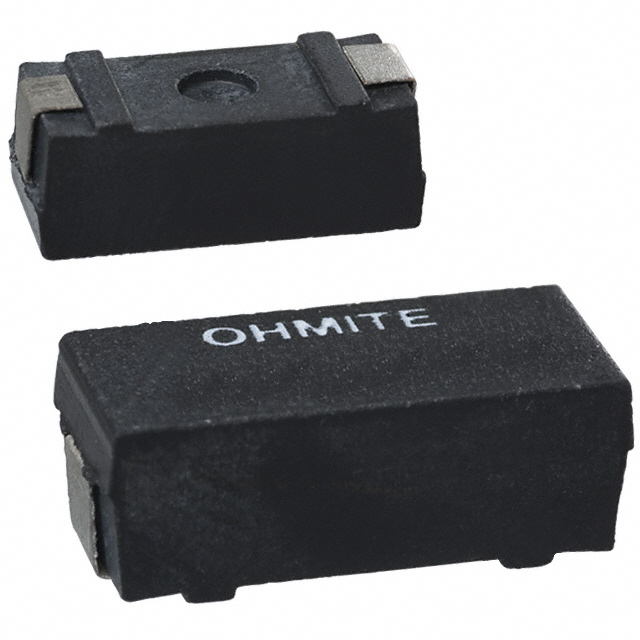

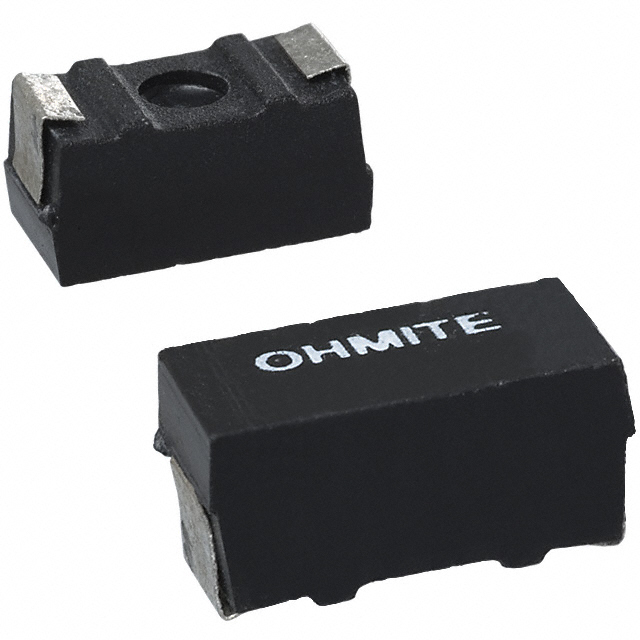

RW Series

Manufacturer: Ohmite

Catalog

WIREWOUND RESISTORS - SMD 3WATT .036OHM 5%

Part	Package / Case	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Number of Terminations [custom]	Composition	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Supplier Device Package	Power (Watts)	Features	Resistance	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Temperature Coefficient	Size / Dimension [y]	Height - Seated (Max) [Max] [z]	Height - Seated (Max)	Size / Dimension [x]	Size / Dimension [y]	Supplier Device Package
Ohmite RW3R0DBR036JE	6327 J-Lead	5 %	-55 C	150 °C	2	Wirewound	0.231 in	5.87 mm	SMD J-Lead Recessed	3 W	Current Sense	36 mOhms	6.93 mm	15.88 mm	0.625 "	0.273 "
Ohmite RW2R0CBR330JE	4122 J-Lead	5 %	-55 C	150 °C	2	Wirewound			SMD J-Lead Pedestal	2 W	Current Sense	330 mOhms	0.226 in	0.407 in	10.34 mm		90 ppm/°C	5.74 mm	0.227 in	5.77 mm
Ohmite RW3R5EAR200JET	8127 J-Lead	5 %	-55 C	150 °C	2	Wirewound	0.278 "		SMD J-Lead Recessed	3.5 W	Current Sense	200 mOhms	0.273 "	0.811 in	20.6 mm		90 ppm/°C	6.93 mm		7.06 mm
Ohmite RW2S0DA47R0JET	4524 J-Lead	5 %	-55 C	150 °C	2	Wirewound	0.231 in	5.87 mm	SMD J-Lead Pedestal	2 W	Current Sense	47 Ohms			11.56 mm	6.1 mm	20 ppm/°C				0.455 "	0.24 "
Ohmite RW3R0DBR100JET	6327 J-Lead	5 %	-55 C	150 °C	2	Wirewound	0.231 in	5.87 mm	SMD J-Lead Recessed	3 W	Current Sense	0.1 Ohms	6.93 mm	15.88 mm	0.625 "	0.273 "	90 ppm/°C
Ohmite RW1S0BAR075JE	2512 J-Lead	5 %	-55 C	150 °C	2	Wirewound	0.141 "	3.58 mm	SMD J-Lead Pedestal	1 W	Current Sense	75 mOhms	0.136 in	0.246 in	6.25 mm	3.45 mm
Ohmite RW1S0BAR010JE	2512 J-Lead	5 %	-55 C	150 °C	2	Wirewound	0.141 "	3.58 mm	SMD J-Lead Pedestal	1 W	Current Sense	10 mOhms	0.136 in	0.246 in	6.25 mm	3.45 mm
Ohmite RW3R0DB150RJET	6327 J-Lead	5 %	-55 C	150 °C	2	Wirewound	0.231 in	5.87 mm	SMD J-Lead Recessed	3 W	Current Sense	150 Ohms	6.93 mm	15.88 mm	0.625 "	0.273 "	20 ppm/°C
Ohmite RW0S6BB5R00FET	2010 (5025 Metric)	1 %	-55 C	150 °C	2	Wirewound				600 mW	Current Sense	5 Ohms	0.1 in	0.202 "	5.14 mm	2.54 mm	50 ppm/░C		0.14 "	3.55 mm			2010
Ohmite RW3R5EAR100JE	8127 J-Lead	5 %	-55 C	150 °C	2	Wirewound	0.278 "		8127 SMD J-Lead Recessed	3.5 W	Current Sense	0.1 Ohms	0.273 "	0.811 in	20.6 mm		90 ppm/°C	6.93 mm		7.06 mm
