745-054 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SINGLE FML 54POS 0.100

Part	Material - Insulation	Termination Rows	Color	Card Type	Read Out	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Contact Type	Mounting Type	Number of Rows	Contact Material	Card Thickness [Max]	Card Thickness [Min]	Number of Positions	Contact Finish	Number of Positions/Bay/Row	Pitch	Pitch	Gender	Contact Finish Thickness	Contact Finish Thickness	Termination Rows [custom]	Number of Rows [custom]
EDAC Inc. 745-054-540-106	Polyester Thermoplastic	1	Black	Non Specified - Single Edge	Single	-40 C	105 ░C	Press-Fit Wire Wrap	Cantilever	Through Hole	1	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	54	Gold	54	0.1 "	2.54 mm	Female	30 Áin	0.76 Ám
EDAC Inc. 745-054-540-101	Polyester Thermoplastic	1	Black	Non Specified - Single Edge	Single	-40 C	105 ░C	Press-Fit Wire Wrap	Cantilever	Through Hole	1	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	54	Gold	54	0.1 "	2.54 mm	Female	30 Áin	0.76 Ám

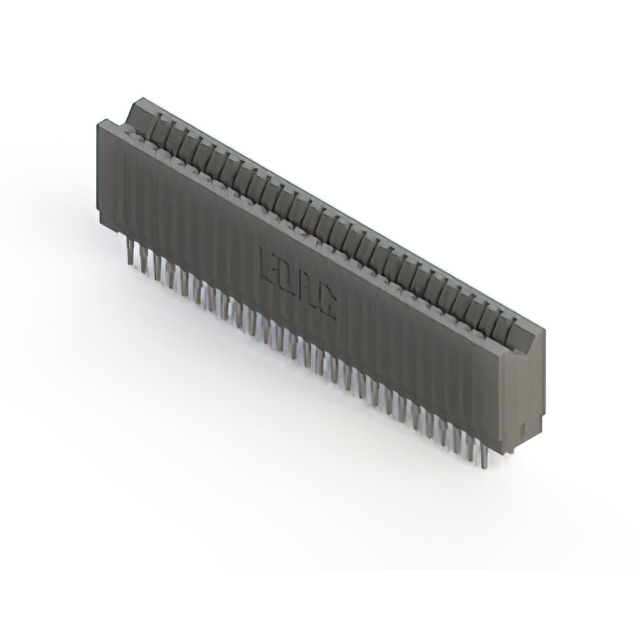

EDAC Inc. 745-054-540-206	Polyester Thermoplastic		Black	Non Specified - Dual Edge	Dual	-40 C	105 ░C	Press-Fit Wire Wrap	Cantilever	Through Hole		Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	54	Gold	27	0.1 "	2.54 mm	Female	30 Áin	0.76 Ám	2	2
EDAC Inc. 745-054-522-106	Polyester Thermoplastic	1	Black	Non Specified - Single Edge	Single	-40 C	105 ░C	Press-Fit	Cantilever	Through Hole	1	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	54	Gold	54	0.1 "	2.54 mm	Female	30 Áin	0.76 Ám
EDAC Inc. 745-054-541-101	Polyester Thermoplastic	1	Black	Non Specified - Single Edge	Single	-40 C	105 ░C	Press-Fit Wire Wrap	Cantilever	Through Hole	1	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	54	Gold	54	0.1 "	2.54 mm	Female	30 Áin	0.76 Ám

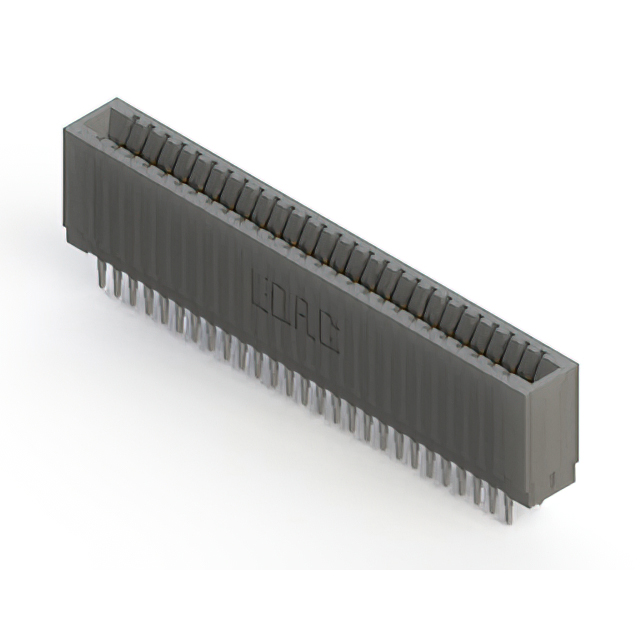

EDAC Inc. 745-054-525-201	Polyester Thermoplastic		Black	Non Specified - Dual Edge	Dual	-40 C	105 ░C	Press-Fit	Cantilever	Through Hole		Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	54	Gold	27	0.1 "	2.54 mm	Female	30 Áin	0.76 Ám	2	2
EDAC Inc. 745-054-545-106	Polyester Thermoplastic	1	Black	Non Specified - Single Edge	Single	-40 C	105 ░C	Press-Fit	Cantilever	Through Hole	1	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	54	Gold	54	0.1 "	2.54 mm	Female	30 Áin	0.76 Ám
EDAC Inc. 745-054-525-106	Polyester Thermoplastic	1	Black	Non Specified - Single Edge	Single	-40 C	105 ░C	Press-Fit	Cantilever	Through Hole	1	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	54	Gold	54	0.1 "	2.54 mm	Female	30 Áin	0.76 Ám

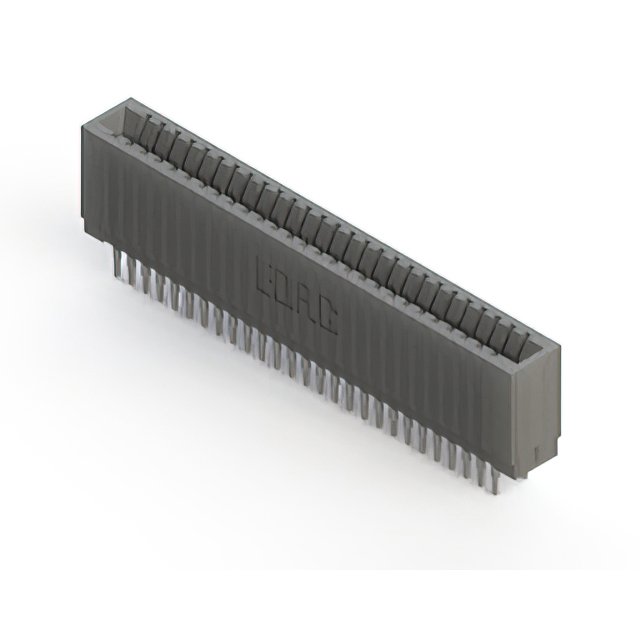

EDAC Inc. 745-054-522-201	Polyester Thermoplastic		Black	Non Specified - Dual Edge	Dual	-40 C	105 ░C	Press-Fit	Cantilever	Through Hole		Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	54	Gold	27	0.1 "	2.54 mm	Female	30 Áin	0.76 Ám	2	2
EDAC Inc. 745-054-545-101	Polyester Thermoplastic	1	Black	Non Specified - Single Edge	Single	-40 C	105 ░C	Press-Fit	Cantilever	Through Hole	1	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	54	Gold	54	0.1 "	2.54 mm	Female	30 Áin	0.76 Ám
