NRPN041 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

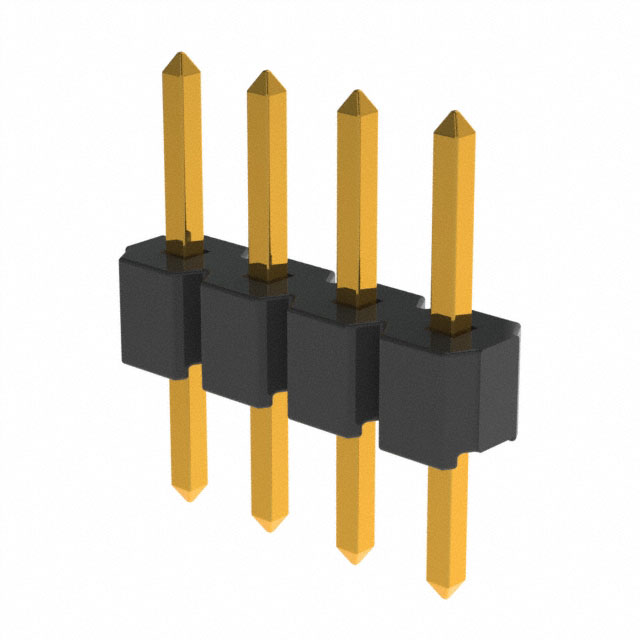

CONN HEADER VERT 4POS 2MM
| Part | Contact Finish Thickness - Post | Connector Type | Number of Positions Loaded | Voltage Rating | Number of Rows | Contact Shape | Current Rating (Amps) | Material Flammability Rating | Contact Material | Contact Length - Mating | Contact Length - Mating | Number of Positions | Insulation Material | Contact Finish Thickness - Mating | Shrouding | Termination | Pitch - Mating | Pitch - Mating | Contact Type | Contact Finish - Post | Style | Mounting Type | Contact Length - Post [custom] | Contact Length - Post | Insulation Color | Fastening Type | Insulation Height [z] | Insulation Height [z] | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish - Mating | Overall Contact Length | Overall Contact Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Flash | Header | All | 150 VDC | 1 | Square | 2 A | UL94 V-0 | Brass | 0.141 in | 3.6 mm | 4 | Nylon 6T Polyamide (PA6T) | Flash | Unshrouded | Solder | 0.079 " | 2 mm | Male Pin | Gold | Board to Board Cable | Through Hole | 0.11 in | 2.79 mm | Black | Push-Pull | 2 mm | 0.079 in | -40 C | 105 ░C | Gold | 8.4 mm | 0.331 in |
