CDFS7W2 Series
Manufacturer: NorComp Inc.
Beta
⌘K

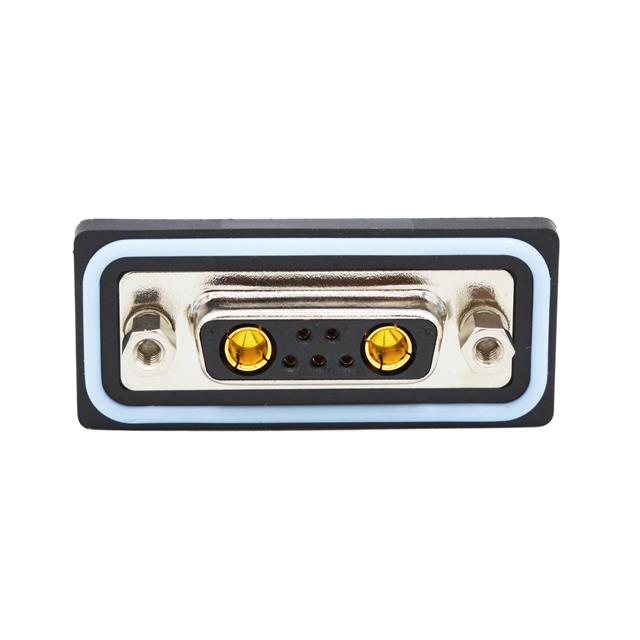

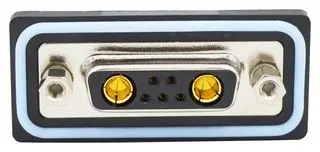

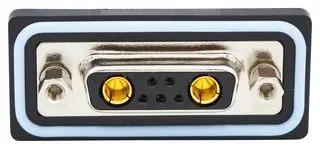

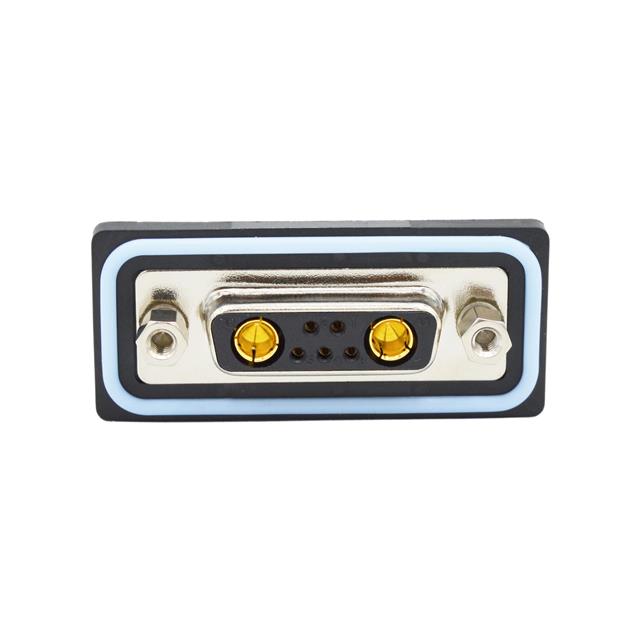

COMBINATION LAYOUT D SUB CONNECTOR, IP67, NANOOK SERIES, DA-7W2, RECEPTACLE, 7 CONTACTS
| Part | Dielectric Material | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Color | Shell Material, Finish | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Connector Type | Ingress Protection | Contact Type | Contact Finish | Flange Feature | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Connector Style | Number of Rows [custom] | Current Rating (Amps) | Number of Positions | Number of Positions [custom] | Number of Positions [custom] | Material Flammability Rating | Features | Contact Finish Thickness | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | Polybutylene Terephthalate (PBT) | Brass | 85 °C | -25 °C | Black | Nickel Plated Steel | Panel Mount | 30 Áin | 0.76 Ám | Receptacle Female Sockets | IP67 - Dust Tight Waterproof | Signal and Power | Gold | 4-40 Mating Side Female Screwlock | A DA | 2 | 7W2 | Combo D-Sub | 2 | 20A 5A | 7 | 5 | 2 | UL94 V-0 | |||
 NorComp Inc. | Polybutylene Terephthalate (PBT) | Brass | 85 °C | -25 °C | Black | Nickel Plated Steel | Panel Mount | Plug Male Pins | IP67 - Dust Tight Waterproof | Signal and Power | Gold | 4-40 Mating Side Female Screwlock | A DA | 2 | 7W2 | Combo D-Sub | 2 | 20A 5A | 7 | 5 | 2 | UL94 V-0 | Grounding Indents | Flash | |||
 NorComp Inc. | Polybutylene Terephthalate (PBT) | Brass | 85 °C | -25 °C | Black | Nickel Plated Steel | Panel Mount | 30 Áin | 0.76 Ám | Plug Male Pins | IP67 - Dust Tight Waterproof | Signal and Power | Gold | 4-40 Mating Side Female Screwlock | A DA | 2 | 7W2 | Combo D-Sub | 2 | 20A 5A | 7 | 5 | 2 | UL94 V-0 | Grounding Indents | ||
 NorComp Inc. | Polybutylene Terephthalate (PBT) | Brass | 85 °C | -25 °C | Black | Nickel Plated Steel | Panel Mount | 30 Áin | 0.76 Ám | Receptacle Female Sockets | IP67 - Dust Tight Waterproof | Signal and Power | Gold | 4-40 Mating Side Female Screwlock | A DA | 2 | 7W2 | Combo D-Sub | 2 | 7 | 5 | 2 | UL94 V-0 | 5 A 40 A | |||
 NorComp Inc. | Polybutylene Terephthalate (PBT) | Brass | 85 °C | -25 °C | Black | Nickel Plated Steel | Panel Mount | Receptacle Female Sockets | IP67 - Dust Tight Waterproof | Signal and Power | Gold | 4-40 Mating Side Female Screwlock | A DA | 2 | 7W2 | Combo D-Sub | 2 | 20A 5A | 7 | 5 | 2 | UL94 V-0 | Flash | ||||
 NorComp Inc. | Polybutylene Terephthalate (PBT) | Brass | 85 °C | -25 °C | Black | Nickel Plated Steel | Panel Mount | 30 Áin | 0.76 Ám | Plug Male Pins | IP67 - Dust Tight Waterproof | Signal and Power | Gold | 4-40 Mating Side Female Screwlock | A DA | 2 | 7W2 | Combo D-Sub | 2 | 7 | 5 | 2 | UL94 V-0 | Grounding Indents | 5 A 40 A | ||
 NorComp Inc. | Polybutylene Terephthalate (PBT) | Brass | 85 °C | -25 °C | Black | Nickel Plated Steel | Panel Mount | Receptacle Female Sockets | IP67 - Dust Tight Waterproof | Signal and Power | Gold | 4-40 Mating Side Female Screwlock | A DA | 2 | 7W2 | Combo D-Sub | 2 | 7 | 5 | 2 | UL94 V-0 | Flash | 5 A 40 A |
