ILD2 Series

Catalog

OPTOISO 5.3KV 2CH TRANS 8DIP

Part	Vce Saturation (Max) [Max]	Package / Case	Package / Case	Package / Case	Current Transfer Ratio (Min) [Min]	Voltage - Forward (Vf) (Typ)	Current - Output / Channel	Mounting Type	Current - DC Forward (If) (Max) [Max]	Voltage - Output (Max) [Max]	Number of Channels [custom]	Current Transfer Ratio (Max)	Turn On / Turn Off Time (Typ)	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Voltage - Isolation	Output Type	Input Type
Vishay General Semiconductor - Diodes Division ILD2-X006	400 mV	10.16 mm	8-DIP	10.16 mm	100 %	1.25 V	50 mA	Through Hole	60 mA	70 V	2	200 %	1.2 µs 2.3 µs	8-DIP	100 °C	-40 °C	2.2 µs	2.6 µs	5300 Vrms	1.81 mOhm	DC

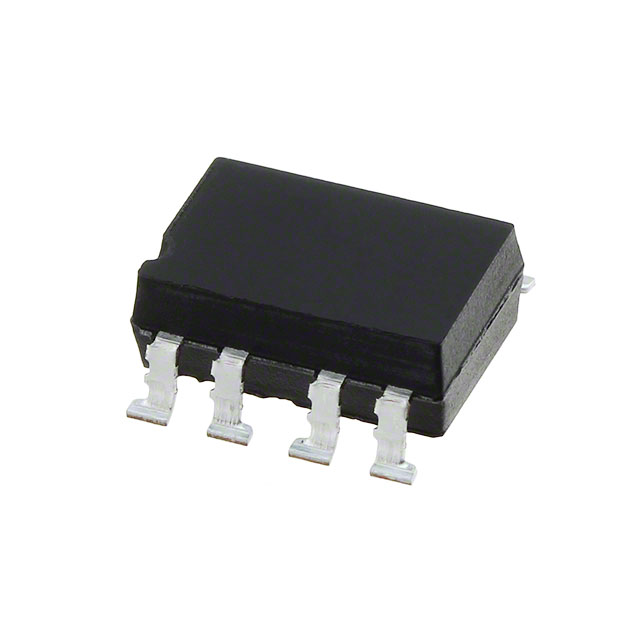

Vishay General Semiconductor - Diodes Division ILD2-X009T	400 mV				100 %	1.25 V	50 mA	Surface Mount	60 mA	70 V	2	500 %	1.2 µs 2.3 µs	8-SMD	100 °C	-40 °C	2.2 µs	2.6 µs	5300 Vrms	1.81 mOhm	DC
