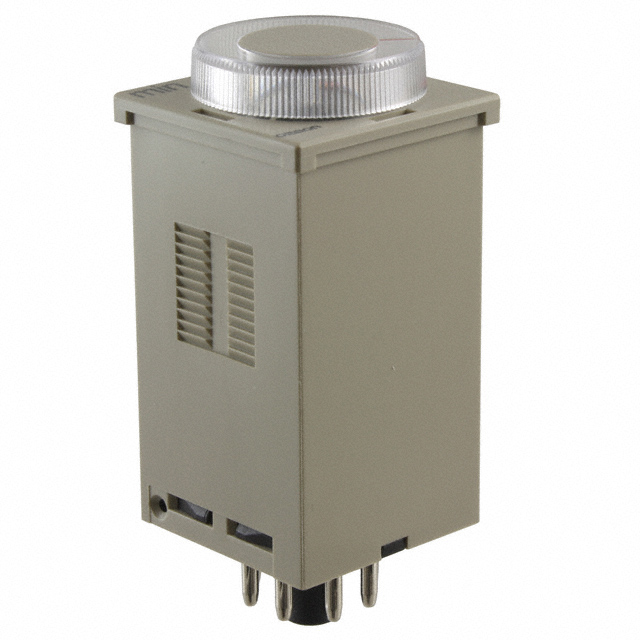

H3JA-8 Series

Manufacturer: Omron Electronics Inc-EMC Div

Catalog

RELAY TIME DELAY 30SEC 5A 250V

Part	Relay Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Function	Contact Rating @ Voltage	Mounting Type	Timing Initiate Method	Termination Style	Delay Time [Max]	Delay Time [Min]	Timing Adjustment Method	Circuit	Voltage - Supply
Omron Electronics Inc-EMC Div H3JA-8C AC200-240 30S	Mechanical Relay	200 VAC	240 VAC	On-Delay	5 A 250 VAC	Socketable	Input Voltage	Plug In 8 Pin (Octal)	30 Sec	3 Sec	Hand Dial	DPDT (2 Form C)
Omron Electronics Inc-EMC Div H3JA-8A 24VAC 5M	Mechanical Relay			On-Delay	7 A 250 VAC	Socketable	Input Voltage	Plug In 8 Pin (Octal)	5 Min	0.5 Min	Hand Dial		24 VAC
Omron Electronics Inc-EMC Div H3JA-8C AC100-120 5M	Mechanical Relay	100 VAC	120 VAC	On-Delay	5 A 250 VAC	Socketable	Input Voltage	Plug In 8 Pin (Octal)	5 Min	0.5 Min	Hand Dial	DPDT (2 Form C)
Omron Electronics Inc-EMC Div H3JA-8C 100-120VAC1S	Mechanical Relay	100 VAC	120 VAC	On-Delay	5 A 250 VAC	Socketable	Input Voltage	Plug In 8 Pin (Octal)	1 Sec	0.1 Sec	Hand Dial	DPDT (2 Form C)
Omron Electronics Inc-EMC Div H3JA-8C AC100-120 10S	Mechanical Relay	100 VAC	120 VAC	On-Delay	5 A 250 VAC	Socketable	Input Voltage	Plug In 8 Pin (Octal)	10 s	1 Sec	Hand Dial	DPDT (2 Form C)
Omron Electronics Inc-EMC Div H3JA-8A AC100-120 3M	Mechanical Relay	100 VAC	120 VAC	On-Delay	7 A 250 VAC	Socketable	Input Voltage	Plug In 8 Pin (Octal)	3 Min	0.3 Min	Hand Dial
Omron Electronics Inc-EMC Div H3JA-8C 200-240VAC 3S	Mechanical Relay	200 VAC	240 VAC	On-Delay	5 A 250 VAC	Socketable	Input Voltage	Plug In 8 Pin (Octal)	3 Sec	0.3 Sec	Hand Dial	DPDT (2 Form C)
Omron Electronics Inc-EMC Div H3JA-8A 100-120VAC 3S	Mechanical Relay	100 VAC	120 VAC	On-Delay	7 A 250 VAC	Socketable	Input Voltage	Plug In 8 Pin (Octal)	3 Sec	0.3 Sec	Hand Dial
Omron Electronics Inc-EMC Div H3JA-8A 12VDC 10M	Mechanical Relay			On-Delay	7 A 250 VAC	Socketable	Input Voltage	Plug In 8 Pin (Octal)	10 Min	1 Min	Hand Dial		12 VDC
Omron Electronics Inc-EMC Div H3JA-8A 24VAC 60M	Mechanical Relay			On-Delay	7 A 250 VAC	Socketable	Input Voltage	Plug In 8 Pin (Octal)	60 Min	6 Min	Hand Dial		24 VAC
