51 Series

Catalog

CHOKE, COMMON MODE, 500 µH, 5100 SERIES, 4.1 A, 18MM X 10MM X 24MM

Part	Operating Temperature [Max]	Operating Temperature [Min]	DC Resistance (DCR) (Max) [Max]	Current Rating (Max) [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Mounting Type	Number of Lines	Height (Max) [z]	Height (Max) [z]	Filter Type
Murata Electronics 51504C	125 °C	-40 C	27 mOhm	4.1 A	10 mm	0.709 in	18 mm	0.394 in	Vertical 4 PC Pin	Through Hole	2	24 mm	0.945 in	Power Line
Murata Electronics 51505C	125 °C	-40 C	197 mOhm	1.2 A	10 mm	0.709 in	18 mm	0.394 in	Vertical 4 PC Pin	Through Hole	2	24 mm	0.945 in	Power Line
Murata Electronics 51305C	125 °C	-40 C	97 mOhm	1.9 A	10 mm	0.709 in	18 mm	0.394 in	Vertical 4 PC Pin	Through Hole	2	24 mm	0.945 in	Power Line

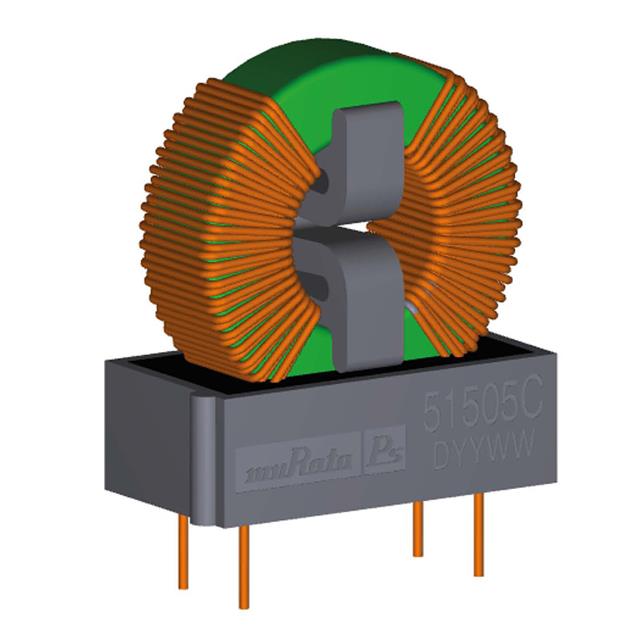

Murata Electronics 51105C	125 °C	-40 C	38 mOhm	3.3 A	10 mm	0.709 in	18 mm	0.394 in	Vertical 4 PC Pin	Through Hole	2	24 mm	0.945 in	Power Line
