5080/20C Series
Manufacturer: ALPHA WIRE
Beta
⌘K

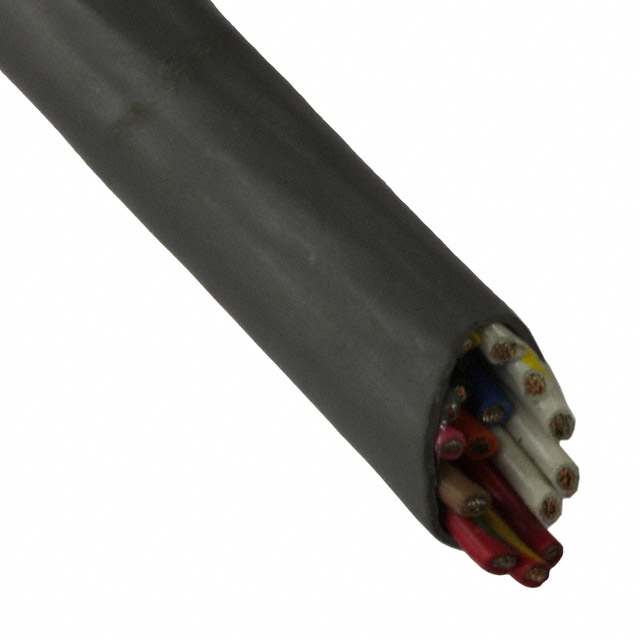

CBL 20COND 16AWG SLT 1000=1000'
| Part | Wire Gauge | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Number of Conductors | Cable Type | Jacket (Insulation) Material | Conductor Insulation | Conductor Strand [custom] | Conductor Strand [diameter] | Jacket Color | Usage | Conductor Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Features | Ratings | Operating Temperature [Min] | Operating Temperature [Max] | Voltage | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 16 AWG | 13.89 mm | 0.547 in | 20 | Multi-Conductor | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | 19 | 0.0117 in | Slate | Communication Control | Copper Tinned | 0.813 mm | 0.032 in | Biological Compatibility Rip Cord | ISO 10993 UL Style 2464 | -35 °C | 105 ░C | 300 VDC | ||
ALPHA WIRE | 16 AWG | 13.89 mm | 0.547 in | 20 | Multi-Conductor | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | 19 | 0.0117 in | Slate | Communication Control | Copper Tinned | 0.813 mm | 0.032 in | Biological Compatibility Rip Cord | ISO 10993 UL Style 2464 | -35 °C | 105 ░C | 300 VDC | 304.8 m | 1000 ft |
