TR9CI2500 Series

Catalog

AC/DC DESKTOP ADAPTER 24V 60W

Part	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output	Cord Length	Cord Length	Current - Output (Max) [Max]	Approval Agency	Polarization	Voltage - Input [Max]	Voltage - Input [Min]	No Load Power Consumption	Efficiency	Input Connector	Input Type	Output Connector [x]	Output Connector [diameter]	Output Connector	Applications	Form	Standard Number	Power (Watts)	Region Utilized	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]

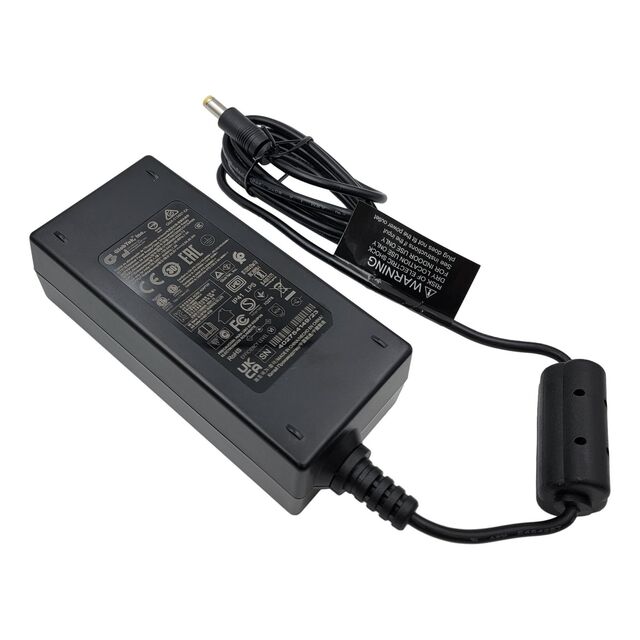

GlobTek, Inc. TR9CI2500CCPCIMR6B	-20 ░C	40 °C	24 V	1.2 m	47.2 in	2.5 A	BSMI CB CCC CE cETLus cULus EAC ETL FCC LPS NOM PSE RCM S-Mark UkrSEPRO UL VCCI	Positive Center	264 VAC	90 VAC	150 mW	Level VI	IEC 320-C14	Cord (Sold Separately)	11 mm	2.1 mm 5.5 mm	Barrel Plug	Household Appliances ITE (Commercial) Medical	Desktop (Class I)	1310 60335-1 60601-1-11 60601-1-2 60950-1 62368-1	60 W	International	34.2 mm	1.35 in	53.5 mm	4.63 in	117.5 mm	2.11 in

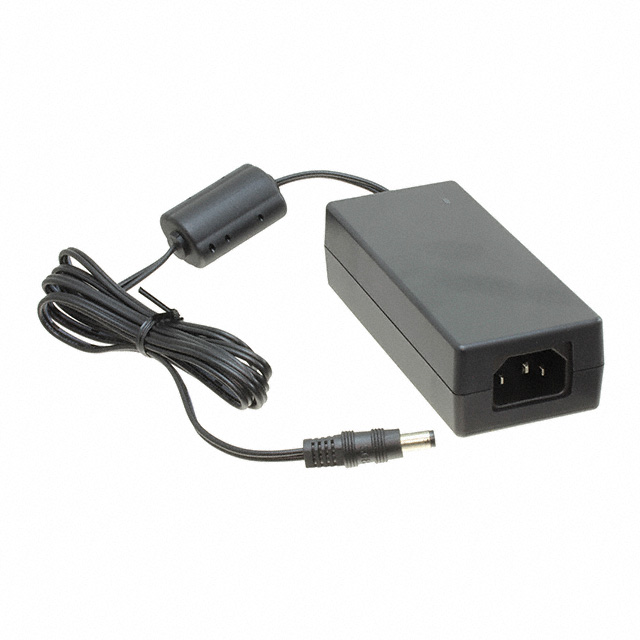

GlobTek, Inc. TR9CI2500LCP-N(R6B)	0 °C	40 °C	24 V	1.5 m	59 in	2.5 A	BSI BSMI CB CCC CE cULus EAC FCC GS LPS NOM PSE RCM UkrSEPRO VCCI	Positive Center	264 VAC	90 VAC	150 mW	Level VI	IEC 320-C14	Cord (Sold Separately)	11 mm	2.5 mm 5.5 mm	Barrel Plug	Household Appliances ITE (Commercial)	Desktop (Class I)	60335-1 60950-1	60 W	International	33 mm	1.3 in	52 mm	4.76 "	121 mm	2.05 in
GlobTek, Inc. TR9CI2500CCP-N(R6B)	0 °C	40 °C	24 V	1.53 m	60.2 in	2.5 A	BSI BSMI CB CCC CE cULus EAC FCC GS LPS NOM PSE RCM UkrSEPRO VCCI	Positive Center	264 VAC	90 VAC	150 mW	Level VI	IEC 320-C14	Cord (Sold Separately)	11 mm	2.1 mm 5.5 mm	Barrel Plug	Household Appliances ITE (Commercial)	Desktop (Class I)	60335-1 60950-1	60 W	International	33 mm	1.3 in	52 mm	4.76 "	121 mm	2.05 in
