391-054 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 54POS 0.100

Part	Termination Rows [custom]	Material - Insulation	Number of Positions/Bay/Row	Termination	Card Thickness [Max]	Card Thickness [Min]	Contact Material	Flange Feature	Mounting Type	Color	Pitch	Pitch	Features	Contact Finish	Number of Rows [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Contact Finish Thickness	Read Out	Gender	Number of Positions	Card Type	Contact Type	Flange Feature [diameter]	Flange Feature [diameter]	Termination Rows	Number of Rows
EDAC Inc. 391-054-560-207	2	Polyester Thermoplastic	27	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Flush Mount M3 Threaded Insert Top Opening	Through Hole	Black	0.1 "	2.54 mm	Card Extender	Gold	2	-40 C	105 ░C	0.25 Ám	10 Áin	Dual	Female	54	Non Specified - Dual Edge	Semi Bellows
EDAC Inc. 391-054-560-202	2	Polyester Thermoplastic	27	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Flush Mount Top Opening Unthreaded	Board Edge Straddle Mount	Black	0.1 "	2.54 mm	Card Extender	Gold	2	-40 C	105 ░C	0.25 Ám	10 Áin	Dual	Female	54	Non Specified - Dual Edge	Semi Bellows	3.25 mm	0.128 "

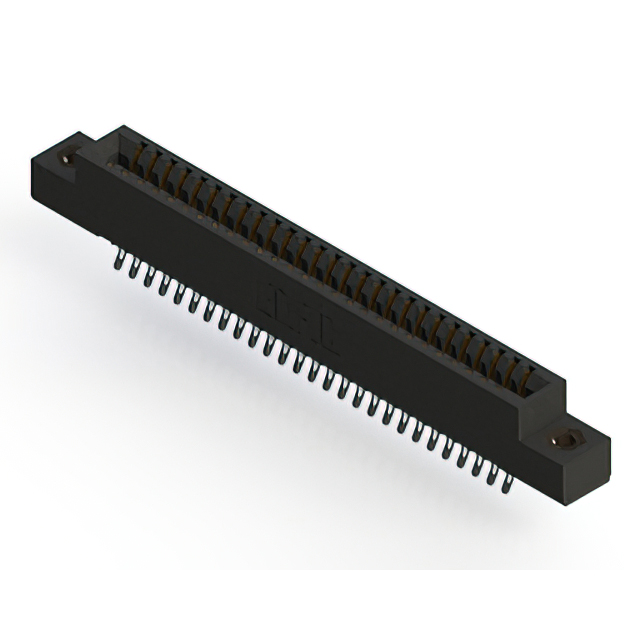

EDAC Inc. 391-054-555-207	2	Polyester Thermoplastic	27	Solder Eyelet(s)	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Flush Mount M3 Threaded Insert Top Opening	Through Hole	Black	0.1 "	2.54 mm	Card Extender	Gold	2	-40 C	105 ░C	0.25 Ám	10 Áin	Dual	Female	54	Non Specified - Dual Edge	Semi Bellows

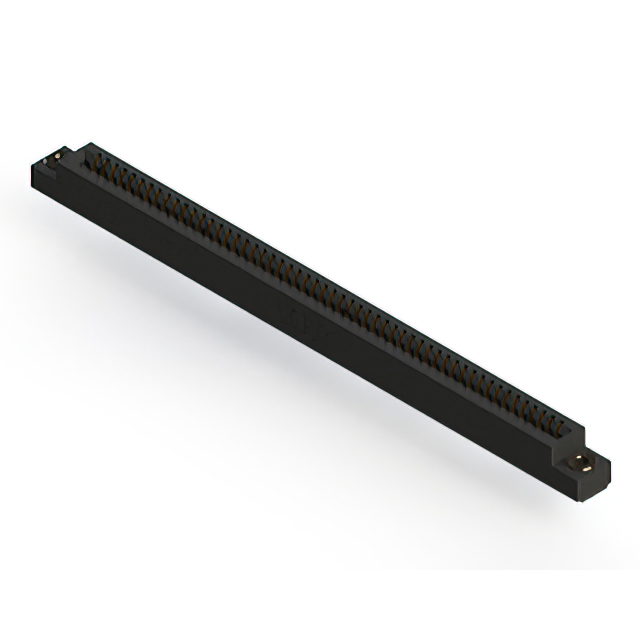

EDAC Inc. 391-054-524-103		Polyester Thermoplastic	54	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Floating Bobbin Flush Mount	Through Hole	Black	0.1 "	2.54 mm		Gold		-40 C	105 ░C	0.25 Ám	10 Áin	Single	Female	54	Non Specified - Single Edge	Semi Bellows	2.95 mm	0.116 "	1	1

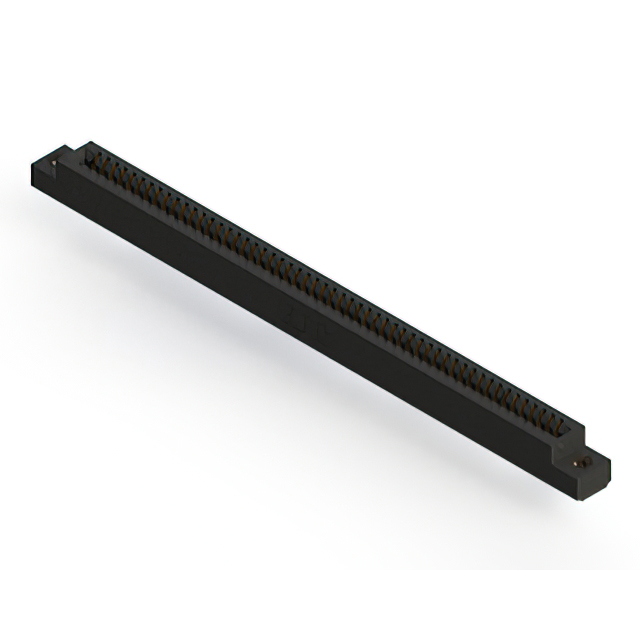

EDAC Inc. 391-054-520-108		Polyester Thermoplastic	54	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	4-40 Flush Mount Threaded Insert Top Opening	Through Hole	Black	0.1 "	2.54 mm		Gold		-40 C	105 ░C	0.25 Ám	10 Áin	Single	Female	54	Non Specified - Single Edge	Semi Bellows			1	1
EDAC Inc. 391-054-522-107		Polyester Thermoplastic	54	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Flush Mount M3 Threaded Insert Top Opening	Through Hole	Black	0.1 "	2.54 mm		Gold		-40 C	105 ░C	0.25 Ám	10 Áin	Single	Female	54	Non Specified - Single Edge	Semi Bellows			1	1
EDAC Inc. 391-054-524-108		Polyester Thermoplastic	54	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	4-40 Flush Mount Threaded Insert Top Opening	Through Hole	Black	0.1 "	2.54 mm		Gold		-40 C	105 ░C	0.25 Ám	10 Áin	Single	Female	54	Non Specified - Single Edge	Semi Bellows			1	1

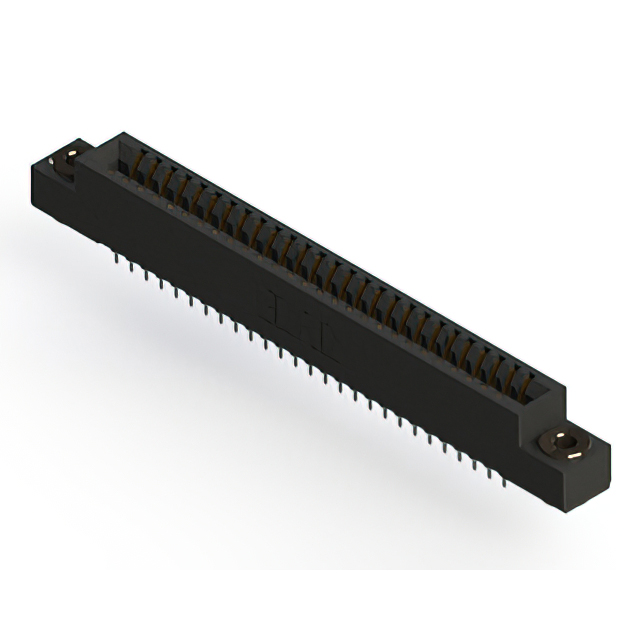

EDAC Inc. 391-054-520-203	2	Polyester Thermoplastic	27	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Floating Bobbin Flush Mount	Through Hole	Black	0.1 "	2.54 mm		Gold	2	-40 C	105 ░C	0.25 Ám	10 Áin	Dual	Female	54	Non Specified - Dual Edge	Semi Bellows	2.95 mm	0.116 "

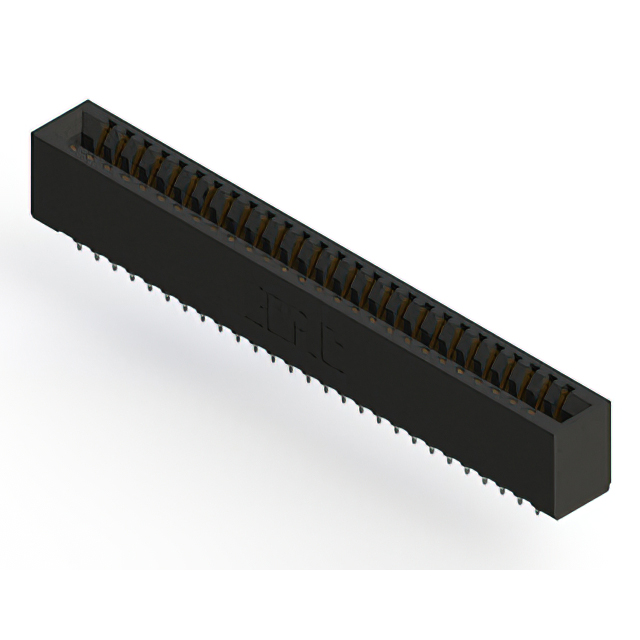

EDAC Inc. 391-054-524-201	2	Polyester Thermoplastic	27	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy		Through Hole	Black	0.1 "	2.54 mm		Gold	2	-40 C	105 ░C	0.25 Ám	10 Áin	Dual	Female	54	Non Specified - Dual Edge	Semi Bellows
EDAC Inc. 391-054-522-207	2	Polyester Thermoplastic	27	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Flush Mount M3 Threaded Insert Top Opening	Through Hole	Black	0.1 "	2.54 mm		Gold	2	-40 C	105 ░C	0.25 Ám	10 Áin	Dual	Female	54	Non Specified - Dual Edge	Semi Bellows
