Pts5260 Series Series

5.20 x 5.20 Tact Switch for SMT Tactile Switches 5.20 x 5.20 Tact Switch for SMT

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

5.20 x 5.20 Tact Switch for SMT Tactile Switches 5.20 x 5.20 Tact Switch for SMT

Part	Actuator Height off PCB, Vertical [z]	Actuator Type	Switch Travel	Actuator Orientation	Termination Style	Switch Function	Illumination	Circuit	Outline [y]	Outline [x]	Contact Rating @ Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Ingress Protection	Mechanical Life	Actuator Height off PCB, Vertical	Operating Force
Littelfuse/Commercial Vehicle Products PTS526 SM15 SMTR2 LFS	1.5 mm	Standard	0.25 mm	Top Actuated	Gull Wing	Off-Mom	Non-Illuminated	SPST-NO	5.2 mm	5.2 mm	0.05 A 12 VDC	-20 C	70 °C	Surface Mount	IP40	500000 Cycles

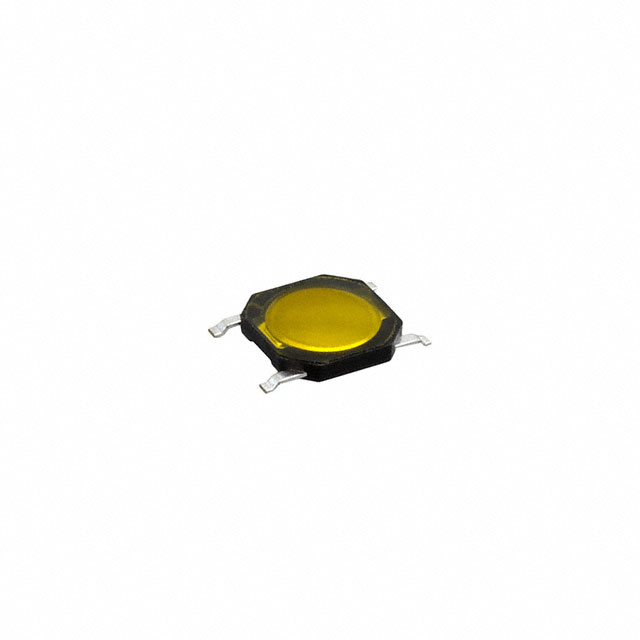

Littelfuse/Commercial Vehicle Products PTS526 SM08 SMTR2 LFS		Flush	0.25 mm	Top Actuated	Gull Wing	Off-Mom	Non-Illuminated	SPST-NO	4.8 mm	4.8 mm	0.05 A 12 VDC	-20 C	70 °C	Surface Mount	IP40	500000 Cycles	0.8 mm
Littelfuse/Commercial Vehicle Products PTS526 SK08 SMTR2 LFS		Flush	0.25 mm	Top Actuated	Gull Wing	Off-Mom	Non-Illuminated	SPST-NO	4.8 mm	4.8 mm	0.05 A 12 VDC	-20 C	70 °C	Surface Mount	IP40	200000 Cycles	0.8 mm	260 gf

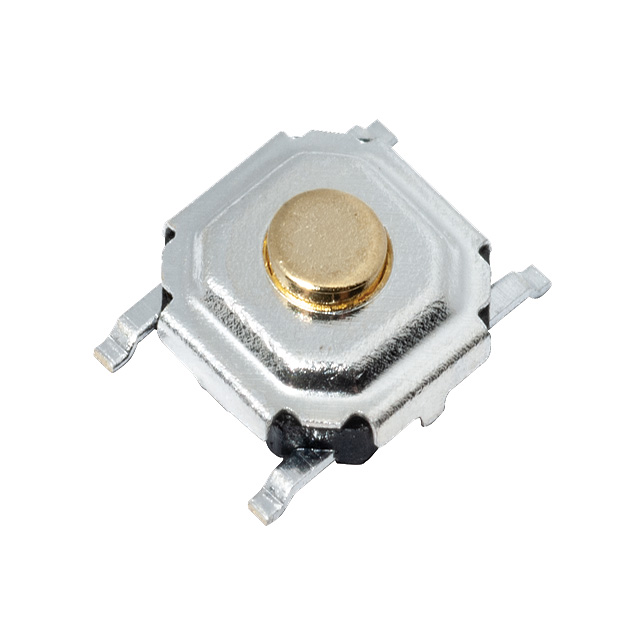

Littelfuse/Commercial Vehicle Products PTS526SMG15SMTR21 LFS	1.5 mm	Standard	0.25 mm	Top Actuated	SMD (SMT) Tab	Off-Mom	Non-Illuminated	SPST-NO	5.2 mm	5.2 mm	0.05 A 12 VDC	-40 °C	85 °C	Surface Mount		1000000 Cycles

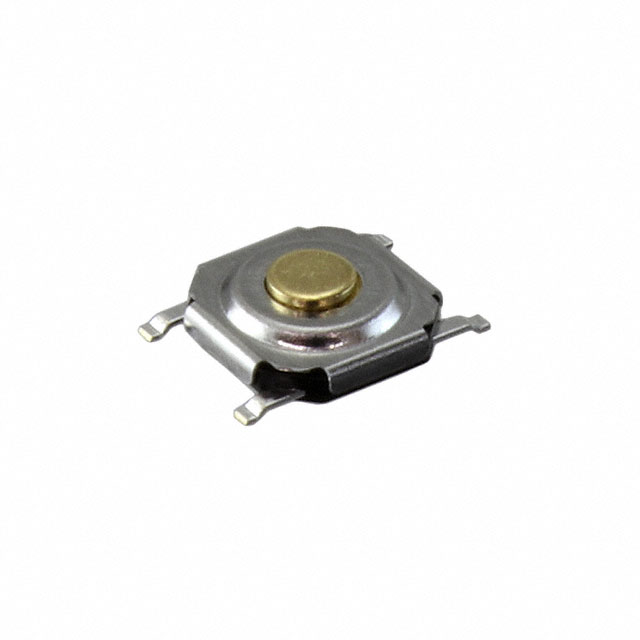

Littelfuse/Commercial Vehicle Products PTS526 SK15 SMTR2 LFS	1.5 mm	Standard	0.25 mm	Top Actuated	Gull Wing	Off-Mom	Non-Illuminated	SPST-NO	5.2 mm	5.2 mm	0.05 A 12 VDC	-20 C	70 °C	Surface Mount	IP40	200000 Cycles		260 gf

Catalog

5.20 x 5.20 Tact Switch for SMT Tactile Switches 5.20 x 5.20 Tact Switch for SMT

Key Features

• 5.20 x 5.20 form factor

• Actuator height 0.8, 1.5, 1.8 and 2.0 mm

Description

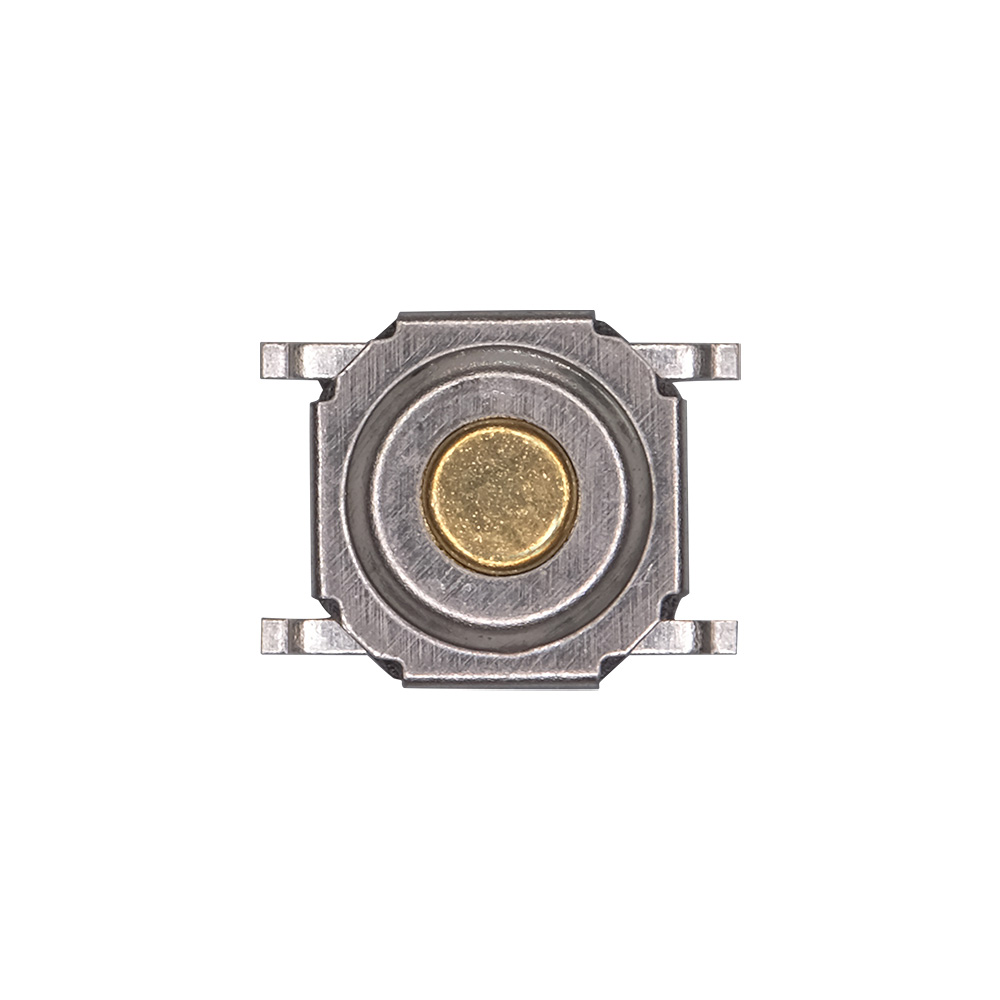

The PTS526 series tactile switch is a small 5.2 x 5.2 form factor in SMT version with 4 different heights and 3 available actuation forces, ideal for general usage applications. PTS526 tactile switch also includes ground pin options.
