SCN-24 Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K

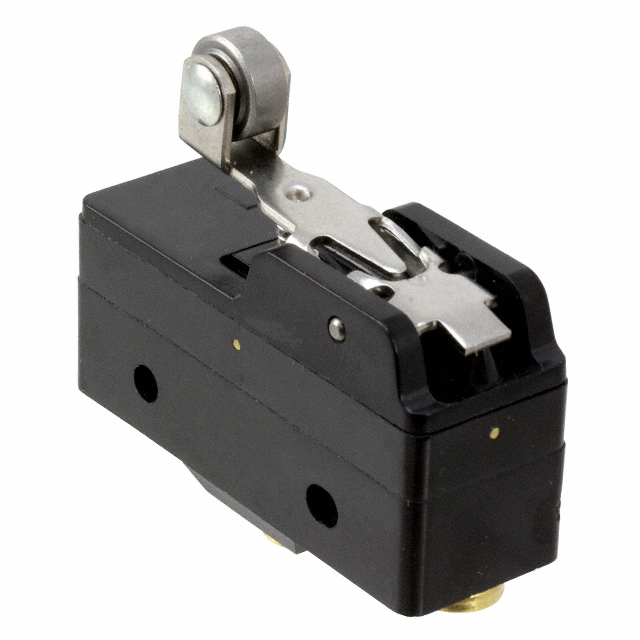

SWITCH SNAP ACTION SPDT 15A 125V
| Part | Operating Force | Operating Position | Operating Position | Ingress Protection | Switch Function | Voltage Rating - DC | Current Rating (Amps) | Actuator Type | Voltage Rating - AC | Mounting Type | Differential Travel | Differential Travel | Operating Temperature [Max] | Operating Temperature [Min] | Termination Style | Overtravel | Overtravel | Circuit | Mechanical Life |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Honeywell Sensing and Productivity Solutions | 170 gf | 30.2 mm | 1.188 in | Splash Proof | On-Mom | 125 VDC | 15 A 500 mA | Lever Roller | 125 V | Chassis Mount | 0.5 mm | 0.02 in | 85 °C | -55 °C | Screw Terminal | 0.094 in | 2.4 mm | SPDT | 20000000 Cycles |
Honeywell Sensing and Productivity Solutions | 170 gf | 30 mm | 1.18 " | Splash Proof | On-Mom | 1 A | Lever Roller | 125 V | Chassis Mount | 0.5 mm | 0.02 in | 121 °C | -55 °C | Screw Terminal | 0.094 in | 2.4 mm | SPDT | 20000000 Cycles | |
 Honeywell Sensing and Productivity Solutions | 283 gf | 30.2 mm | 1.188 in | Splash Proof | On-Mom | 22 A | Lever Roller | 125 V | Chassis Mount | 0.6 mm | 0.025 in | 121 °C | -55 °C | Screw Terminal | 0.094 in | 2.4 mm | SPDT | 20000000 Cycles |
