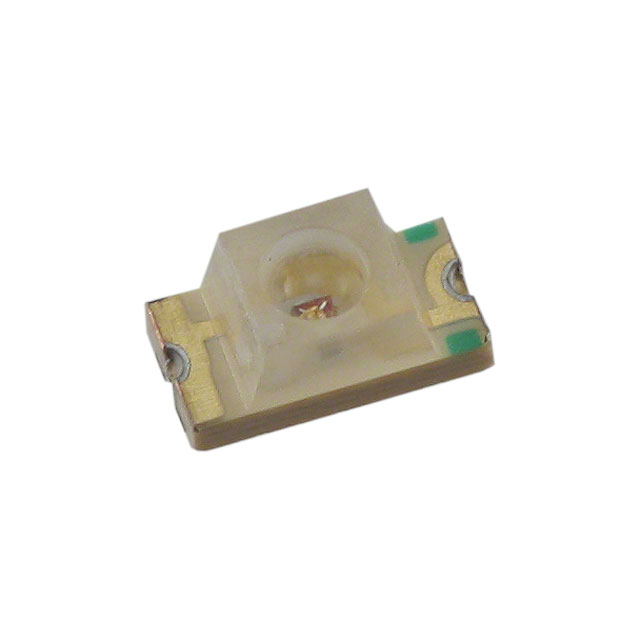

APL3015 Series

Catalog

LED GREEN CLEAR CHIP SMD

Part	Current - Test	Wavelength - Dominant	Lens Style	Lens Transparency	Voltage - Forward (Vf) (Typ)	Viewing Angle	Mounting Type	Configuration	Color	Height (Max) [Max] [z]	Wavelength - Peak	Millicandela Rating	Supplier Device Package	Lens Color	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Lens Size [diameter]

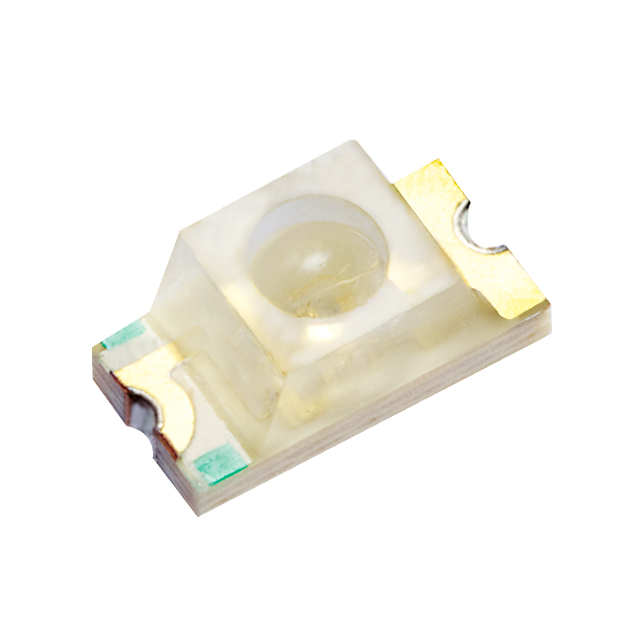

Kingbright APL3015ZGC-F01	20 mA	525 nm	Round with Flat Top	Clear	3.3 V	70 °	Surface Mount	Standard	Green	1.4 mm	515 nm	800 mcd	Chip LED	Colorless	3 mm	1.5 mm	2-SMD No Lead	0.18 mm
Kingbright APL3015SYCK-F01	20 mA	590 nm	Round with Flat Top	Clear	2 V	70 °	Surface Mount	Standard	Yellow	1.4 mm	590 nm	350 mcd	Chip LED	Colorless	3 mm	1.5 mm	2-SMD No Lead	0.18 mm
Kingbright APL3015CGCK-F01	20 mA	570 nm	Round with Flat Top	Clear	2.1 V	70 °	Surface Mount	Standard	Green	1.4 mm		120 mcd	Chip LED	Colorless	3 mm	1.5 mm	2-SMD No Lead	0.18 mm

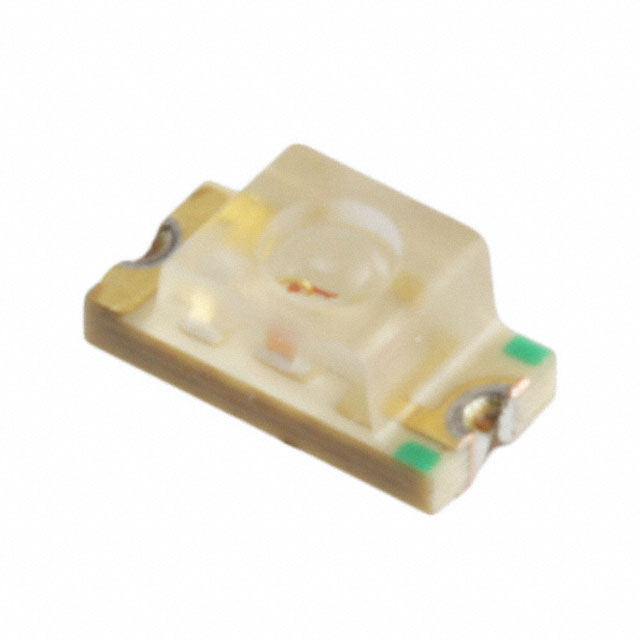

Kingbright APL3015SGC-F01	20 mA	568 nm	Round with Flat Top	Clear	2.2 V	70 °	Surface Mount	Standard	Green	1.4 mm	565 nm	18 mcd	Chip LED	Colorless	3 mm	1.5 mm	2-SMD No Lead	0.18 mm
Kingbright APL3015MGC-F01	20 mA	570 nm	Round with Flat Top	Clear	2.1 V	70 °	Surface Mount	Standard	Green	1.4 mm		180 mcd	Chip LED	Colorless	3 mm	1.5 mm	2-SMD No Lead	0.18 mm

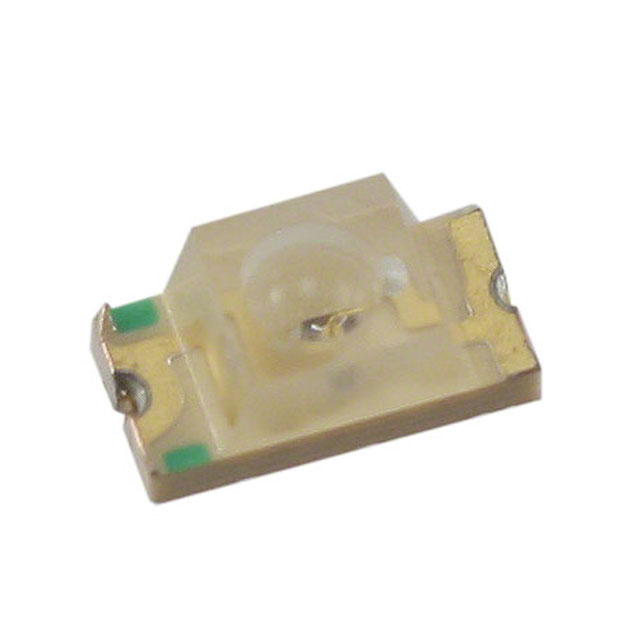

Kingbright APL3015SECK-F01	20 mA	601 nm	Round with Flat Top	Clear	2.1 V	70 °	Surface Mount	Standard		1.4 mm	610 nm	350 mcd	Chip LED	Colorless	3 mm	1.5 mm	2-SMD No Lead	0.18 mm

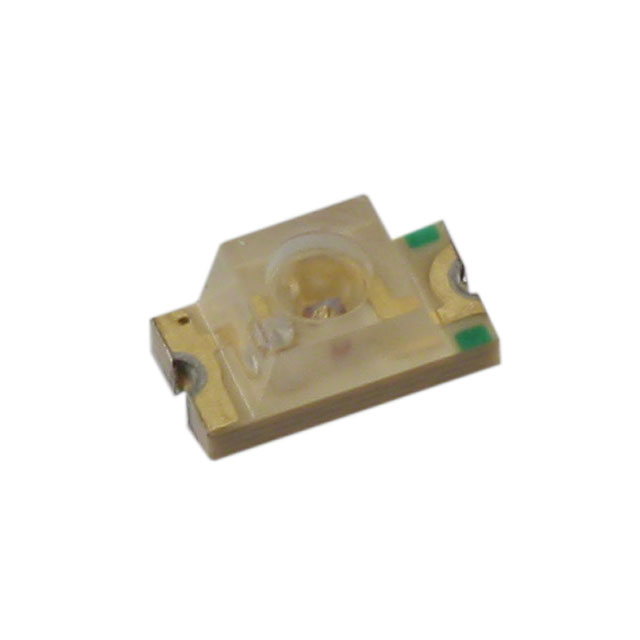

Kingbright APL3015EC-F01	20 mA	617 nm	Round with Flat Top	Clear	2 V	70 °	Surface Mount	Standard	Red	1.4 mm	627 nm	12 mcd	Chip LED	Colorless	3 mm	1.5 mm	2-SMD No Lead	0.18 mm

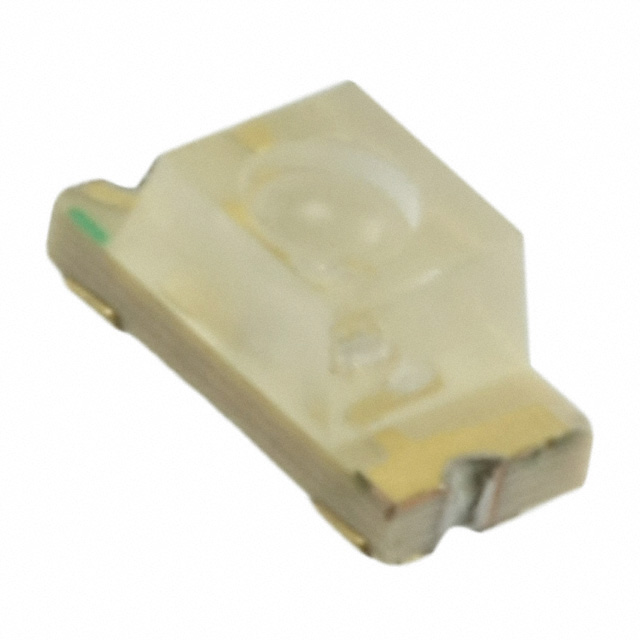

Kingbright APL3015QBC/D-F01	20 mA	465 nm	Round with Flat Top	Clear	3.3 V	70 °	Surface Mount	Standard	Blue	1.4 mm	460 nm	200 mcd	Chip LED	Colorless	3 mm	1.5 mm	2-SMD No Lead	0.18 mm
Kingbright APL3015SRCPRV-F01	20 mA	640 nm	Round with Flat Top	Clear	1.85 V	70 °	Surface Mount	Standard	Red	1.4 mm	655 nm	50 mcd	Chip LED	Colorless	3 mm	1.5 mm	2-SMD No Lead
Kingbright APL3015PBC/A-F01	20 mA	470 nm	Round with Flat Top	Clear	3.2 V	70 °	Surface Mount	Standard	Blue	1.4 mm	468 nm	120 mcd	Chip LED	Colorless	3 mm	1.5 mm	2-SMD No Lead	0.18 mm
