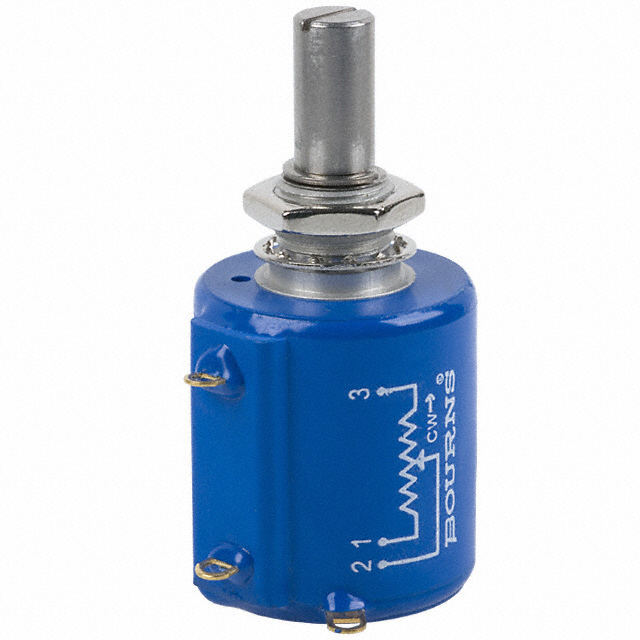

3500S Series
Manufacturer: Bourns Inc.
Beta
⌘K
POT 10K OHM 2W WIREWOUND LINEAR
| Part | Power (Watts) | Tolerance | Temperature Coefficient | Bushing Thread | Resistive Material | Size - Body [diameter] | Size - Body [diameter] | Termination Style | Actuator Diameter [diameter] | Actuator Diameter [diameter] | Number of Turns | Mounting Type | Actuator Type | Built in Switch | Rotation | Adjustment Type | Number of Gangs | Resistance (Ohms) | Taper | Actuator Length [x] | Actuator Length [x] | Resistance (Ohms) | Resistance (Ohms) [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 2 W | 3 % | 50 ppm/░C | 3/8-32 | Wirewound | 22.23 mm | 0.875 " | Solder Lug | 6.32 mm | 0.249 in | 10 | Panel Mount | Slotted | None | 3600 ° | User Defined | 1 | 10k | Linear | 20.64 mm | 0.813 in | ||
Bourns Inc. | 2 W | 3 % | 50 ppm/░C | 3/8-32 | Wirewound | 22.23 mm | 0.875 " | Solder Lug | 6.32 mm | 0.249 in | 10 | Panel Mount | Slotted | None | 3600 ° | User Defined | 1 | 100k | Linear | 20.64 mm | 0.813 in | ||
Bourns Inc. | 2 W | 3 % | 50 ppm/░C | 3/8-32 | Wirewound | 22.23 mm | 0.875 " | Solder Lug | 6.32 mm | 0.249 in | 10 | Panel Mount | Slotted | None | 3600 ° | User Defined | 1 | Linear | 20.64 mm | 0.813 in | 20 kOhms | ||
Bourns Inc. | 2 W | 3 % | 50 ppm/░C | 3/8-32 | Wirewound | 22.23 mm | 0.875 " | Solder Lug | 6.32 mm | 0.249 in | 10 | Panel Mount | Slotted | None | 3600 ° | User Defined | 1 | Linear | 20.64 mm | 0.813 in | 2 kOhms | ||
Bourns Inc. | 2 W | 3 % | 50 ppm/░C | 3/8-32 | Wirewound | 22.23 mm | 0.875 " | Solder Lug | 6.32 mm | 0.249 in | 10 | Panel Mount | Slotted | None | 3600 ° | User Defined | 1 | Linear | 20.64 mm | 0.813 in | 5 kOhms | ||
 Bourns Inc. | 2 W | 3 % | 50 ppm/░C | 3/8-32 | Wirewound | 22.23 mm | 0.875 " | Solder Lug | 6.32 mm | 0.249 in | 10 | Panel Mount | Slotted | None | 3600 ° | User Defined | 1 | Linear | 17.46 mm | 0.687 in | 5 kOhms | ||
Bourns Inc. | 2 W | 3 % | 50 ppm/░C | 3/8-32 | Wirewound | 22.23 mm | 0.875 " | Solder Lug | 6.32 mm | 0.249 in | 10 | Panel Mount | Slotted | None | 3600 ° | User Defined | 1 | Linear | 20.64 mm | 0.813 in | 200 Ohms | ||
 Bourns Inc. | 2 W | 3 % | 50 ppm/░C | 3/8-32 | Wirewound | 22.23 mm | 0.875 " | Solder Lug | 6.32 mm | 0.249 in | 10 | Panel Mount | Slotted | None | 3600 ° | User Defined | 1 | Linear | 20.64 mm | 0.813 in | |||
Bourns Inc. | 2 W | 3 % | 50 ppm/░C | 3/8-32 | Wirewound | 22.23 mm | 0.875 " | Solder Lug | 6.32 mm | 0.249 in | 10 | Panel Mount | Slotted | None | 3600 ° | User Defined | 1 | 1k | Linear | 20.64 mm | 0.813 in | ||
Bourns Inc. | 2 W | 3 % | 50 ppm/░C | 3/8-32 | Wirewound | 22.23 mm | 0.875 " | Solder Lug | 6.32 mm | 0.249 in | 10 | Panel Mount | Slotted | None | 3600 ° | User Defined | 1 | Linear | 20.64 mm | 0.813 in | 50 kOhms |
