S1W0 Series

Catalog

LED SZ5-M2 NEUT WHT 4000K 3535

Part	Thermal Resistance of Package	Flux @ 85°C, Current - Test	Lumens/Watt @ Current - Test	Voltage - Forward (Vf) (Typ) [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	CCT (K)	Supplier Device Package	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max)	Mounting Type	Viewing Angle	CRI (Color Rendering Index)	Current - Max [Max]	Color	Voltage - Forward (Vf) (Typ)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	CCT (K)	Supplier Device Package	Height - Seated (Max) [Max]	Flux @ 25°C, Current - Test	Current - Test	Package / Case
Seoul Semiconductor Inc. S1W0-3535407003-00000000-00001	3.45 °C/W	292 lm	143 lm/W	3 V	0.138 in	0.138 in	3.5 mm	3.5 mm	4000 K	3535	1414 (3535 Metric)	0.085 in	2.15 mm	Surface Mount	118 °	70	1.5 A	Neutral White
Seoul Semiconductor Inc. S1W0-2222309003-00000000-P0001	4 °C/W	208 lm	107 lm/W		0.087 in	0.087 in	2.21 mm	2.21 mm	3000 K	SMD	2-SMD No Lead			Surface Mount	140 °	90	2 A	Warm White	2.78 V	0.54 mm	0.021 "

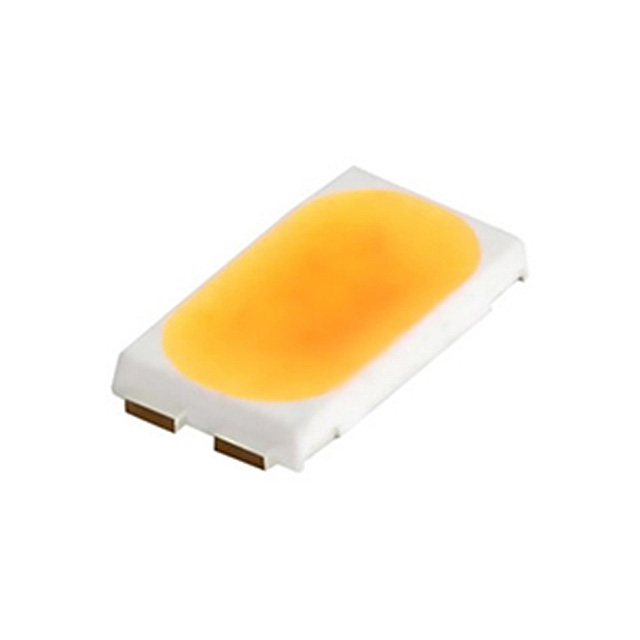

Seoul Semiconductor Inc. S1W0-5630278003-0000003S-00004	10 °C/W		192 lm/W		0.118 in	0.205 "	5.2 mm	3 mm	2700 K		2211 (5630 Metric)	0.85 mm		Surface Mount	120 °	80	200 mA	Warm White	2.78 V			3-Step MacAdam Ellipse	5630	0.033 in	35 lm	65 mA
Seoul Semiconductor Inc. S1W0-2222278003-00000000-00001	4 °C/W	261 lm	131 lm/W		0.087 in	0.087 in	2.21 mm	2.21 mm	2700 K	SMD	2-SMD No Lead			Surface Mount	140 °	80	2 A	Warm White	2.78 V	0.54 mm	0.021 "
Seoul Semiconductor Inc. S1W0-2222359003-00000000-P0001	4 °C/W	223 lm	115 lm/W		0.087 in	0.087 in	2.21 mm	2.21 mm	3500 K	SMD	2-SMD No Lead			Surface Mount	140 °	90	2 A	Warm White	2.78 V	0.54 mm	0.021 "
Seoul Semiconductor Inc. S1W0-2835509003-0000003S-0P006	13 °C/W		174 lm/W		0.11 "	0.13 "	3.3 mm	2.8 mm	5000 K	3528	1411	0.9 mm		Surface Mount	120 °	90	300 mA	Cool White	2.72 V			3-Step MacAdam Ellipse		0.035 in	31 lm	65 mA	3528 Metric
Seoul Semiconductor Inc. S1W0-2222277003-00000000-P0001	4 °C/W	294 lm	151 lm/W		0.087 in	0.087 in	2.21 mm	2.21 mm	2700 K	SMD	2-SMD No Lead			Surface Mount	140 °	70	2 A	Warm White	2.78 V	0.54 mm	0.021 "
Seoul Semiconductor Inc. S1W0-5630308003-0000003S-00004	10 °C/W		194 lm/W		0.118 in	0.205 "	5.2 mm	3 mm	3000 K		2211 (5630 Metric)	0.85 mm		Surface Mount	120 °	80	200 mA	Warm White	2.78 V			3-Step MacAdam Ellipse	5630	0.033 in	35 lm	65 mA
Seoul Semiconductor Inc. S1W0-2222658003-00000000-00001	4 °C/W		146 lm/W		0.087 in	0.087 in	2.21 mm	2.21 mm	6500 K	SMD	2-SMD No Lead			Surface Mount	140 °	80	2 A	Cool White	2.78 V	0.54 mm	0.021 "
Seoul Semiconductor Inc. S1W0-2835358003-0000003S-0P002	30 °C/W		159 lm/W		0.11 "	0.13 "	3.3 mm	2.8 mm	3500 K	3528	1411	0.9 mm		Surface Mount	120 °	80	180 mA	Warm White	2.95 V			3-Step MacAdam Ellipse		0.035 in	30 lm	65 mA	3528 Metric
