H2181 Series
Manufacturer: Harwin Inc.
Beta
⌘K

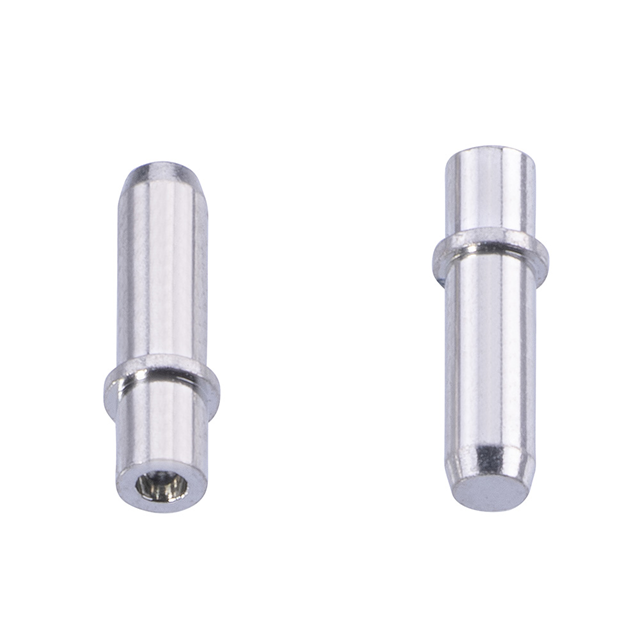

PCB TEST POINT, PCB MOUNT, 1.9 MM, BRASS, GOLD PLATED CONTACTS
| Part | Length - Overall [x] | Length - Overall | Contact Finish | Length - Below Flange [x] | Length - Below Flange [x] | Mounting Type | Mounting Hole Diameter [Max] | Mounting Hole Diameter [Min] | Mounting Hole Diameter [Min] | Mounting Hole Diameter [Max] | Pin Size - Below Flange [diameter] | Pin Size - Below Flange [diameter] | Length - Above Flange [x] | Length - Above Flange [x] | Termination | Pin Size - Above Flange [diameter] | Pin Size - Above Flange | Terminal Style | Contact Material | Board Thickness | Board Thickness | Terminal Type | Insulation | Flange Diameter [diameter] | Flange Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Harwin Inc. | 0.289 in | 7.35 mm | Gold | 1.95 mm | 0.077 " | Through Hole | 0.075 " | 0.071 " | 1.8 mm | 1.9 mm | 0.07 " | 1.78 mm | 5 mm | 0.197 in | Swage | 0.07 in | 1.78 mm | Single End | Brass | 0.063 in | 1.6 mm | PC Pin | Non-Insulated | 0.089 " | 2.25 mm |
 Harwin Inc. | 0.289 in | 7.35 mm | Tin | 1.95 mm | 0.077 " | Through Hole | 0.075 " | 0.071 " | 1.8 mm | 1.9 mm | 0.07 " | 1.78 mm | 5 mm | 0.197 in | Swage | 0.07 in | 1.78 mm | Single End | Brass | 0.063 in | 1.6 mm | PC Pin | Non-Insulated | 0.089 " | 2.25 mm |
