H2184 Series
Manufacturer: Harwin Inc.
Beta
⌘K
CONN PC PIN 1.75MM DIA TIN 15.3M
| Part | Flange Diameter [diameter] | Flange Diameter [diameter] | Length - Above Flange [x] | Length - Above Flange | Contact Finish | Insulation | Pin Size - Below Flange [diameter] | Pin Size - Below Flange [diameter] | Terminal Type | Termination | Mounting Type | Board Thickness | Board Thickness | Contact Material | Terminal Style | Mounting Hole Diameter [Max] | Mounting Hole Diameter [Min] | Mounting Hole Diameter [Min] | Mounting Hole Diameter [Max] | Pin Size - Above Flange [diameter] | Pin Size - Above Flange | Length - Below Flange [x] | Length - Below Flange [x] | Length - Overall [x] | Length - Overall [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

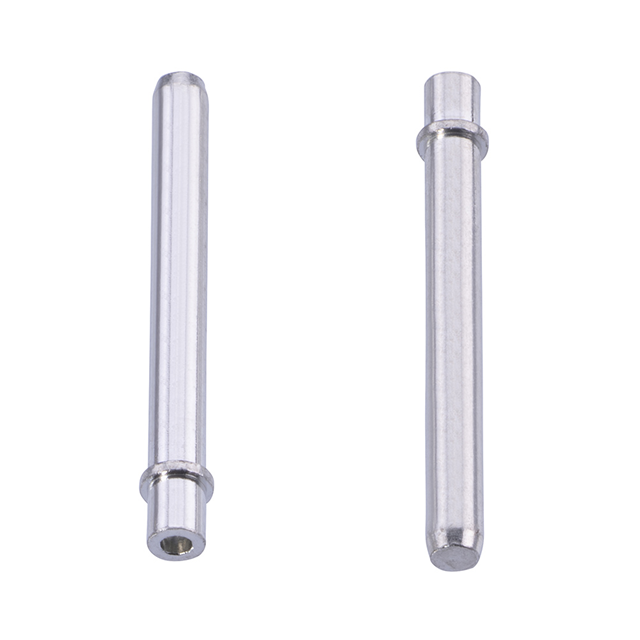

 Harwin Inc. | 0.089 " | 2.25 mm | 0.602 in | 15.3 mm | Tin | Non-Insulated | 0.07 " | 1.78 mm | PC Pin | Swage | Through Hole | 0.063 in | 1.6 mm | Brass | Single End | 0.075 " | 0.071 " | 1.8 mm | 1.9 mm | 0.07 in | 1.78 mm | 1.95 mm | 0.077 " | 0.695 in | 17.65 mm |

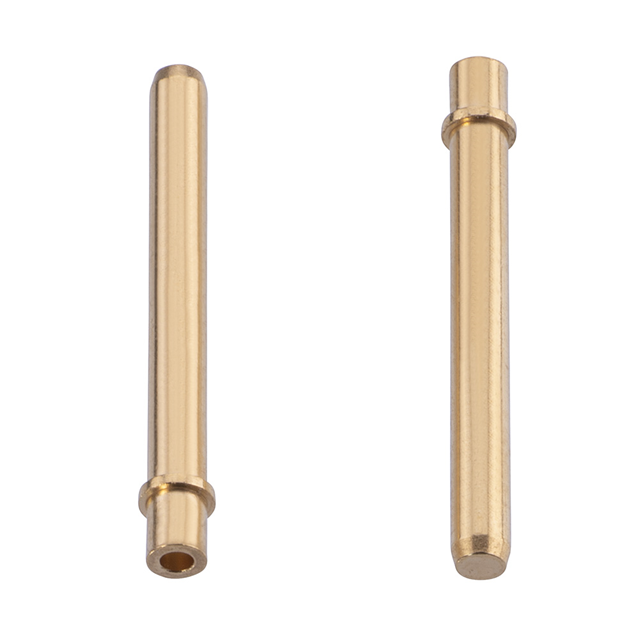

 Harwin Inc. | 0.089 " | 2.25 mm | 0.602 in | 15.3 mm | Gold | Non-Insulated | 0.07 " | 1.78 mm | PC Pin | Swage | Through Hole | 0.063 in | 1.6 mm | Brass | Single End | 0.075 " | 0.071 " | 1.8 mm | 1.9 mm | 0.07 in | 1.78 mm | 1.95 mm | 0.077 " | 0.695 in | 17.65 mm |
