C5503AL Series
Manufacturer: BULGIN LIMITED
Beta
⌘K

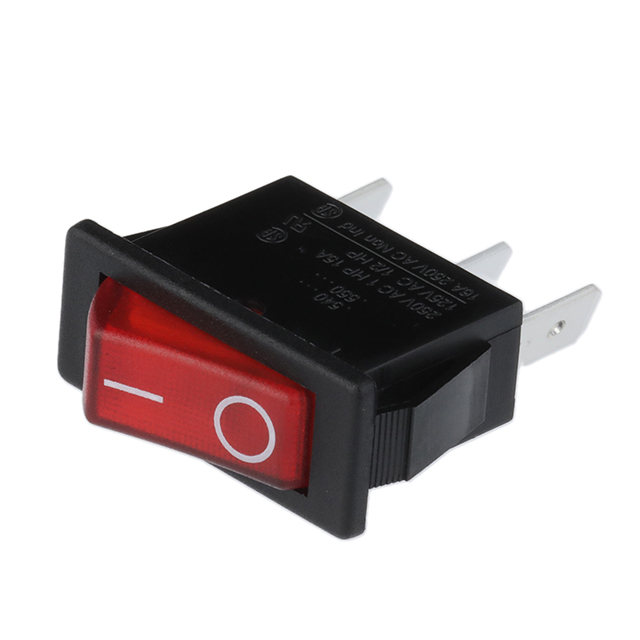

ROCKER SWITCHES SPST ROCKER SWITCH, LIT 110V RED W/COVER
| Part | Actuator Marking | Switch Function | Approval Agency | Current Rating (Amps) | Illumination Type, Color | Features | Actuator Type | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Termination Style | Voltage Rating - AC | Color - Actuator/Cap | Illumination Voltage (Nominal) | Mounting Type | Circuit | Illumination Type, Color [custom] | Illumination Type, Color [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 BULGIN LIMITED | No Marking | On-Off | CSA UL | 16 A | Neon Red | Protective Cover | Concave (Curved) - Illuminated | 30.1 mm | 11.1 mm | Quick Connect - 0.250" (6.3mm) | 250 V | Red | 125 VAC | Panel Mount Snap-In | SPST | ||
BULGIN LIMITED | O - | On-Off | CSA UL | 16 A | Concave (Curved) - Illuminated | 30.1 mm | 11.1 mm | Quick Connect - 0.250" (6.3mm) | 250 V | Green | 125 VAC | Panel Mount Snap-In | SPST | Neon | Green | ||
BULGIN LIMITED | |||||||||||||||||
BULGIN LIMITED | O - | On-Off | CSA UL | 16 A | Protective Cover | Concave (Curved) - Illuminated | 30.1 mm | 11.1 mm | Quick Connect - 0.250" (6.3mm) | 250 V | Green | 125 VAC | Panel Mount Snap-In | SPST | Neon | Green | |
BULGIN LIMITED | No Marking | On-Off | CSA UL | 16 A | Neon Red | Protective Cover | Concave (Curved) - Illuminated | 30.1 mm | 11.1 mm | Quick Connect - 0.250" (6.3mm) | 250 V | Red | 250 VAC | Panel Mount Snap-In | SPST | ||
 BULGIN LIMITED | O - | On-Off | CSA UL | 16 A | Neon Red | Concave (Curved) - Illuminated | 30.1 mm | 11.1 mm | Quick Connect - 0.250" (6.3mm) | 250 V | Red | 250 VAC | Panel Mount Snap-In | SPST |
