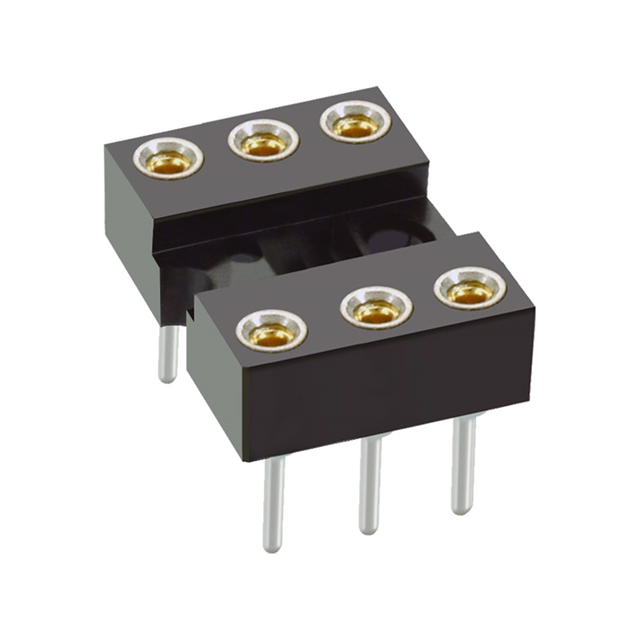

D2806 Series
Manufacturer: Harwin Inc.
Beta
⌘K
06 WAY 0.3" IC SKT ASSY ROHS COMPLIANT: YES
| Part | Contact Resistance | Current Rating (Amps) | Termination Post Length [x] | Termination Post Length [x] | Material Flammability Rating | Features | Type | Type | Type | Contact Material - Post [custom] | Contact Finish - Mating | Termination | Contact Finish Thickness - Mating | Contact Material - Mating | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Housing Material | Pitch - Mating | Pitch - Mating | Contact Finish - Post | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Pitch - Post | Pitch - Post | Number of Positions or Pins (Grid) [y] | Number of Positions or Pins (Grid) [x] | Number of Positions or Pins (Grid) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Harwin Inc. | 10 mOhm | 1 A | 3.2 mm | 0.126 in | UL94 V-0 | Open Frame | 7.62 mm | 0.3 in | DIP | Brass | Gold | Solder | Flash | Beryllium Copper | Through Hole | -55 C | 125 °C | Plastic | 0.1 " | 2.54 mm | Tin | 5 µm | 196.9 µin | 0.1 in | 2.54 mm | 3 positions or pins | 2 | 6 |
